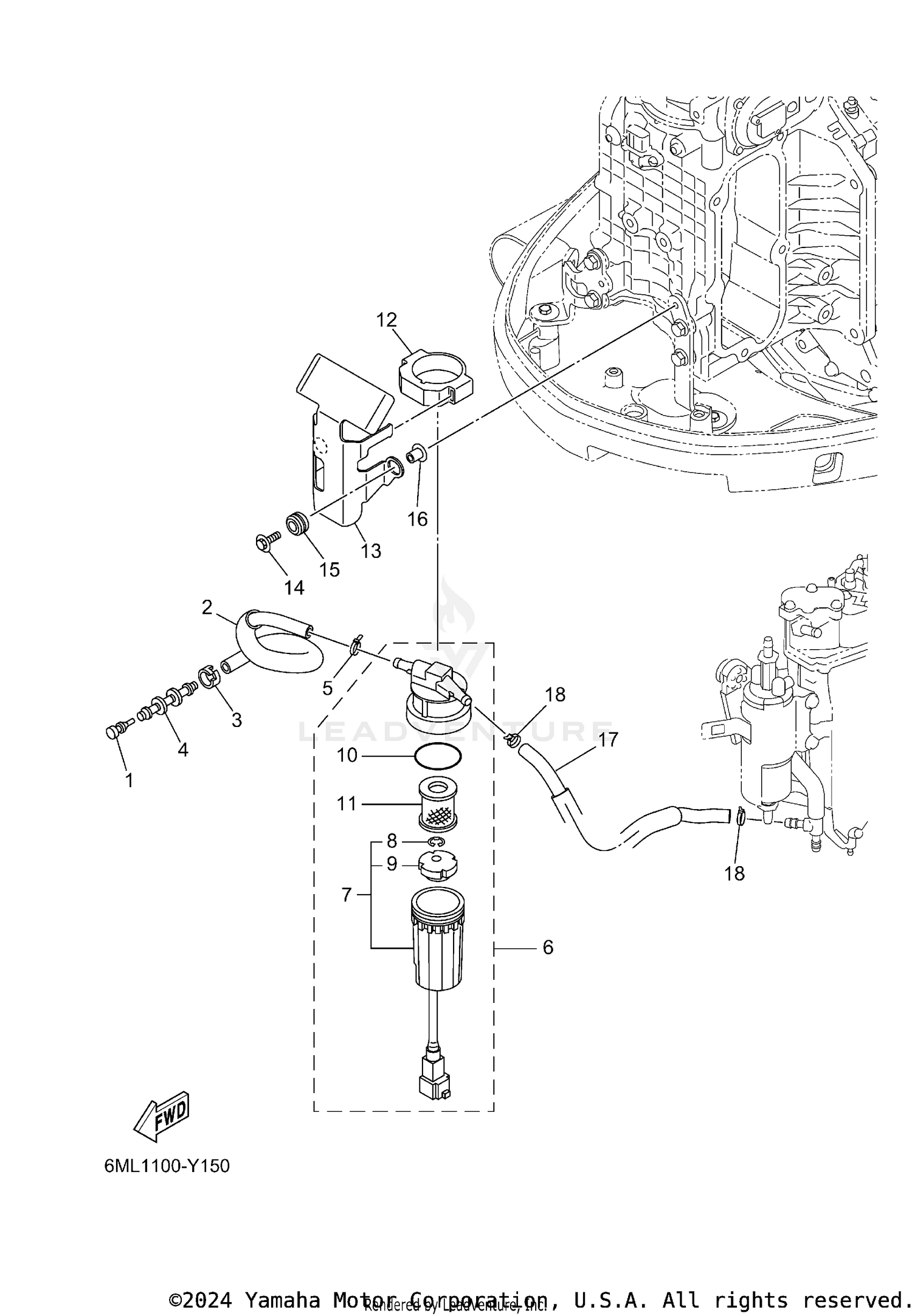

FUEL 1
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 689-85547-01-00 | DAMPER Price: $5.65 |
| 2 | 6ML-24314-00-00 | PIPE 4 Price: $73.45 |
| 3 | 6E5-24351-51-00 | BAND 1 Price: $10.40 |
| 4 | 6AW-24377-01-00 | PIPE, JOINT 2 Price: $24.50 |
| 5 | 90465-10098-00 | CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 6 | 6ML-24560-00-00 | FILTER ASSY Price: $230.55 |
| 7 | 6P3-WS24B-21-00 | CUP, FILTER (WITH TA This part replaces 6P3-24562-21-00. Price: $149.00 |
| 8 | 6P3-24519-00-00 | CLIP Price: $5.55 |
| 9 | 6P3-24469-00-00 | FLOAT, WATER LEVEL Price: $10.95 |
| 10 | 6P3-24564-00-00 | GASKET Price: $11.35 |
| 11 | 6P3-WS24A-02-00 | ELEMENT, FILTER (WITH TAG) This part replaces 6P3-24563-02-00. Price: $25.35 |
| 12 | 6ML-24568-00-00 | BAND, FILTER Price: $16.35 |
| 13 | 6ML-24566-00-00 | BRACKET, FILTER Price: $75.75 |
| 14 | 90119-06310-00 | BOLT, WITH WASHER Price: $2.15 |
| 15 | 90480-10M23-00 | GROMMET Price: $9.65 |
| 16 | 90387-06289-00 | COLLAR Price: $3.18 |
| 17 | 6ML-24313-00-00 | PIPE 3 Price: $71.85 |
