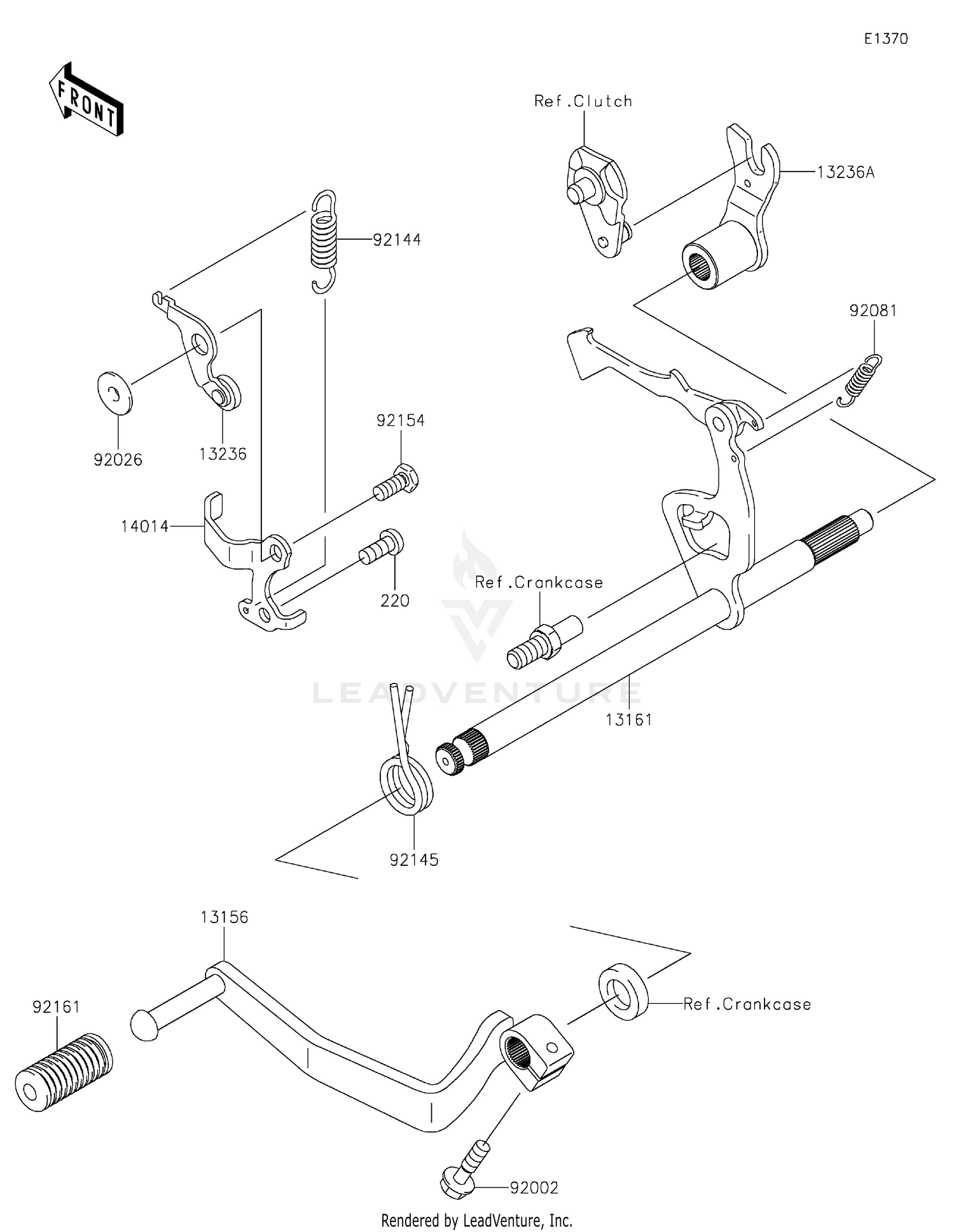

Gear Change Mechanism
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 13156 | 13156-0144 | LEVER-CHANGE Price: $31.77 |
| 13161 | 13161-0019 | LEVER-COMP-CHANGE SHAFT Price: $78.21 |
| 13236 | 13236-1256 | LEVER-COMP,POSITION Price: $9.21 |
| 13236A | 13236-0717 | LEVER-COMP This part replaces 13236-1288. Price: $8.55 |
| 14014 | 14014-0037 | PLATE-POSITION Price: $8.08 |
| 92002 | 92002-1237 | BOLT,6X20 Price: $4.31 |
| 92026 | 92026-0750 | SPACER Price: $5.52 |
| 92081 | 92081-076 | SPRING,CHANGE LEVER Price: $5.46 |
| 92144 | 92144-1590 | SPRING Price: $4.82 |
| 92145 | 92145-0757 | SPRING Price: $6.89 |
| 92154 | 92154-0788 | BOLT,6X14 Price: $1.19 |
| 92161 | 92161-2409 | DAMPER,CHANGE PEDAL Price: $5.00 |
