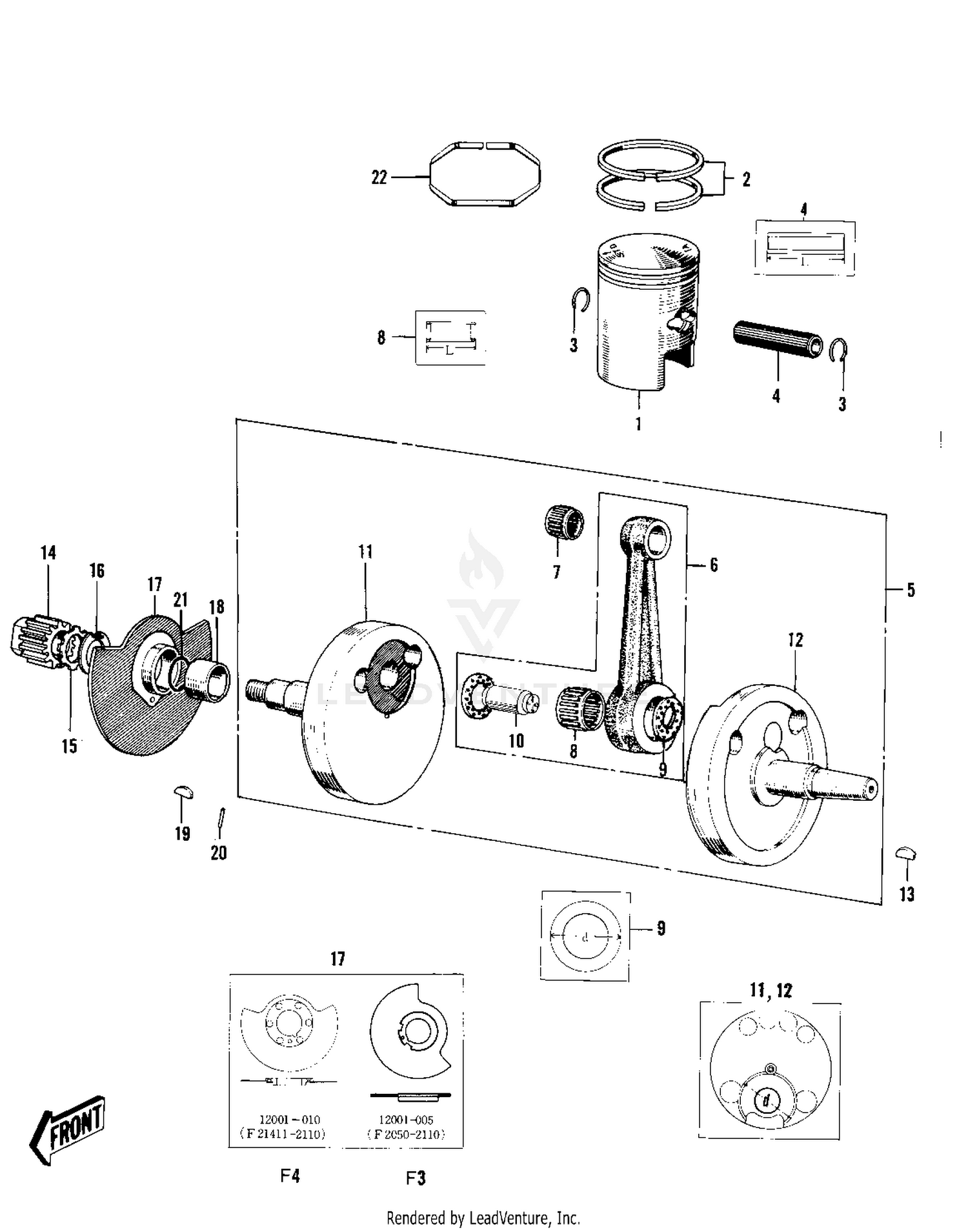

CRANKSHAFT/PISTON/ROTARY VALVE
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 13001-030 | PISTON STD Price: $54.22 |
| 1 | 13027-032 | PISTON 0.040' O.S Price: $54.22 |
| 1 | 13029-032 | PISTON 0.020' O.S Price: $54.22 |
| 2 | 13008-017 | RING SET STD Price: $29.74 |
| 2 | 13024-011 | RING SET 0.040' O.S Price: $29.74 |
| 2 | 13025-011 | RING SET 0.020' O.S Price: $33.46 |
| 3 | 92036-004 | CIRCLIP PISTON PIN Price: $0.65 |
| 4 | 13002-011 | PIN-PISTON Price: $23.30 |
| 5 | 13036-017 | CRANK - CONROD ASSY Price: $363.85 |
| 6 | 13044-005 | CONNECTING ROD SET Price: $99.51 |
| 7 | 92046-1038 | BEARING-NEEDLE Price: $25.59 |
| 8 | 13034-012 | NEEDLE BEARING BG END Price: $15.63 |
| 10 | 13035-012 | CRANK PIN Price: $23.22 |
| 11 | 13038-019 | CRANKSHAFT R.H Price: $117.09 |
| 12 | 13037-025 | CRANKSHAFT L.H Price: $117.42 |
| 13 | 92038-001 | KEY,WOODRUFF Price: $4.96 |
| 14 | 16084-003 | PINION OIL PUMP Price: $69.45 |
| 15 | 464H1200 | WASHER LOCK 12MM Price: $4.60 |
| 16 | 92024-002 | WASHER LOCK 12MM Price: $5.23 |
| 17 | 12001-010 | VALVE ROTARY DISC Price: $76.94 |
| 18 | 92027-017 | COLLAR CRANKSHAFT Price: $73.98 |
| 19 | 92038-003 | WOODRUFF KEY PRY PINI Price: $5.37 |
| 20 | 610A0412 | ROLLER,4X12 Price: $5.52 |
