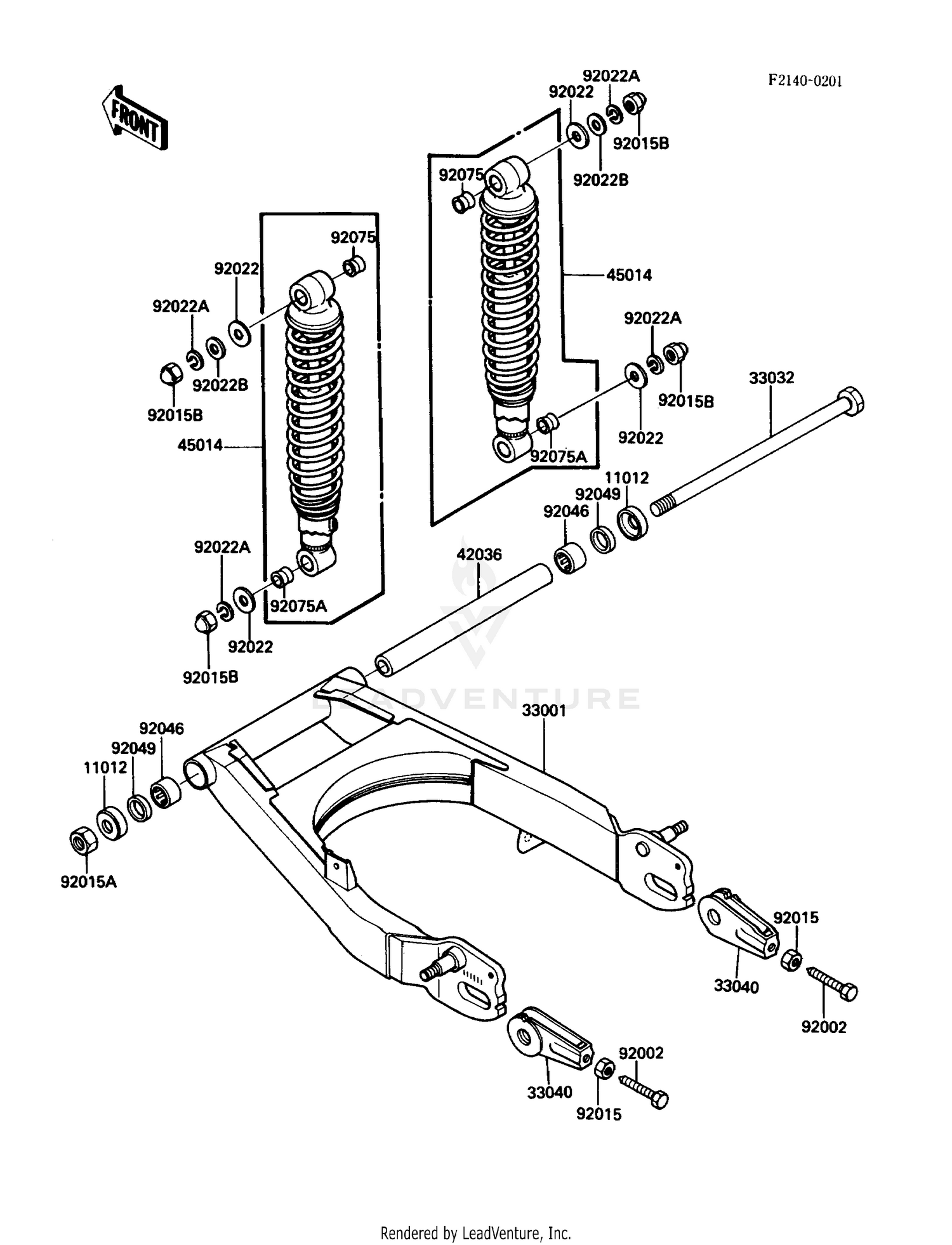

| Ref | Part Number | Description |
|---|
| 11012 |
11012-1029 |
CAP,SWING ARM Price: $20.99 |
| 33001 |
33001-1235 |
ARM-COMP-SWING Price: $256.72 |
| 33032 |
33032-1113 |
SHAFT-SWING ARM Price: $55.44 |
| 33040 |
33040-1004 |
ADJUSTER-CHAIN This part replaces 33040-043. Price: $28.47 |
| 42036 |
42036-1018 |
SLEEVE,SWING ARM Price: $52.33 |
| 45014 |
45014-1314 |
SHOCKABSORBER This part replaces 45014-1305. Price: $365.75 |
| 92002 |
92002-1076 |
BOLT,8X50 Price: $9.48 |
| 92015 |
92015-1364 |
NUT,8MM Price: $3.92 |
| 92015A |
92015-1411 |
NUT,14MM Price: $10.02 |
| 92015B |
92020-003 |
NUT,CAP,10MM Price: $6.52 |
| 92022 |
92022-044 |
WASHER,10.5X26X2.3 Price: $3.92 |
| 92022A |
92022-1540 |
WASHER,SPRING,10MM Price: $4.11 |
| 92022B |
92022-1558 |
WASHER,10.5X22X1.6 Price: $4.38 |
| 92046 |
92046-1115 |
BEARING-NEEDLE,HK2216 Price: $20.02 |
| 92049 |
92049-1059 |
OIL SEAL,MHA22284 Price: $11.00 |
| 92075 |
45017-015 |
BUSHING,SHCK ABS RUB Price: $10.00 |
