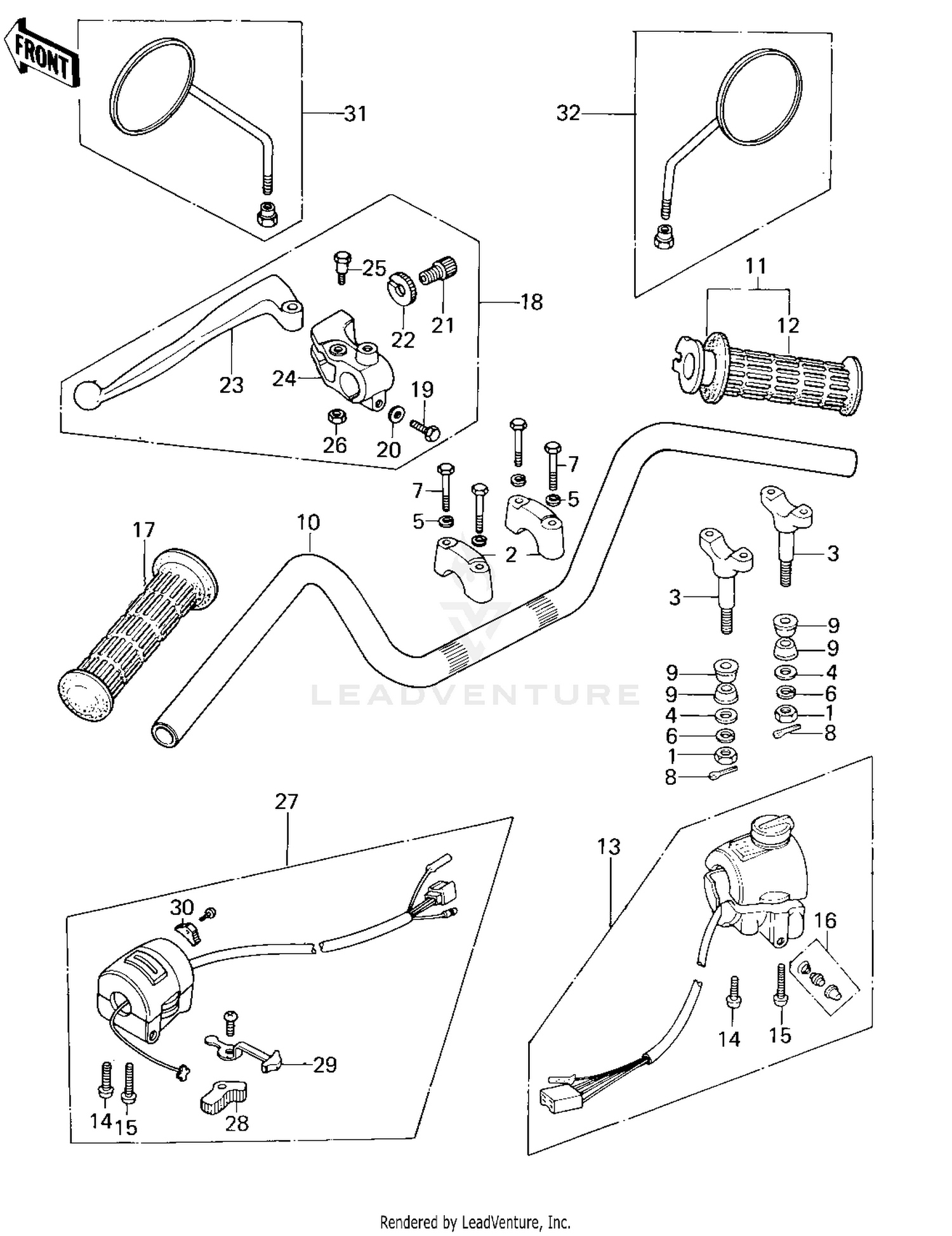

| Ref | Part Number | Description |
|---|
| 1 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 2 |
46012-008 |
HOLDER-HANDLEBAR Price: $37.74 |
| 3 |
46012-010 |
HOLDER-HANDLEBAR LOW Price: $30.76 |
| 4 |
46016-003 |
CAP HANDLEBAR HOLDER Price: $6.74 |
| 5 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 6 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 7 |
92001-1405 |
BOLT 8X38 Price: $16.50 |
| 8 |
554DA0800 |
PIN-SNAP This part replaces 554A0800. Price: $1.36 |
| 9 |
92075-039 |
DAMPER,HANDLE HOLDER Price: $4.69 |
| 10 |
46003-1045 |
HANDLEBAR Price: $211.20 |
| 11 |
46019-038 |
GRIP ASSY,THROTTLE Price: $118.44 |
| 12 |
46061-018 |
RUBBER,R.H GRIP Price: $14.69 |
| 13 |
46091-1039 |
HOUSING ASSY,R.H Price: $123.20 |
| 14 |
220AA0530 |
SCREW-PAN-CROS This part replaces 220B0530. Price: $3.70 |
| 15 |
220AA0535 |
SCREW-PAN-CROS This part replaces 220B0535. Price: $3.70 |
| 16 |
27010-1009 |
SWITCH ASSY,HORN BUTN Price: $9.20 |
| 17 |
46075-028 |
RUBBER,L.H GRIP Price: $39.98 |
| 18 |
46076-054 |
LEVER ASSY,CLUTCH This part replaces 46076-052. Price: $102.73 |
| 19 |
112N0625 |
BOLT-UPSET This part replaces 110N0625. Price: $5.86 |
| 20 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 21 |
46055-003 |
SCREW,CABLE ADJUST,8MM Price: $16.33 |
| 22 |
46056-007 |
NUT,CABLE ADUST NUT Price: $14.26 |
| 23 |
46092-023 |
LEVER,CLUTCH Price: $35.96 |
| 24 |
46094-017 |
HOLDER,CLUTCH LEVER Price: $40.17 |
| 25 |
92007-047 |
BOLT,HEX HEAD Price: $13.77 |
| 26 |
92019-008 |
NUT,LOCK,6MM Price: $4.26 |
| 27 |
46091-1079 |
HOUSING ASSY,CONT,L.H Price: $217.23 |
| 28 |
46028-006 |
BUTTON, HORN PUSH Price: $29.74 |
| 29 |
46043-005 |
KNOB,LIGHTING SW L.H Price: $12.53 |
| 30 |
46044-013 |
KNOB,LIGHTING SW L.H Price: $12.37 |
| 31 |
56001-1007 |
REAR VIEW MIRROR,L.H. Price: $58.31 |
