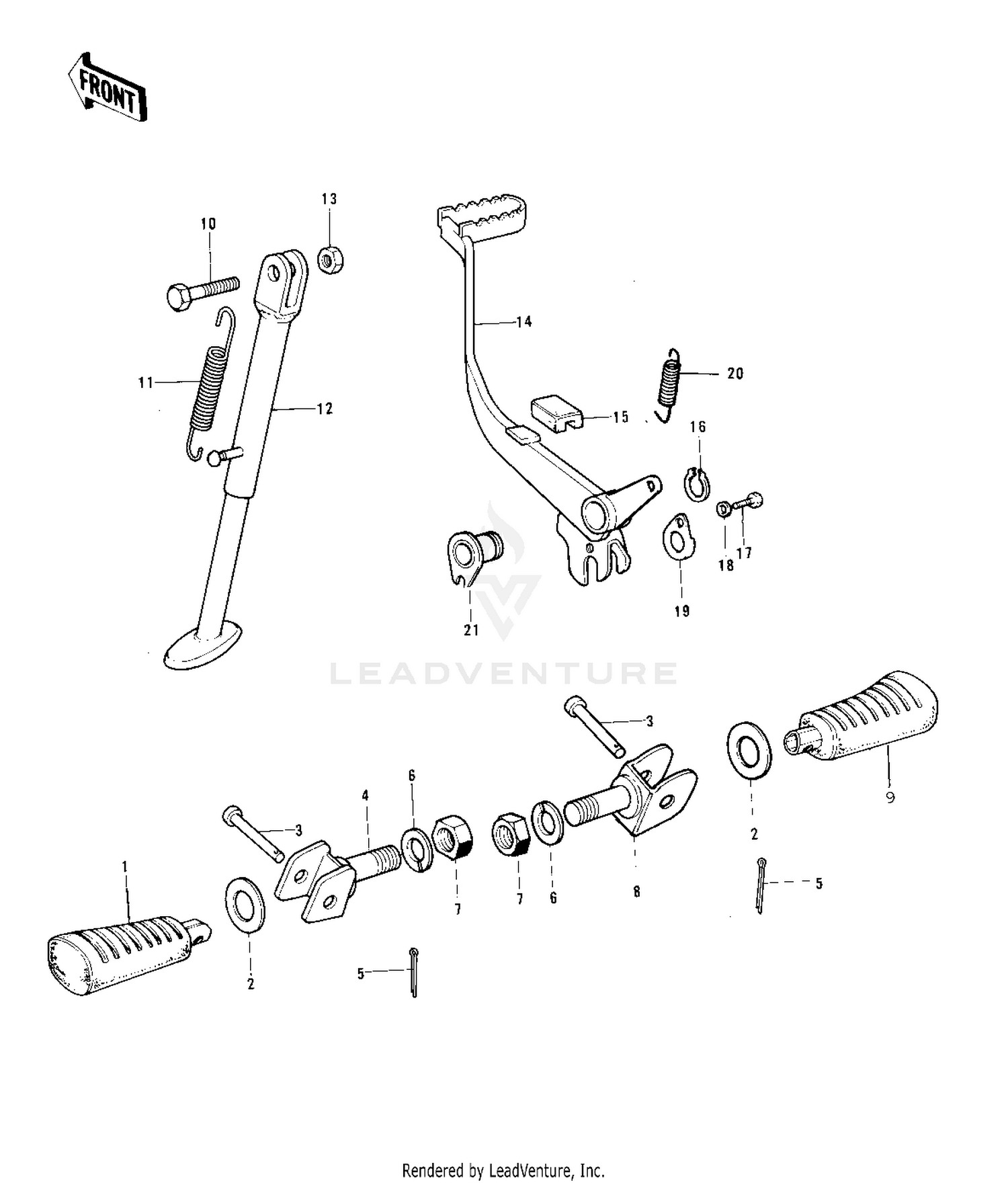

| Ref | Part Number | Description |
|---|
| 1 |
220AA0508 |
SCREW-PAN-CROS,5X8 This part replaces 220B0508. Price: $0.47 |
| 1 |
34027-1114 |
STEP-ASSY,FR,LH Price: $35.42 |
| 2 |
92022-250 |
WASHER,25X36X2.3 Price: $5.00 |
| 3 |
92043-080 |
PIN,8X31 Price: $5.52 |
| 4 |
34003-051 |
BRACKET,FOTRST BAR,LH Price: $52.16 |
| 5 |
550D2516 |
PIN COTTER 2.5X16 Price: $2.79 |
| 6 |
461F1400 |
WASHER SPRING 14MM Price: $0.43 |
| 7 |
314AA1400 |
NUT,14MM This part replaces 314B1400. Price: $1.18 |
| 8 |
34003-052 |
BRACKET,FOTRST BAR,RH Price: $52.23 |
| 9 |
34027-1115 |
STEP-ASSY,FR,RH Price: $42.54 |
| 10 |
92001-1252 |
BOLT,HEX HEAD 10X35 Price: $7.65 |
| 11 |
34025-008 |
SPRING,SIDE STAND Price: $7.55 |
| 12 |
34024-1043 |
STAND-SIDE Price: $59.54 |
| 13 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 14 |
43001-058 |
PEDAL,BRAKE Price: $107.83 |
| 15 |
92075-220 |
DAMPER RUBBER,BK PDL Price: $5.45 |
| 16 |
480J2200 |
CIRCLIP-TYPE-C,22MM Price: $5.00 |
| 18 |
461DA0500 |
WASHER-SPRING,5MM This part replaces 461F0500. Price: $0.71 |
| 19 |
43081-002 |
PLATE Price: $5.45 |
| 20 |
43005-032 |
SPRING BRAKE PEDAL Price: $8.44 |
