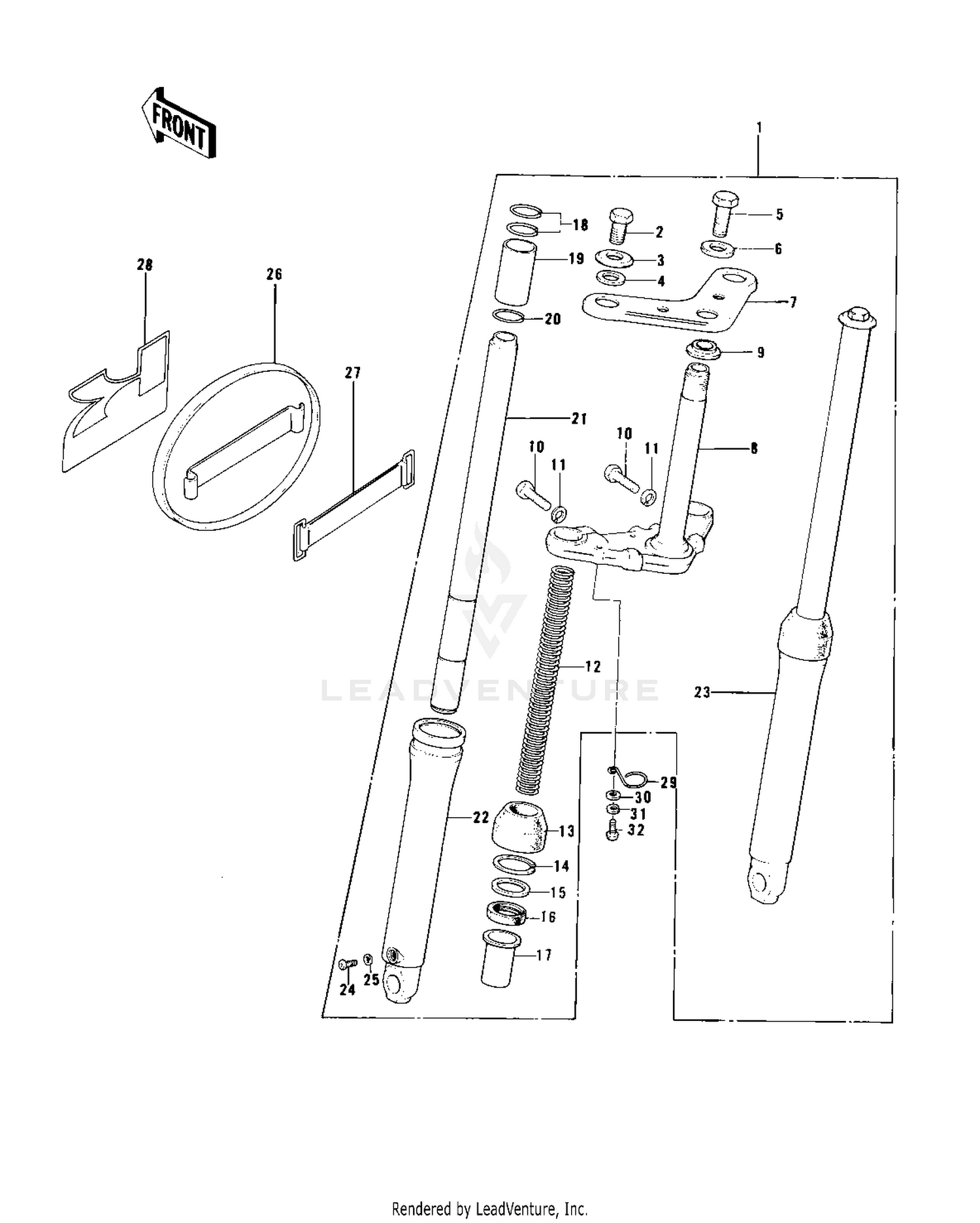

| Ref | Part Number | Description |
|---|
| 1 |
44001-161 |
FORK-FRONT Price: $633.64 |
| 2 |
92001-1742 |
BOLT Price: $19.67 |
| 3 |
92022-1381 |
WASHER Price: $9.44 |
| 4 |
44045-053 |
GASKET,FORK TOP BOLT Price: $6.80 |
| 5 |
92001-1252 |
BOLT,HEX HEAD 10X35 Price: $7.65 |
| 6 |
92022-1381 |
WASHER Price: $9.44 |
| 7 |
44039-056 |
HEAD,STEERING Price: $39.00 |
| 8 |
44037-069 |
STEM,STEERING Price: $220.51 |
| 9 |
92047-004 |
CONE LOWER BEARING Price: $16.97 |
| 10 |
92001-1252 |
BOLT,HEX HEAD 10X35 Price: $7.65 |
| 11 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 12 |
44026-051 |
SPRING,FORK INNER Price: $8.16 |
| 13 |
92093-1059 |
SEAL,OUTER TUBE This part replaces 44010-024. Price: $15.77 |
| 14 |
44044-016 |
CIRCLIP,40MM Price: $9.28 |
| 15 |
44043-054 |
WASHER,FORK OUTER TUB Price: $5.45 |
| 16 |
92049-1075 |
SEAL-OIL,OUTER TUBE Price: $17.58 |
| 17 |
44015-016 |
GUIDE,FORK INNER TUBE Price: $19.49 |
| 18 |
44020-003 |
RING,INNER TUBE GUIDE Price: $3.25 |
| 19 |
44018-007 |
PISTON,FORK Price: $14.85 |
| 20 |
44044-017 |
CIRCLIP,FORK PISTON Price: $4.05 |
| 21 |
44013-051 |
TUBE,FORK INNER Price: $75.68 |
| 22 |
44005-052 |
TUBE,LH,FORK OUTER Price: $96.45 |
| 23 |
44006-050 |
TUBE,RH,FORK OUTER Price: $103.92 |
| 24 |
220AA0406 |
SCREW-PAN CROS,4X6 This part replaces 220B0406. Price: $1.67 |
| 25 |
44045-046 |
GASKET,FORK DRAIN PLG Price: $7.51 |
| 26 |
58029-025 |
PLATE,FRONT NUMBER Price: $32.51 |
| 27 |
92072-006 |
BAND BATTERY Price: $12.76 |
| 29 |
92037-046 |
CLAMP-CABLE Price: $4.97 |
| 30 |
411AA0600 |
WASHER-PLAIN,6MM This part replaces 411B0600. Price: $2.92 |
| 31 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
