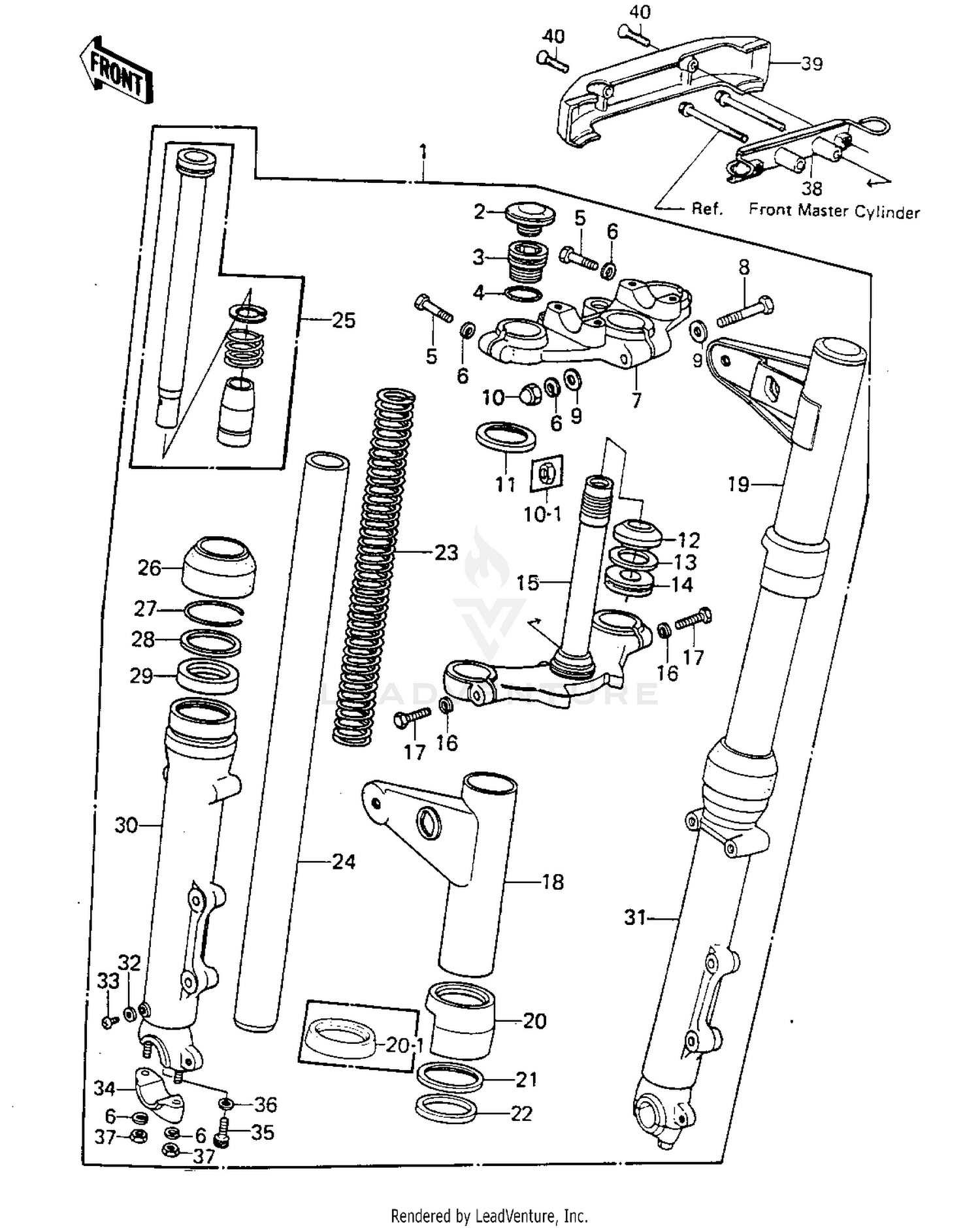

| Ref | Part Number | Description |
|---|
| 2 |
11012-1017 |
CAP,RUBBER Price: $11.49 |
| 3 |
44029-1003 |
CAP,FORK SPRING Price: $60.72 |
| 4 |
92055-1009 |
O RING,FORK TOP Price: $7.55 |
| 5 |
44041-045 |
BOLT-HEX HEAD.8M/M Price: $25.59 |
| 6 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 7 |
44039-073 |
HEAD,STEERING Price: $176.43 |
| 8 |
44041-038 |
BOLT-HEX HEAD,8X55 Price: $9.41 |
| 8 |
44041-042 |
BOLT-STEERING STEM HD Price: $5.13 |
| 10 |
92020-007 |
NUT FUEL TANK FRONT Price: $7.63 |
| 11 |
44064-005 |
WASHER,FORK COVER Price: $18.63 |
| 12 |
92048-0033 |
RACE,STEERING STEM BEARING This part replaces 92047-012. Price: $14.60 |
| 13 |
92022-231 |
WASHER,30.5X50X0.6 Price: $4.69 |
| 14 |
92056-003 |
SEAL-OIL,STEERING STEM Price: $8.86 |
| 16 |
461DA1200 |
WASHER-SPRING,12MM This part replaces 461F1200. Price: $1.03 |
| 17 |
92003-064 |
BOLT-HEX HEAD,12X36 Price: $25.59 |
| 21 |
44064-008 |
WASHER,FORK COU GUID Price: $11.66 |
| 22 |
44045-038 |
GASKET,FORK COVER Price: $5.78 |
| 23 |
44026-1026 |
SPRING,FORK Price: $78.07 |
| 24 |
44013-1003 |
TUBE,FORK INNER Price: $557.67 |
| 25 |
44022-1011 |
CYLINDER-FORK Price: $83.76 |
| 26 |
44010-032 |
DUST SHEILD,FORK Price: $39.46 |
| 27 |
44044-012 |
CIRCLIP-OIL SEAL FIT Price: $29.65 |
| 28 |
44043-044 |
WASHER-OIL SEAL FIT Price: $13.51 |
| 29 |
92049-1216 |
SEAL-OIL,FORK OUTER P This part replaces 44009-024. Price: $23.21 |
| 32 |
44045-002 |
GASKET,FORK DRAIN PLUG Price: $5.18 |
| 33 |
220AA0408 |
SCREW-PAN-CROS,4X8 This part replaces 220B0408. Price: $0.68 |
| 34 |
44063-1004 |
HOLDER,FRONT AXLE Price: $34.10 |
| 35 |
44041-040 |
BOLT,SOCKET,FORK CYLINDER Price: $6.57 |
| 36 |
44045-057 |
GASKET,FORK CYLINDER Price: $4.86 |
| 37 |
92015-1124 |
NUT,LOCK,8MM Price: $5.42 |
