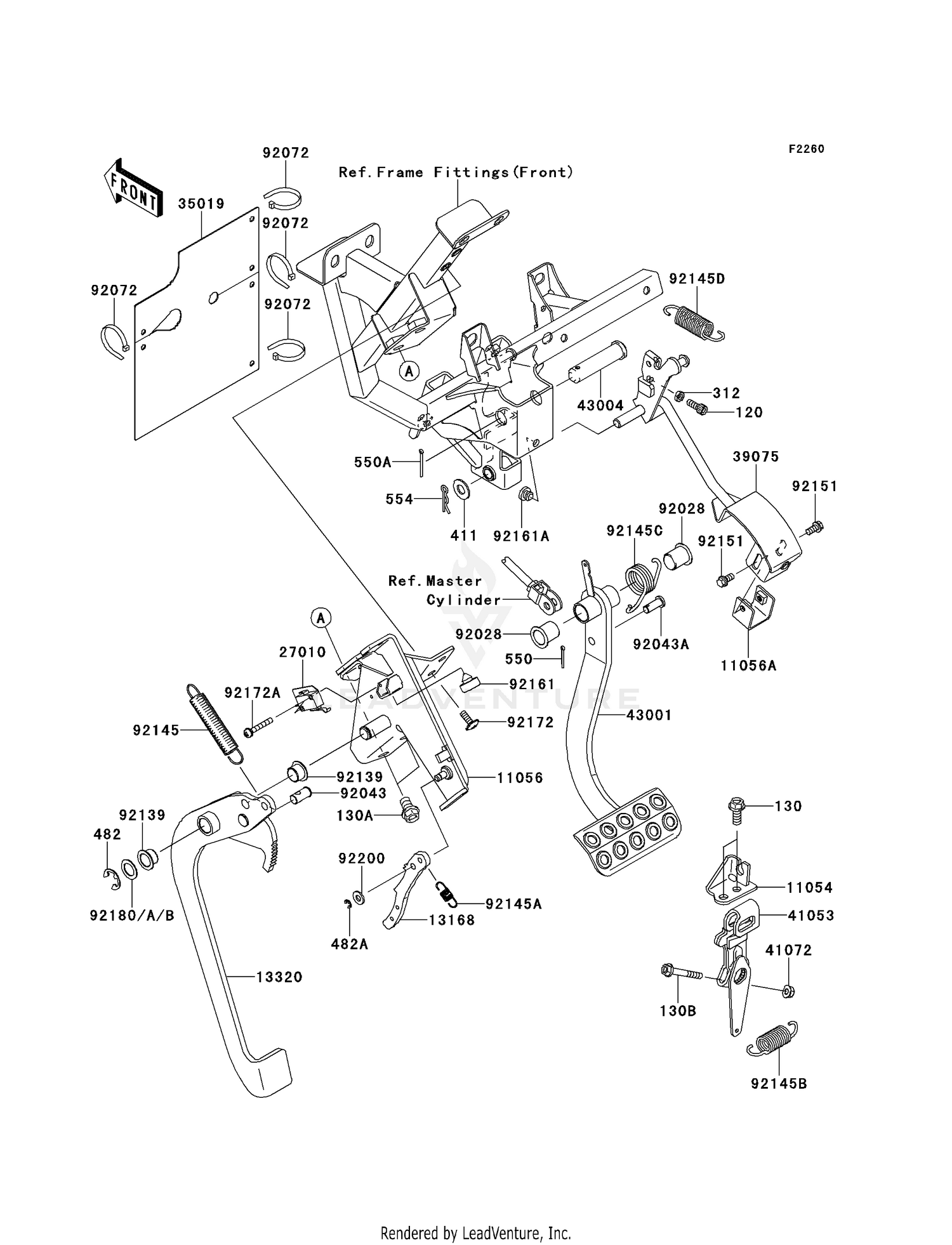

| Ref | Part Number | Description |
|---|
| 120 |
120CA0616 |
BOLT-SOCKET,6X16 Price: $2.49 |
| 130 |
130BA0820 |
BOLT-FLANGED,8X20 Price: $4.14 |
| 130A |
130BA1016 |
BOLT-FLANGED,10X16 Price: $4.76 |
| 130B |
130CA0640 |
BOLT-FLANGED,6X40 Price: $2.80 |
| 312 |
312BA0600 |
NUT-HEX,6MM Price: $1.52 |
| 411 |
411AA1000 |
WASHER-PLAIN,10MM Price: $0.96 |
| 482 |
482J0100 |
CIRCLIP-TYPE-E,10MM Price: $0.73 |
| 482A |
482K4000 |
CIRCLIP SELD BEM FIT This part replaces 482J4000. Price: $1.35 |
| 550 |
550AA2518 |
PIN-COTTER,2.5X18 Price: $0.59 |
| 550A |
550AA2525 |
PIN-COTTER,2.5X25 Price: $1.36 |
| 11054 |
11054-0933 |
BRACKET,BRAKE CABLE Price: $4.86 |
| 11056 |
11056-0007 |
BRACKET,BRAKE LEVER Price: $141.04 |
| 11056A |
11056-0054 |
BRACKET Price: $7.15 |
| 13168 |
13168-0906 |
LEVER This part replaces 13168-0174. Price: $29.08 |
| 13320 |
13320-0025 |
LEVER-ASSY,BRAKE PEDA Price: $76.07 |
| 27010 |
27010-0084 |
SWITCH Price: $33.04 |
| 35019 |
35019-0079 |
FLAP Price: $11.54 |
| 39075 |
39075-0015 |
LEVER-THROTTLE Price: $34.96 |
| 41053 |
41053-0010 |
LEVER-BRAKE CAM Price: $55.74 |
| 41072 |
41072-007 |
NUT,6MM Price: $3.92 |
| 43001 |
43001-0103 |
LEVER-BRAKE,PEDAL Price: $42.99 |
| 43004 |
43004-1128 |
SHAFT-BRAKE Price: $17.76 |
| 92028 |
92028-1571 |
BUSHING Price: $10.67 |
| 92043 |
92043-0124 |
PIN Price: $8.03 |
| 92043A |
92043-1039 |
PIN Price: $9.91 |
| 92072 |
92072-1239 |
BAND,L=188 Price: $1.73 |
| 92139 |
92139-0182 |
BUSHING Price: $4.05 |
| 92145 |
92145-0446 |
SPRING Price: $8.05 |
| 92145A |
92145-0447 |
SPRING Price: $4.81 |
| 92145B |
92145-0563 |
SPRING Price: $4.05 |
| 92145C |
92145-0575 |
SPRING,BRAKE PEDAL RE Price: $8.05 |
| 92145D |
92145-0636 |
SPRING Price: $10.43 |
| 92151 |
92151-1997 |
BOLT,6X12 Price: $1.54 |
| 92161 |
92161-0590 |
DAMPER Price: $3.90 |
| 92161A |
92161-1084 |
DAMPER Price: $2.67 |
| 92172 |
92172-0236 |
SCREW,6X16 Price: $0.85 |
| 92172A |
92172-0419 |
SCREW,3X20 Price: $2.21 |
| 92180 |
92180-0279 |
SHIM,T=0.8 Price: $4.09 |
| 92180A |
92180-0281 |
SHIM,T=1.0 Price: $4.09 |
| 92180B |
92180-0282 |
SHIM,T=1.2 Price: $4.09 |
| 92200 |
92200-3775 |
WASHER,6.5X14.5X1.5 Price: $1.74 |
