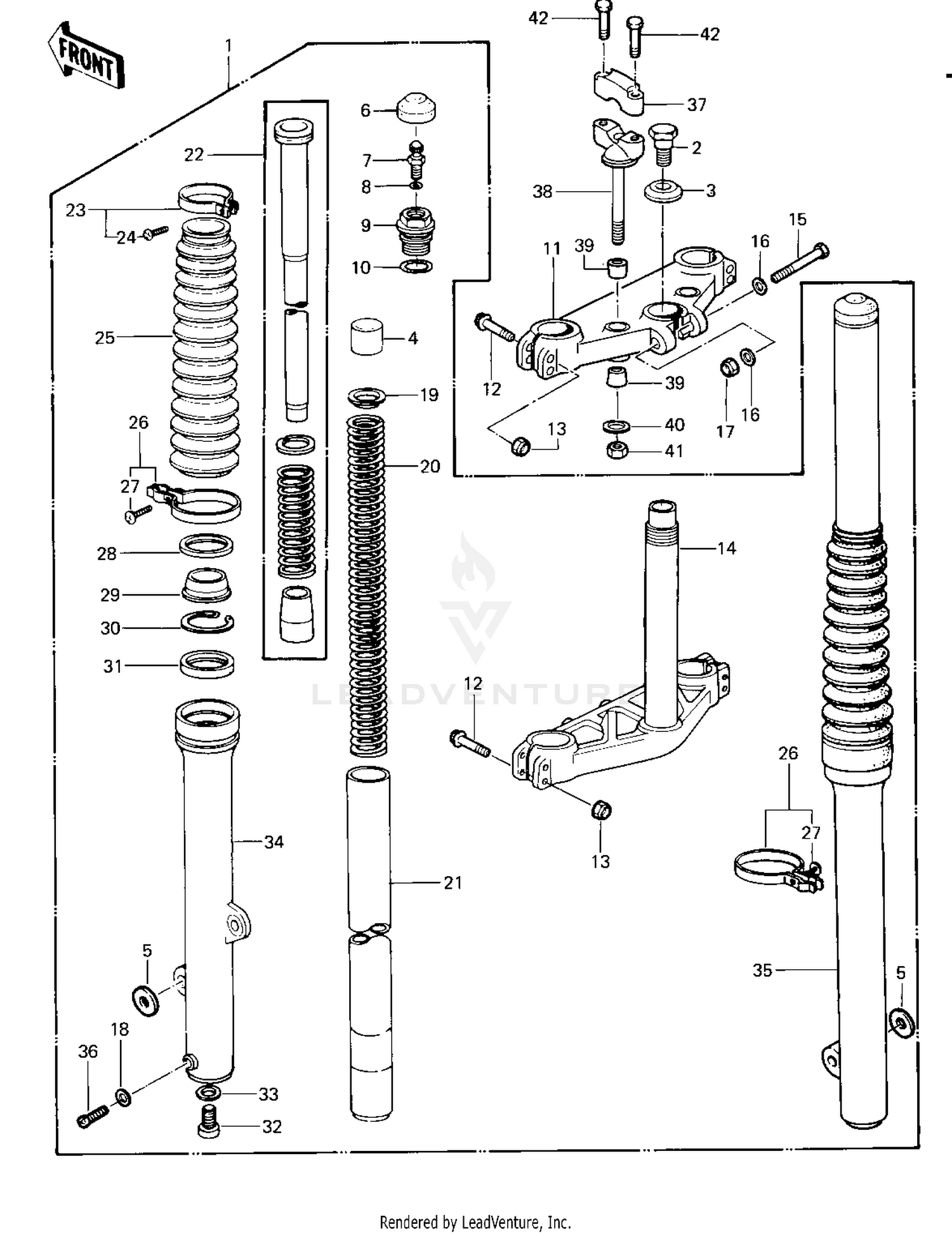

| Ref | Part Number | Description |
|---|
| 1 |
44001-4001 |
FORK-FRONT Price: $968.36 |
| 2 |
44041-065 |
BOLT,FORK TOP Price: $27.12 |
| 3 |
44043-052 |
WASHER Price: $8.01 |
| 4 |
92026-4002 |
SPACER,FORK SPRING Price: $5.88 |
| 5 |
92022-4006 |
WASHER,FORK Price: $2.42 |
| 6 |
44029-1009 |
CAP,RUBBER,FORK TOP Price: $10.50 |
| 7 |
16126-1003 |
VALVE ASSY,AIR Price: $41.71 |
| 9 |
44029-1008 |
CAP,FORK TOP Price: $52.55 |
| 11 |
44039-4004 |
HEAD,STEERING STEM Price: $91.95 |
| 12 |
92001-1060 |
BOLT,HEX HEAD,8X53 Price: $3.45 |
| 13 |
44007-1002 |
NUT,8M/M Price: $3.57 |
| 14 |
44037-1066 |
HOLDER-FORK UNDER Price: $484.61 |
| 15 |
92001-1141 |
BOLT,HEX HEAD,8X57 Price: $3.45 |
| 16 |
410AA0800 |
WASHER-PLAIN-SMALL,8MM This part replaces 410B0800. Price: $0.96 |
| 17 |
92015-1124 |
NUT,LOCK,8MM Price: $5.42 |
| 18 |
44045-002 |
GASKET,FORK DRAIN PLUG Price: $5.18 |
| 19 |
44028-1003 |
GUIDE-FORK SPRING Price: $11.28 |
| 20 |
44026-4001 |
SPRING,FORK INNER Price: $48.79 |
| 21 |
44013-4001 |
TUBE,FORK INNER Price: $248.94 |
| 22 |
44022-4001 |
CYLINDER-FORK Price: $82.25 |
| 23 |
92072-1168 |
BAND,BOOT This part replaces 92072-1008. Price: $10.93 |
| 24 |
220AA0420 |
SCREW-PAN-CROS,4X20 This part replaces 220B0420. Price: $2.67 |
| 25 |
49006-4002 |
BOOT,FORK Price: $51.51 |
| 26 |
92072-1026 |
CLAMP,BOOT,L.H Price: $12.85 |
| 27 |
220AA0620 |
SCREW-PAN-CROS,6X20 This part replaces 220B0620. Price: $5.82 |
| 28 |
32099-1010 |
CASE,DUST SHIELD Price: $12.79 |
| 29 |
92093-1022 |
DUST SHIELD,FORK OU T Price: $13.12 |
| 30 |
92033-1035 |
SNAP RING,FORK OUT TU Price: $4.42 |
| 31 |
92049-1042 |
OIL SEAL,FORK OUT TUB Price: $26.55 |
| 32 |
92001-1186 |
BOLT,FORK CYLINDER Price: $3.40 |
| 33 |
11009-1127 |
GASKET,FORK CYLINDER BOLT Price: $5.18 |
| 34 |
44005-4001 |
TUBE,LH,FORK OUTER Price: $158.87 |
| 35 |
44006-4001 |
TUBE,RH,FORK OUTER Price: $167.79 |
| 36 |
220AA0408 |
SCREW-PAN-CROS,4X8 This part replaces 220B0408. Price: $0.68 |
| 37 |
46012-008 |
HOLDER-HANDLEBAR Price: $37.74 |
| 38 |
46012-010 |
HOLDER-HANDLEBAR LOW Price: $30.76 |
| 39 |
92075-275 |
DAMPER RUBBER,HANDLE Price: $11.03 |
| 40 |
92022-196 |
WASHER-HANDLEBAR FIT Price: $4.63 |
| 41 |
92210-1184 |
NUT,LOCK,10MM This part replaces 92019-021. Price: $6.11 |
