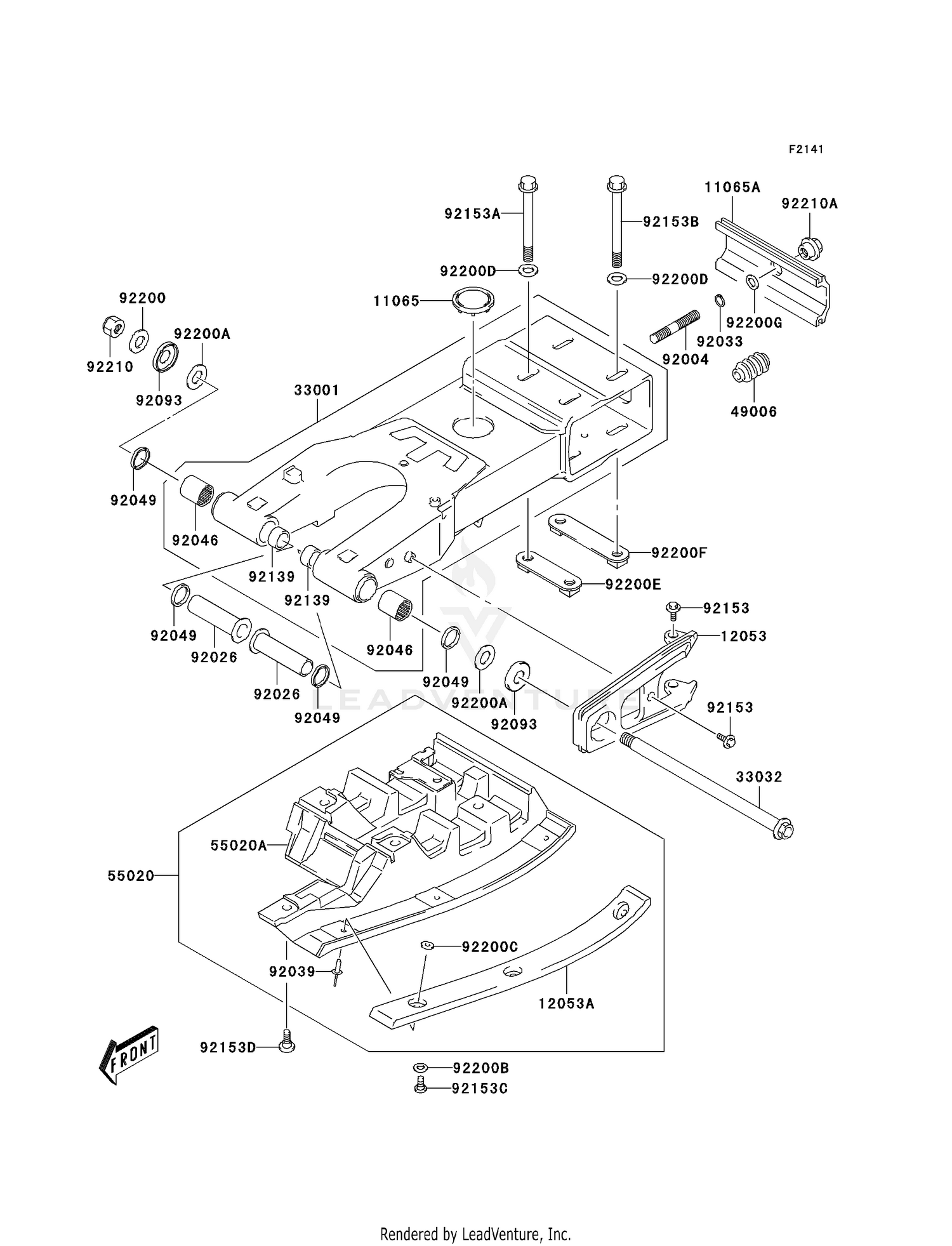

SWINGARM
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 11065 | 11065-S038 | CAP,SWINGING ARM Price: $13.96 |
| 11065A | 11065-S064 | CAP,CHAIN ADJUSTER Price: $68.25 |
| 12053 | 12053-S030 | GUIDE-CHAIN This part replaces 12053-S017. Price: $35.11 |
| 12053A | 12053-S024 | GUIDE-CHAIN Price: $70.37 |
| 33001 | 33001-S016 | ARM-COMP-SWING Price: $1,003.41 |
| 33032 | 33032-S007 | SHAFT-SWING ARM Price: $58.78 |
| 49006 | 49006-S038 | BOOT Price: $7.14 |
| 55020 | 55020-S035 | GUARD,SWING ARM Price: $178.90 |
| 55020A | 55020-S036 | GUARD,SWING ARM Price: $79.88 |
| 92004 | 92004-S014 | STUD,CHAIN ADJUSTER Price: $7.14 |
| 92026 | 92026-S100 | SPACER Price: $46.34 |
| 92033 | 92033-S067 | RING-SNAP This part replaces 92033-S002. Price: $3.48 |
| 92039 | 92039-S011 | RIVET Price: $4.10 |
| 92046 | 92046-S019 | BEARING-NEEDLE,SWING Price: $25.89 |
| 92049 | 92049-S075 | SEAL-OIL,SWING ARM This part replaces 92049-S053. Price: $5.30 |
| 92093 | 92093-S056 | SEAL This part replaces 92093-S040. Price: $10.12 |
| 92139 | 92139-S029 | BUSHING Price: $16.63 |
| 92153 | 92153-S306 | BOLT Price: $2.64 |
| 92153A | 92153-S373 | BOLT Price: $12.00 |
| 92153B | 92153-S374 | BOLT Price: $12.00 |
| 92153C | 92153-S398 | BOLT,GUARD CENTER Price: $5.03 |
| 92153D | 92153-S399 | BOLT Price: $6.74 |
| 92200 | 92200-S011 | WASHER Price: $3.58 |
| 92200A | 92200-S054 | WASHER Price: $3.45 |
| 92200B | 92200-S290 | WASHER This part replaces 92200-S092. Price: $1.92 |
| 92200C | 92200-S215 | WASHER Price: $2.34 |
| 92200D | 92200-S225 | WASHER Price: $5.03 |
| 92200E | 92200-S226 | WASHER Price: $15.35 |
| 92200F | 92200-S227 | WASHER Price: $16.24 |
| 92200G | 92200-S234 | WASHER Price: $4.42 |
| 92210 | 92210-S133 | NUT Price: $14.16 |
