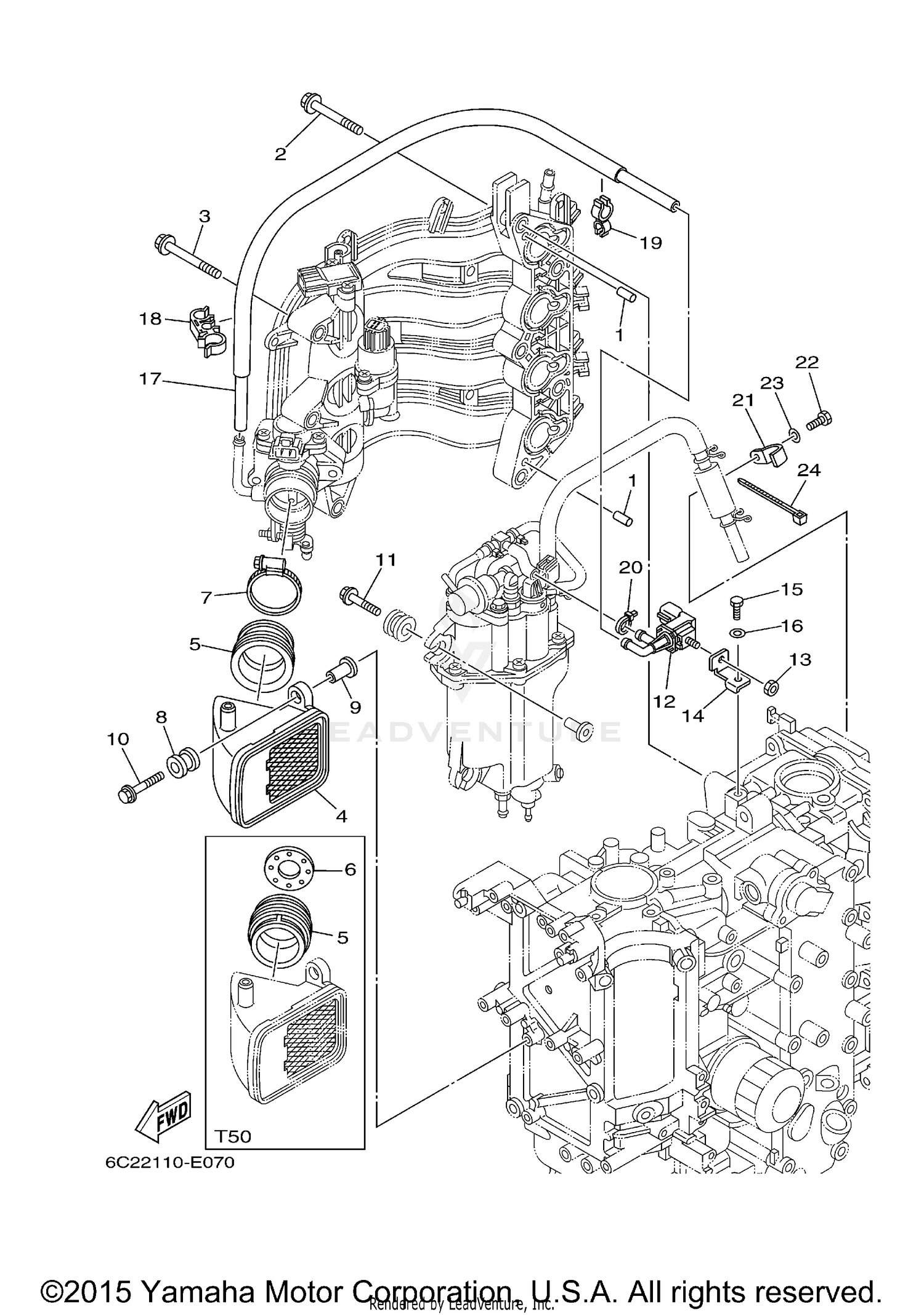

| Ref | Part Number | Description |
|---|
| 1 |
93608-12M05-00 |
PIN, DOWEL Price: $10.40 |
| 2 |
90119-08190-00 |
BOLT, WITH WASHER This part replaces 90119-08069-00. Price: $2.85 |
| 3 |
90119-06304-00 |
BOLT, WITH WASHER This part replaces 90119-06087-00. Price: $4.75 |
| 4 |
6C5-14440-10-00 |
SILENCER ASSY, INTAKE This part replaces 6C5-14440-00-00. Price: $43.00 |
| 7 |
90450-50001-00 |
HOSE CLAMP ASSY Price: $20.50 |
| 8 |
6A0-82317-01-00 |
DAMPER, IGNITION C This part replaces 6A0-82317-00-00. Price: $7.10 |
| 9 |
90387-06119-00 |
COLLAR Price: $4.80 |
| 10 |
90119-06106-00 |
BOLT, WITH WASHER Price: $5.05 |
| 11 |
90119-06295-00 |
BOLT, WITH WASHER This part replaces 90119-06M08-00. Price: $7.99 |
| 12 |
6C5-86120-00-00 |
SOLENOID VALVE ASSY Price: $157.80 |
| 13 |
95380-06600-00 |
NUT, HEXAGON Price: $4.80 |
| 14 |
6C5-86112-00-00 |
STAY, SOLENOID Price: $5.20 |
| 15 |
97D95-06016-00 |
BOLT, HEXAGON DEEP R This part replaces 97095-06016-00. Price: $2.76 |
| 16 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 17 |
6C5-12576-00-00 |
HOSE 1 Price: $21.80 |
| 18 |
90464-15008-00 |
CLAMP Price: $4.40 |
| 19 |
90464-12006-00 |
CLAMP Price: $4.65 |
| 20 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 21 |
6C5-13428-01-00 |
BRACKET, STRAINER 1 This part replaces 6C5-13428-00-00. Price: $22.10 |
| 22 |
97D95-06016-00 |
BOLT, HEXAGON DEEP R This part replaces 97095-06016-00. Price: $2.76 |
| 23 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
