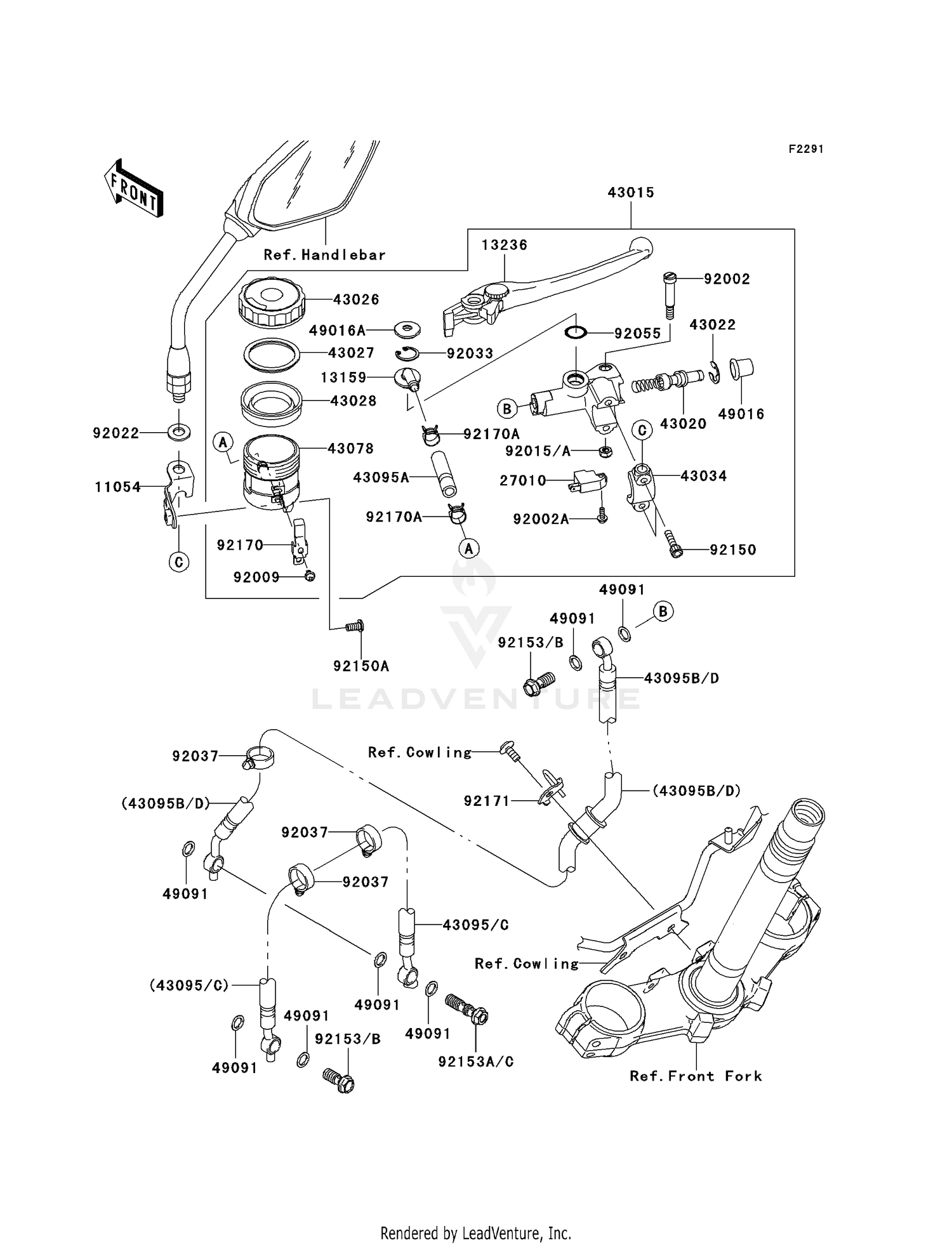

| Ref | Part Number | Description |
|---|
| 11054 |
11054-1909 |
BRACKET,RESERVOIR TAN Price: $21.71 |
| 13159 |
13159-1061 |
CONNECTOR Price: $12.96 |
| 13236 |
13236-0140 |
LEVER-COMP,FRONT BRAKE Price: $68.13 |
| 27010 |
27010-1170 |
SWITCH,BRAKE This part replaces 27010-0025. Price: $29.28 |
| 43015 |
43015-0105 |
CYLINDER-ASSY-MASTER, Price: $435.93 |
| 43020 |
43020-0008 |
PISTON-COMP-BRAKE Price: $65.80 |
| 43022 |
43022-1010 |
STOPPER-BRAKE,PISTON Price: $4.65 |
| 43026 |
43026-1051 |
CAP-BRAKE Price: $34.20 |
| 43027 |
43027-1051 |
PLATE-DIAPHRAGM Price: $5.32 |
| 43028 |
43028-1057 |
DIAPHRAGM,MASTER CYLINDER Price: $19.09 |
| 43034 |
43034-1163 |
HOLDER-BRAKE,MASTER C Price: $22.95 |
| 43078 |
43078-1099 |
RESERVOIR Price: $32.29 |
| 43095A |
43095-0366 |
HOSE-BRAKE,FR MASTER CYLINDER Price: $13.04 |
| 43095C |
43095-0537 |
HOSE-BRAKE,FR,485MM Price: $79.34 |
| 43095D |
43095-0538 |
HOSE-BRAKE,FR,776MM Price: $89.29 |
| 49016 |
49016-1044 |
COVER-SEAL,MASTER CYLINDER Price: $8.68 |
| 49016A |
49016-1147 |
COVER-SEAL Price: $6.29 |
| 49091 |
49091-0001 |
WASHER-SEAL,10.1X14.5X1.5 Price: $2.15 |
| 92002 |
92002-1322 |
BOLT,LEVER SET,BLACK Price: $11.71 |
| 92002A |
92002-1323 |
BOLT,SCREW,4X12 Price: $3.92 |
| 92009 |
92009-1570 |
SCREW Price: $3.09 |
| 92015A |
92015-1528 |
NUT,FLANGED,6MM Price: $5.52 |
| 92022 |
92022-3742 |
WASHER,10.2X20X1.5 Price: $4.18 |
| 92033 |
92033-1186 |
RING-SNAP,20.5MM Price: $4.96 |
| 92037 |
92037-1827 |
CLAMP,HOSE Price: $7.45 |
| 92055 |
92055-0741 |
RING-O,14.8X2.4 This part replaces 92055-1251. Price: $3.71 |
| 92150 |
92150-1328 |
BOLT Price: $5.00 |
| 92150A |
92150-1836 |
BOLT,SOCKET,6X14 Price: $4.69 |
| 92153 |
92153-0627 |
BOLT,OIL,L=23 Price: $5.48 |
| 92153A |
92153-0628 |
BOLT,OIL,L=37 Price: $11.83 |
| 92170 |
92170-1090 |
CLAMP Price: $14.43 |
| 92170A |
92170-1091 |
CLAMP,HOSE Price: $5.00 |
