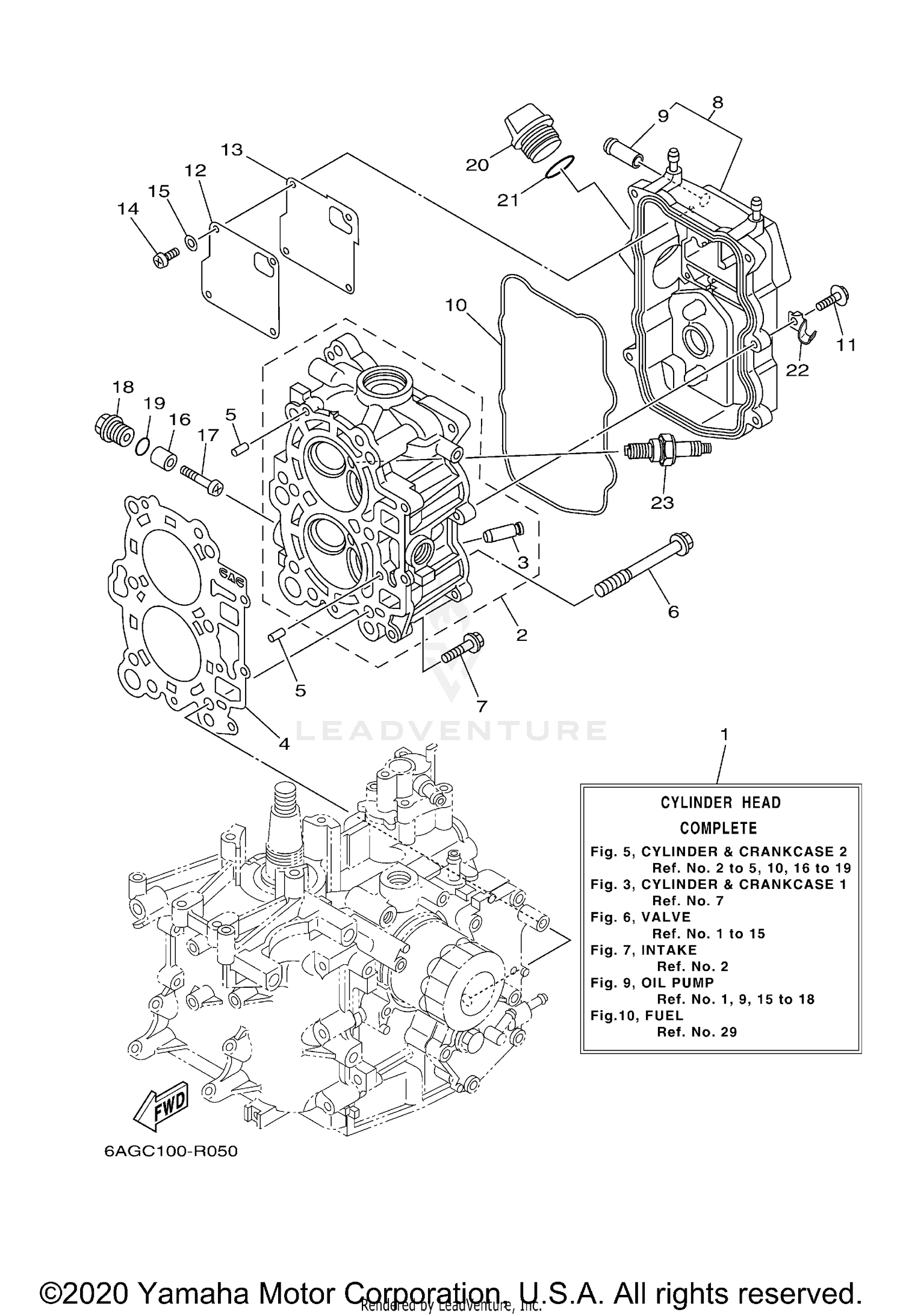

| Ref | Part Number | Description |
|---|
| 1 |
6AH-W009A-02-1S |
CYLINDER HEAD COMPLETE This part replaces 6AH-W009A-01-1S. Price: $958.60 |
| 2 |
6AH-11111-10-1S |
HEAD, CYLINDER 1 Price: $614.80 |
| 3 |
6AH-11133-10-00 |
GUIDE, VALVE 1 Price: $34.15 |
| 4 |
6AG-11181-10-00 |
GASKET, CYLINDER HEAD 1 Price: $69.70 |
| 5 |
93606-12019-00 |
PIN, DOWEL Price: $4.60 |
| 6 |
90105-09006-00 |
BOLT, FLANGE Price: $6.40 |
| 7 |
90119-06MA3-00 |
BOLT, WITH WASHER Price: $3.20 |
| 8 |
6AH-11191-00-1S |
COVER, CYLINDER HEAD 1 Price: $157.45 |
| 9 |
6AH-11372-00-00 |
NIPPLE, HOSE Price: $8.70 |
| 10 |
6AH-11356-00-00 |
SEAL, CYLINDER 2 Price: $17.75 |
| 11 |
97E95-06520-00 |
BOLT, HEXAGON W/W This part replaces 97595-06520-00. Price: $3.05 |
| 12 |
6AH-11168-00-00 |
COVER, BREATHER Price: $6.25 |
| 13 |
6AH-11169-00-00 |
GASKET, BREATHER COVER Price: $6.85 |
| 14 |
98507-04010-00 |
SCREW, PAN HEAD Price: $3.55 |
| 15 |
92907-04600-00 |
WASHER Price: $1.85 |
| 16 |
6G8-11325-00-00 |
ANODE Price: $3.60 |
| 17 |
98980-05025-00 |
SCREW, BIND Price: $1.40 |
| 18 |
6G8-11197-B0-00 |
PLUG, BLIND This part replaces 6G8-11197-A0-00. Price: $15.99 |
| 19 |
93210-13M63-00 |
O-RING Price: $4.75 |
| 20 |
6G8-15363-00-00 |
PLUG, OIL Price: $13.50 |
| 21 |
93210-24235-00 |
O-RING This part replaces 93210-24M79-00. Price: $8.49 |
| 22 |
90465-08059-00 |
CLAMP Price: $10.70 |
