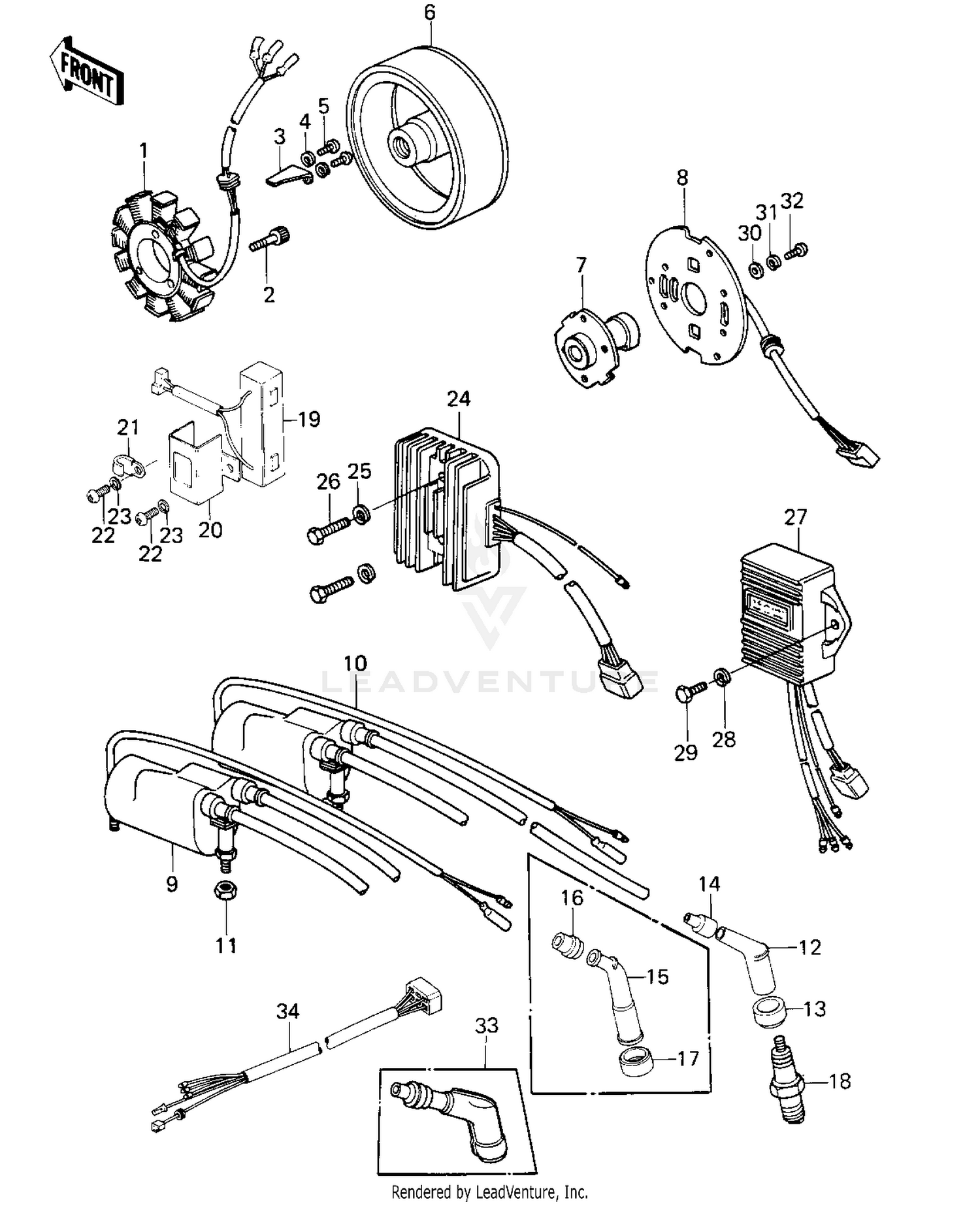

| Ref | Part Number | Description |
|---|
| 1 |
21003-1015 |
STATOR ASSY Price: $772.35 |
| 2 |
120P0525A |
BOLT,SOCKET,5X25 Price: $1.04 |
| 3 |
92037-1122 |
CLAMP,GENERATOR WIRE Price: $4.80 |
| 4 |
461DA0500 |
WASHER-SPRING,5MM This part replaces 461F0500. Price: $0.71 |
| 5 |
220AA0512 |
SCREW-PAN-CROS,5X12 This part replaces 220B0512. Price: $0.47 |
| 6 |
21007-1011 |
ROTOR Price: $1,046.90 |
| 7 |
21148-1006 |
ADVANCER ASSY SPARK (Canada) Price: Call Us |
| 7 |
21148-1009 |
ADVANCER ASSY,SPARK Price: $252.26 |
| 8 |
59026-1133 |
COIL-PULSING This part replaces 59026-1012. Price: $237.15 |
| 11 |
92017-014 |
NUT,LOCK 6MM Price: $7.51 |
| 19 |
28018-1020 |
RESISTOR Price: $173.72 |
| 20 |
11034-1555 |
BRACKET,RESISTOR Price: $6.78 |
| 21 |
21126-008 |
CLAMP,WIRING HARNESS Price: $4.73 |
| 22 |
220AA0612 |
SCREW-PAN-CROS,6X12 This part replaces 220B0612. Price: $1.19 |
| 23 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 24 |
21066-1008 |
REGULATOR,VOLTAGE Price: $513.24 |
| 25 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 26 |
112BA0625 |
BOLT-UPSET,6X25 This part replaces 112G0625. Price: $3.72 |
| 28 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 29 |
112AA0614 |
BOLT-UPSET This part replaces 112B0614. Price: $0.49 |
| 30 |
410AA0500 |
WASHER-PLAIN-SMALL This part replaces 410B0500. Price: $0.47 |
| 31 |
461DA0500 |
WASHER-SPRING,5MM This part replaces 461F0500. Price: $0.71 |
| 32 |
220AA0512 |
SCREW-PAN-CROS,5X12 This part replaces 220B0512. Price: $0.47 |
| 33 |
21160-005 |
CAP,SPARK PLUG Price: $51.69 |
