Parts Catalog

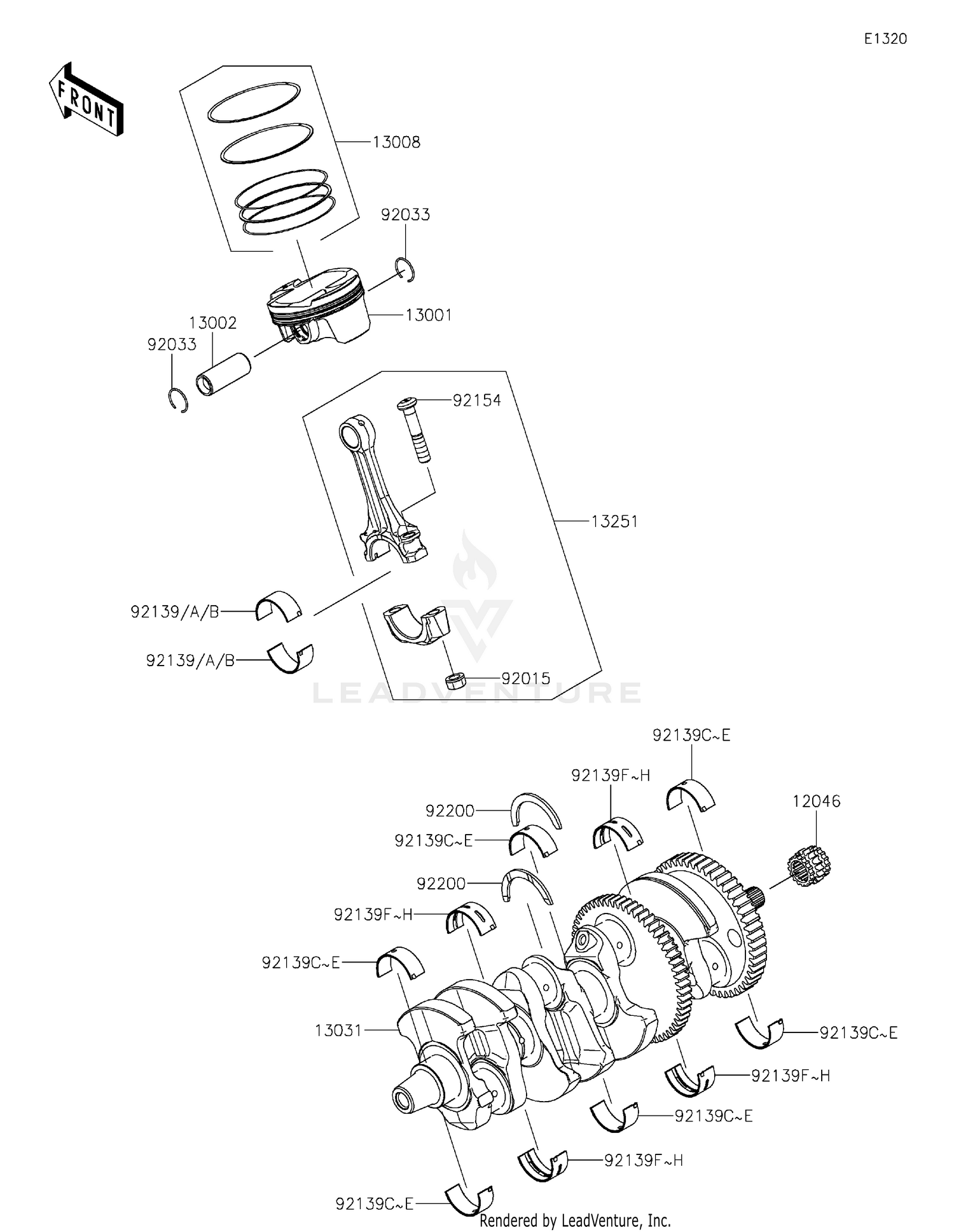

Crankshaft/Piston(s)

Parts (18)

Ref	Part Number	Description
12046	12046-0033	SPROCKET,16T Price: $38.27
13001	13001-0794	PISTON-ENGINE Price: $141.29
13002	13002-0043	PIN-PISTON Price: $43.06
13008	13008-0578	RING-SET-PISTON Price: $65.89
13031	13031-0953	CRANKSHAFT-COMP Price: $1,354.08
13251	13251-0740-II	ROD-ASSY-CONNECTING,I Price: $213.19
92015	92015-1559	NUT,CONNECTING ROD Price: $6.22
92033	92033-1099	RING-SNAP,20.5X1.2 Price: $0.62
92139	92139-0818	BUSHING,CON-ROD,BLUE Price: $26.89
92139A	92139-0819	BUSHING,CON-ROD,BLACK Price: $26.89
92139B	92139-0820	BUSHING,CON-ROD,BROWN Price: $26.89
92139C	92139-0891	BUSHING,#1&#3&#5,YELLOW Price: $26.89
92139D	92139-0892	BUSHING,#1&#3&#5,GREEN Price: $26.89
92139E	92139-0893	BUSHING,#1&#3&#5,PINK Price: $26.89
92139F	92139-0894	BUSHING,#2&#4,YELLOW Price: $26.89
92139G	92139-0895	BUSHING,#2&#4,GREEN Price: $26.89
92139H	92139-0896	BUSHING,#2&#4,PINK Price: $26.89
92154	92154-3883	BOLT,CON-ROD,9X47.5 Price: $16.25
