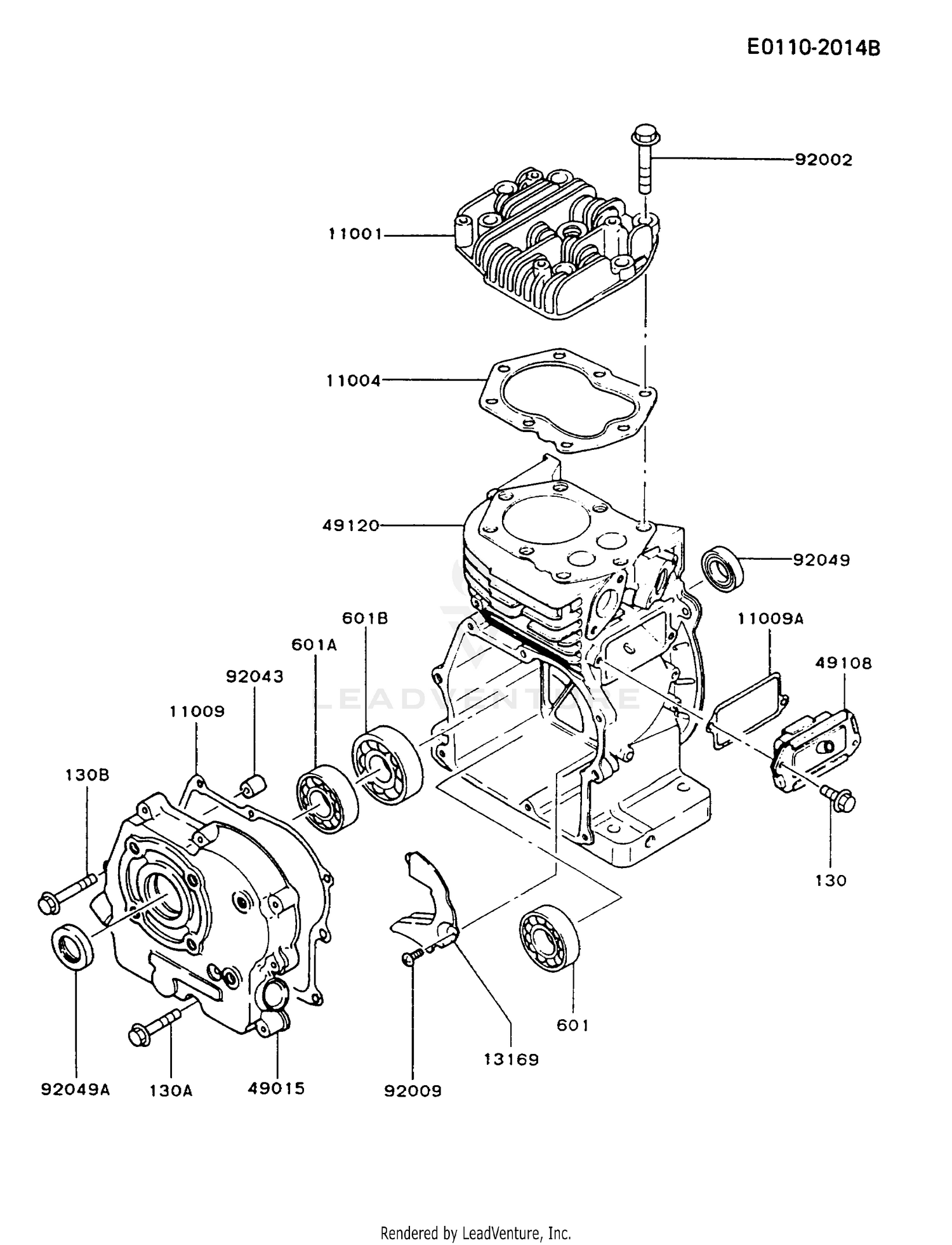

CYLINDER/CRANKCASE

CYLINDER/CRANKCASE

Parts (18)

RefPart NumberDescription
130 130AA0612 BOLT-FLANGED,6X12 This part replaces 130B0612. Price: $0.68
130A 130BA0630 BOLT-FLANGED,6X30 This part replaces 130G0630. Price: $1.46
130B 130BA0640 BOLT-FLANGED,6X40 This part replaces 130G0640. Price: $1.20
601 601B6202 BEARING-BALL,#6202C3 This part replaces 601A6202. Price: $8.64
601A 601B6205 BEARING BALL #6205 This part replaces 601A6205. Price: $19.57
11001 11001-2069 HEAD-CYLINDER Price: $44.64
11004 11004-2081 GASKET-HEAD This part replaces 11004-2068. Price: $12.88
11009 11060-2209 GASKET,CRANKCASE COVER This part replaces 11009-2110. Price: $8.38
11009A 11009-2011 GASKET Price: $1.57
13169 13169-2377 PLATE Price: $3.57
49015 49015-6002 COVER-CRANKCASE Price: $96.97
49108 49108-2053-9E COVER-VALVE CHAMBER Price: $17.02
49120 49120-2158 CRANKCASE-COMP Price: $342.79
92002 92002-2243 BOLT Price: $1.68
92009 92009-2308 SCREW This part replaces 92009-2104. Price: $0.43
92043 92043-2008 PIN, DOWELL Price: $0.51
92049 92049-2225 SEAL-OIL This part replaces 92049-2002. Price: $7.71
92049A 92049-2067 SEAL-OIL Price: $5.16
