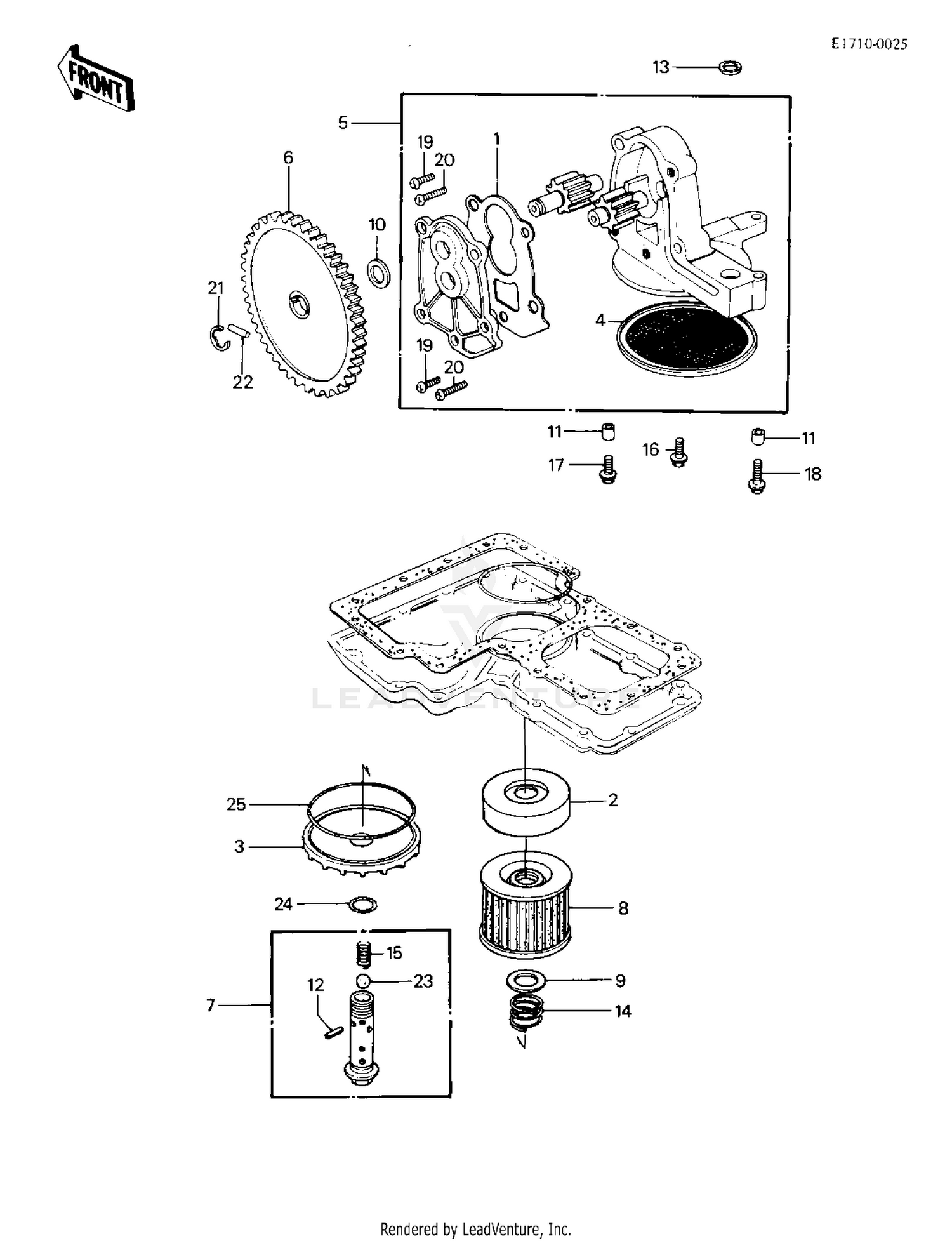

| Ref | Part Number | Description |
|---|
| 1 |
11009-1029 |
GASKET,OIL PUMP Price: $7.51 |
| 2 |
13169-1313 |
PLATE,OIL FILTER Price: $10.65 |
| 3 |
16101-004 |
COVER,OIL FILTER Price: $25.50 |
| 4 |
16111-004 |
STRAINER,OIL PUMP Price: $44.36 |
| 8 |
16099-003 |
ELEMENT-OIL FILTER Price: $12.20 |
| 9 |
92022-1012 |
WASHER,20.5X30X1 Price: $4.34 |
| 10 |
92022-1415 |
WASHER,10.2X18X1.0,SK5 This part replaces 92026-080. Price: $4.69 |
| 12 |
92043-111 |
PIN,SPRING,2X20 Price: $6.27 |
| 13 |
92055-048 |
O RING,0.D=18MM Price: $4.80 |
| 14 |
92081-1018 |
SPRING,OIL FILTER Price: $4.65 |
| 15 |
92081-109 |
SPRING Price: $11.29 |
| 16 |
130BA0625 |
BOLT-FLANGED,6X25 This part replaces 130G0625. Price: $1.20 |
| 17 |
130BA0635 |
BOLT-FLANGED,6X35 This part replaces 130H0635. Price: $0.94 |
| 18 |
130BA0645 |
BOLT-FLANGED This part replaces 130G0645. Price: $0.95 |
| 19 |
220B0618 |
SCREW-PAN-CROS,6X18 Price: $3.35 |
| 20 |
220AA0628 |
SCREW-PAN HEAD,6X28 This part replaces 220B0628. Price: $3.67 |
| 21 |
482K7000 |
CIRCLIP,7MM Price: $5.86 |
| 24 |
670B2016 |
O RING,16MM Price: $1.36 |
