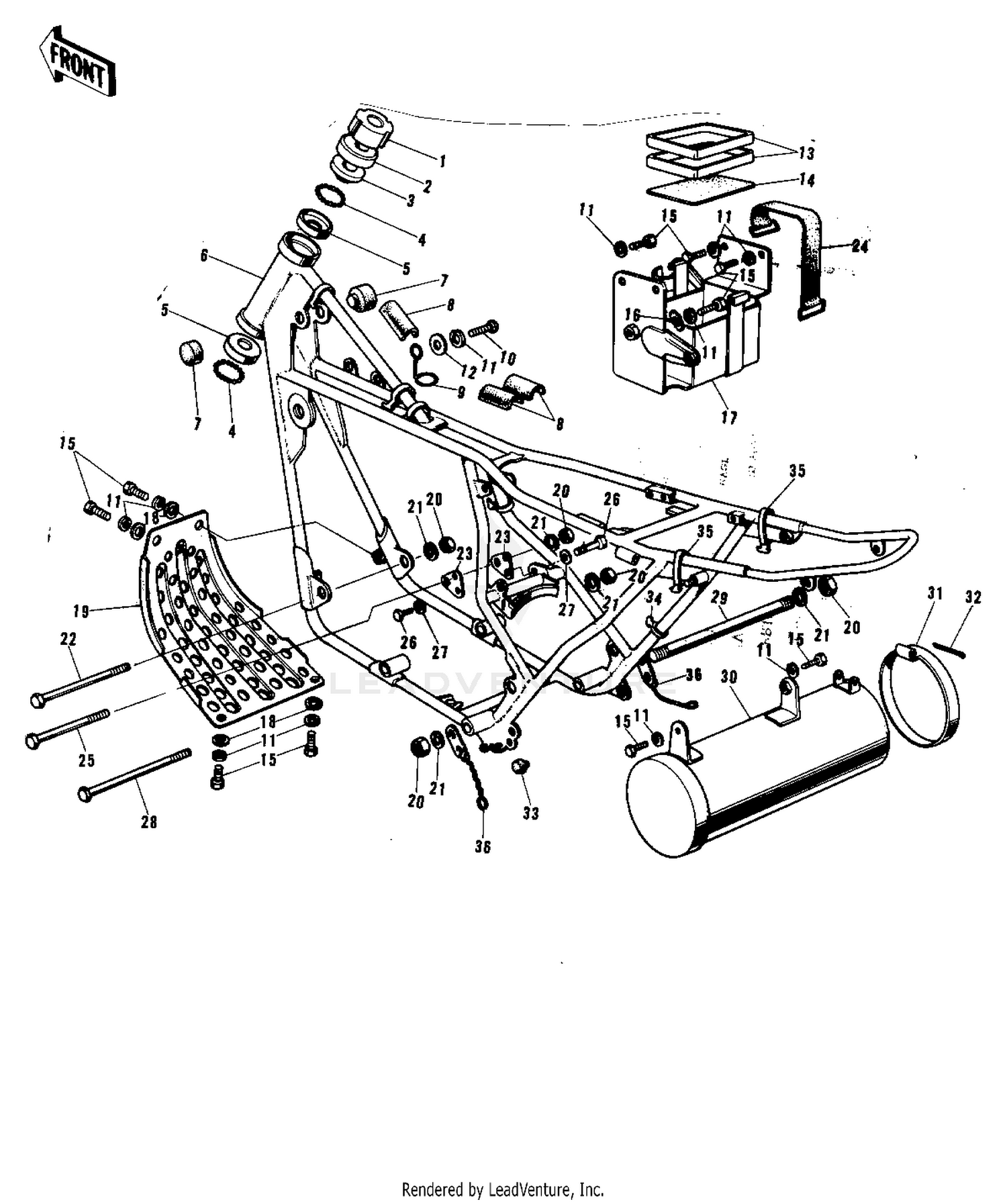

| Ref | Part Number | Description |
|---|
| 1 |
92090-006 |
NUT STEERING STEM LCK Price: $15.04 |
| 2 |
46098-005 |
CAP STEERING STEM Price: $4.03 |
| 3 |
92047-003 |
CONE STERNG BERG UPP Price: $9.99 |
| 4 |
600A0800 |
BALL-STEEL,1/4 Price: $0.62 |
| 5 |
92048-005 |
RACE STEERING BEARING Price: $12.37 |
| 6 |
32002-048 |
FRAME Price: $450.02 |
| 7 |
92075-050 |
DAMPER RUBB FUEL TANK Price: $6.61 |
| 8 |
51067-002 |
MAT FUEL TANK Price: $17.44 |
| 9 |
92037-053 |
CLAMP Price: $2.34 |
| 10 |
112BA0610 |
BOLT-UPSET,6X10 This part replaces 112G0610. Price: $0.58 |
| 11 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 12 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 13 |
32103-018 |
MAT-BATTERY Price: $3.15 |
| 14 |
32103-017 |
MAT-BATTERY Price: $1.84 |
| 15 |
112BA0612 |
BOLT-UPSET This part replaces 112G0612. Price: $1.49 |
| 16 |
464H0600 |
WASHER LOCK 6MM Price: $0.68 |
| 17 |
32097-016 |
CASE-BATTERY Price: $21.71 |
| 18 |
92200-0283 |
WASHER,6.5X20X1.6 This part replaces 92022-125. Price: $1.40 |
| 19 |
55011-011 |
GUARD-ENGINE Price: $24.61 |
| 20 |
92015-1381 |
NUT,12MM This part replaces 314B1200. Price: $2.67 |
| 21 |
461DA1200 |
WASHER-SPRING,12MM This part replaces 461F1200. Price: $1.03 |
| 22 |
113B12163A |
BOLT-HEX HEAD,12X163 Price: $9.85 |
| 23 |
32030-020 |
PLATE-ENGINE MOUNT Price: $5.45 |
| 24 |
92072-012 |
BAND Price: $7.34 |
| 25 |
113B12151A |
BOLT-HEX HEAD,12X151 Price: $7.55 |
| 26 |
115BA0820 |
BOLT-SMALL-UPSET,8X20 This part replaces 115G0820. Price: $5.52 |
| 27 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 28 |
113B12260A |
BOLT-HEX HEAD,12X260 Price: $10.95 |
| 29 |
92006-002 |
STUD Price: $10.24 |
| 30 |
32098-014-21 |
BOX-TOOL,BLACK Price: $34.24 |
| 31 |
32099-005 |
CAP-TOOL CASE Price: $9.61 |
| 32 |
550D2030 |
PIN COTTER 2.0X30 Price: $1.51 |
| 33 |
92074-005 |
PLUG RUBBER Price: $5.97 |
| 34 |
92072-013 |
BAND RUBBER Price: $3.58 |
| 35 |
92072-018 |
BAND RUBBER Price: $2.87 |
