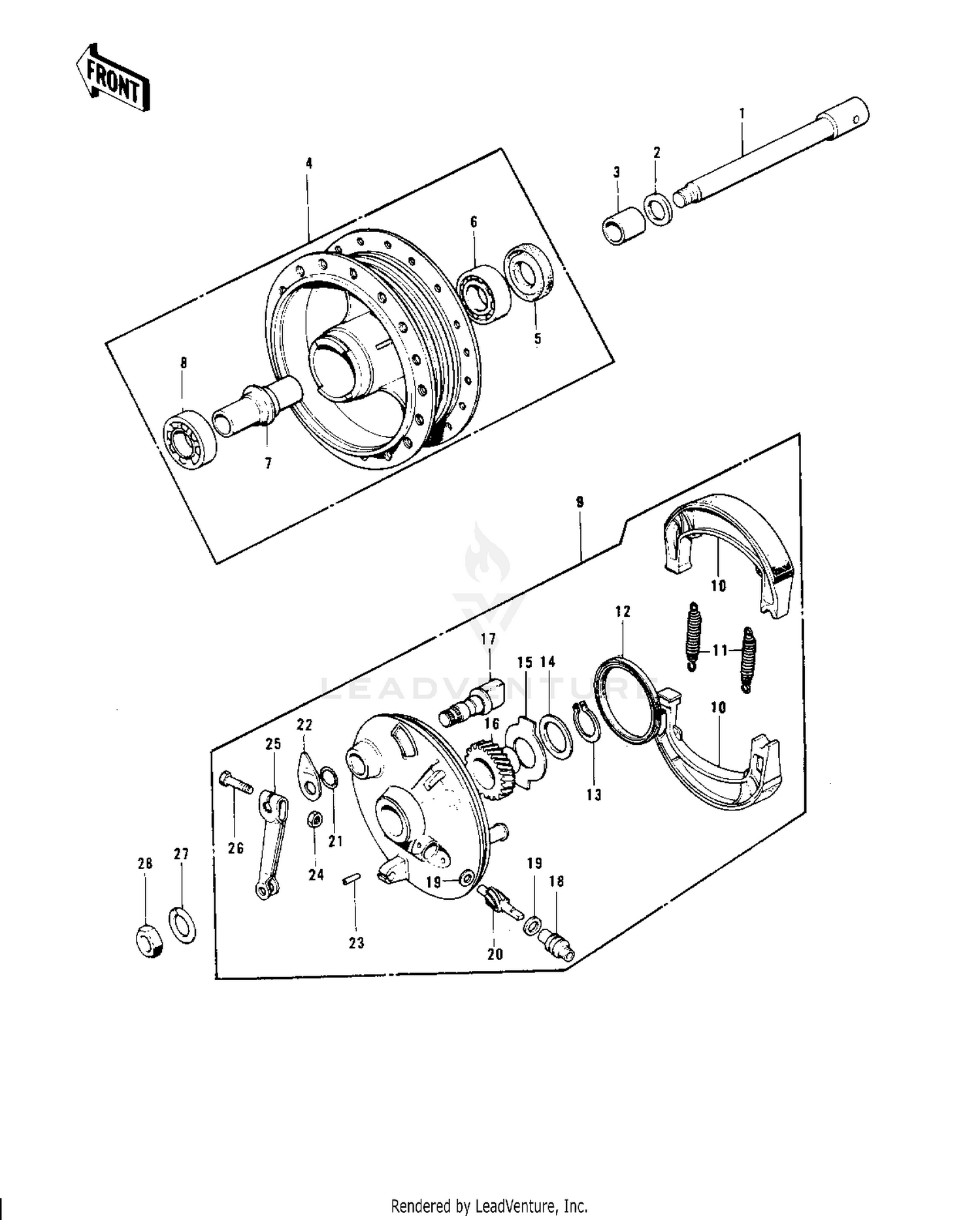

| Ref | Part Number | Description |
|---|
| 1 |
41068-1359 |
AXLE,FR This part replaces 41068-039. Price: $29.09 |
| 2 |
41042-002 |
DUST SHIELD FRNT DRUM Price: $3.58 |
| 3 |
41069-002 |
COLLAR FRONT HUB R.H Price: $7.04 |
| 4 |
41034-1040 |
DRUM-ASSY,FR BRK Price: $214.31 |
| 5 |
92050-003 |
OIL SEAL FRONT DRUM Price: $7.27 |
| 6 |
601B6200 |
BEARING BALL #6200 Price: $14.85 |
| 7 |
41039-002 |
SPACER FRONT HUB Price: $10.96 |
| 8 |
601B6300Z |
BEARING BALL #6300Z Price: $15.92 |
| 10 |
41048-1085 |
SHOE-BRAKE Price: $22.53 |
| 11 |
92081-1766 |
SPRING,BRAKE SHOE Price: $8.03 |
| 12 |
92050-002 |
OIL SEAL BRAKE PANEL Price: $14.64 |
| 13 |
480J1500 |
CIRCLIP-TYPE-C,15MM Price: $2.31 |
| 14 |
41065-002 |
WASHER SPEED GR THRST Price: $3.55 |
| 18 |
41062-005 |
BUSH,SPEEDMETER CABLE Price: $19.48 |
| 19 |
41063-001 |
WASHER,5.1X9X0.4 Price: $4.69 |
| 20 |
41060-004 |
PINION SPEEDOMETER Price: $21.74 |
| 23 |
41082-001 |
PIN,SPRING Price: $3.92 |
| 24 |
41072-007 |
NUT,6MM Price: $3.92 |
| 25 |
41053-005 |
LEVER FRONT BRAKE CAM Price: $15.47 |
| 26 |
112BA0630 |
BOLT-UPSET This part replaces 112G0630. Price: $1.38 |
| 27 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
