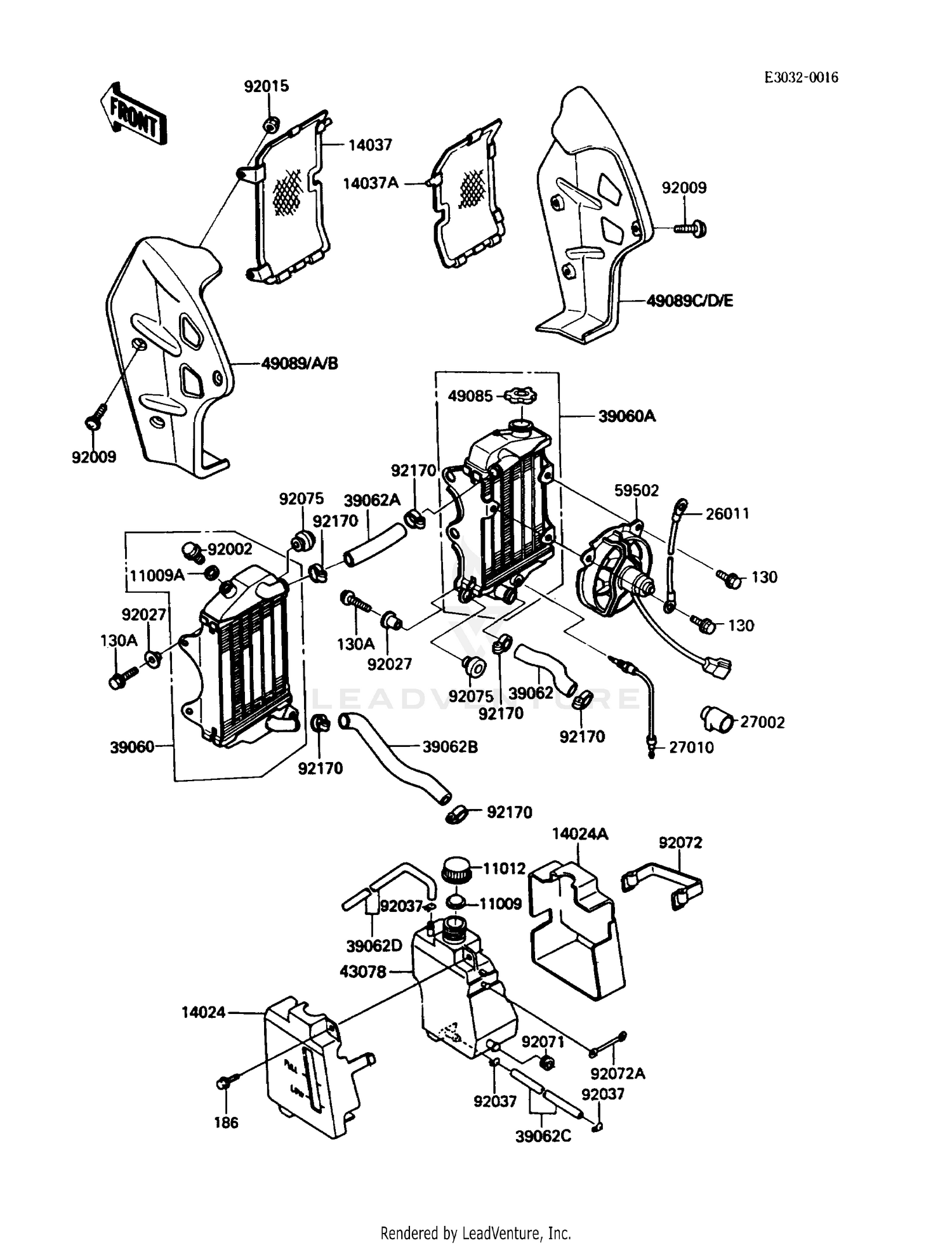

| Ref | Part Number | Description |
|---|
| 130 |
130BB0612 |
BOLT-FLANGED,6X12 This part replaces 130J0612. Price: $2.34 |
| 130A |
130BB0620 |
BOLT-FLANGED,6X20 This part replaces 130J0620. Price: $0.46 |
| 11009 |
11009-1145 |
GASKET,RESERVOIR TANK CAP Price: $1.42 |
| 11009A |
11009-1152 |
GASKET,DRAIN PLUG Price: $7.55 |
| 11012 |
11012-1084 |
CAP Price: $1.72 |
| 14024 |
14025-1991 |
COVER,RESERVOIR,LH Price: $36.67 |
| 14024A |
14025-1992 |
COVER,RESERVOIR,RH Price: $36.67 |
| 14037 |
14037-1061 |
SCREEN,LH Price: $68.03 |
| 14037A |
14037-1062 |
SCREEN,RH Price: $68.03 |
| 26011 |
26011-1278 |
WIRE-LEAD Price: $7.56 |
| 27002 |
27002-1051 |
RELAY-ASSY Price: $52.57 |
| 27010 |
27010-1180 |
SWITCH,FAN Price: $134.14 |
| 39060 |
39060-1060 |
RADIATOR,LH Price: $601.16 |
| 39060A |
39060-1061 |
RADIATOR,RH Price: $547.56 |
| 39062 |
39062-1083 |
HOSE-COOLING Price: $29.73 |
| 39062A |
39062-1084 |
HOSE-COOLING Price: $18.77 |
| 39062B |
39062-1085 |
HOSE-COOLING Price: $35.42 |
| 39062C |
39062-1086 |
HOSE-COOLING Price: $19.59 |
| 39062D |
39062-1131 |
HOSE-COOLING This part replaces 39062-1132. Price: $20.10 |
| 43078 |
43078-1061 |
RESERVOIR,TANK Price: $40.60 |
| 49085 |
49085-1067 |
CAP-ASSY-PRESSURE This part replaces 49085-1057. Price: $53.94 |
| 49089A |
49089-1057-6F |
SHROUD-ENGINE,LH,P.WH Price: $51.51 |
| 49089D |
49089-1058-6F |
SHROUD-ENGINE,RH,P.WH Price: $53.97 |
| 59502 |
59502-1052 |
FAN-ASSY Price: $596.05 |
| 92002 |
92002-1682 |
BOLT,RADIATOR DRAIN Price: $20.51 |
| 92009 |
92172-0401 |
SCREW,6X14 This part replaces 92009-1287. Price: $2.55 |
| 92015 |
92210-0003 |
NUT,CAP,6MM This part replaces 92015-1170. Price: $0.64 |
| 92027 |
92027-1183 |
COLLAR,6.5X10X14.1 Price: $5.52 |
| 92037 |
92037-147 |
CLAMP,TUBE Price: $7.34 |
| 92071 |
92071-1115 |
GROMMET Price: $5.46 |
| 92072 |
92072-053 |
BAND,L=82 Price: $12.35 |
| 92072A |
92072-1156 |
BAND,L=58 Price: $7.24 |
| 92075 |
92075-1352 |
DAMPER,RADIATOR Price: $6.52 |
| 92170 |
92170-1033 |
CLAMP,COOLING HOSE Price: $15.16 |
