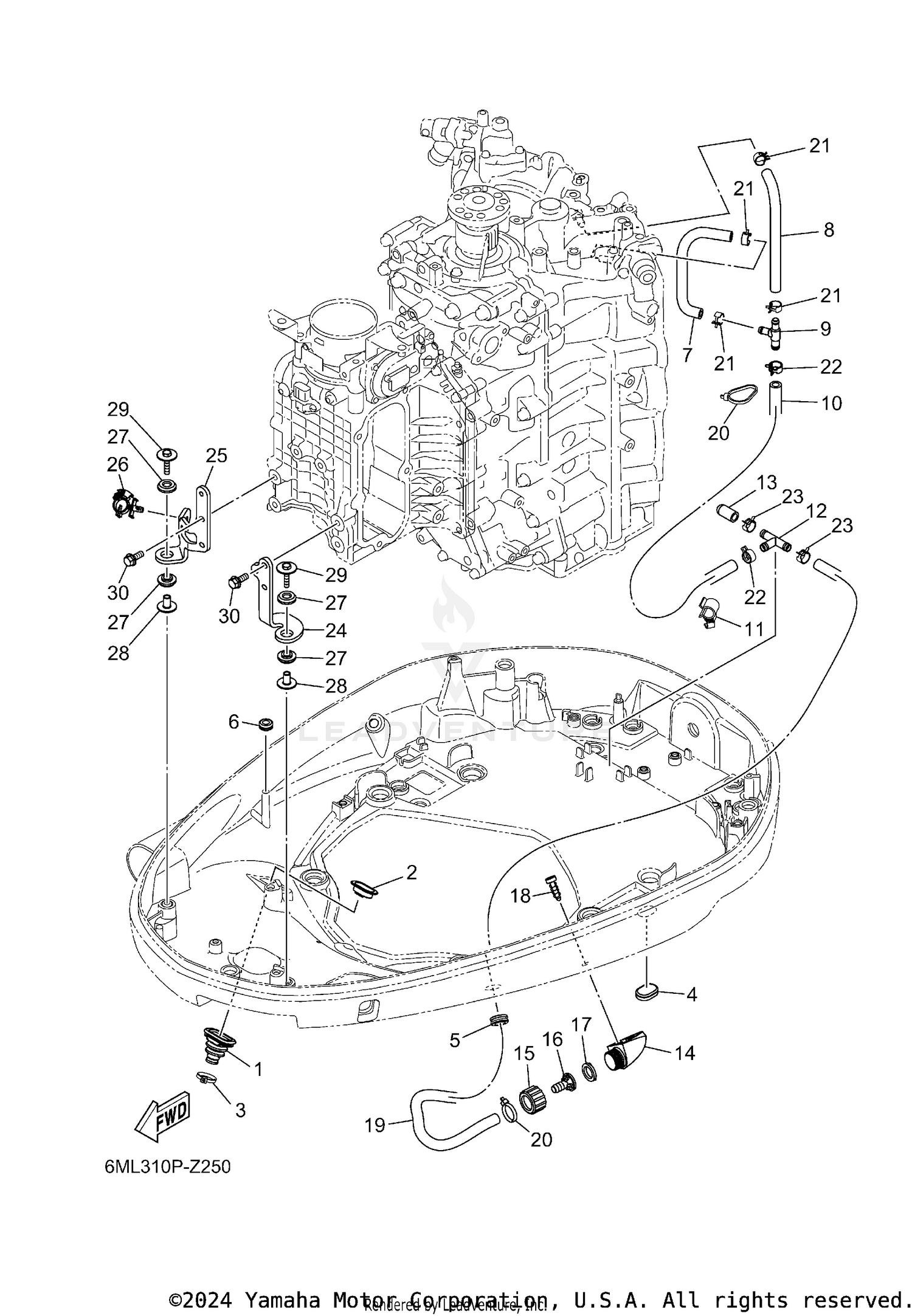

BOTTOM COWLING 2
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6BG-42724-01-00 | GROMMET Price: $10.10 |
| 2 | 6BG-42384-00-00 | SEAL, CAP Price: $6.60 |
| 3 | 90465-10098-00 | CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 4 | 64G-42727-01-00 | GROMMET Price: $7.40 |
| 5 | 90480-19368-00 | GROMMET This part replaces 90480-19031-00. Price: $4.75 |
| 6 | 90480-13163-00 | GROMMET Price: $7.49 |
| 7 | 6CB-24315-00-00 | PIPE 5 Price: $20.80 |
| 8 | 90445-14021-00 | HOSE (L185) Price: $15.20 |
| 9 | 6AW-42169-00-00 | JOINT Price: $11.35 |
| 10 | 6KA-13582-00-00 | PIPE Price: $15.35 |
| 11 | 90464-16017-00 | CLAMP Price: $4.65 |
| 12 | 90413-10001-00 | WAY 3 Price: $2.30 |
| 13 | 6KA-13587-00-00 | CAP, JOINT Price: $7.40 |
| 14 | 6AW-12572-00-00 | ADAPTER Price: $15.55 |
| 15 | 6R3-12581-00-00 | JOINT, HOSE 1 Price: $6.40 |
| 16 | 6AW-12582-00-00 | JOINT, HOSE 2 Price: $5.95 |
| 17 | 6R3-12583-10-00 | GASKET, HOSE JOINT This part replaces 6R3-12583-00-00. Price: $3.55 |
| 18 | 97780-60520-00 | SCREW, TAPPING Price: $4.49 |
| 19 | 6KA-42541-00-00 | PIPE 1 Price: $28.40 |
| 20 | 90465-10098-00 | CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 21 | 90467-130A5-00 | CLIP Price: $5.80 |
| 22 | 90467-140A8-00 | CLIP Price: $7.20 |
| 23 | 90467-140A9-00 | CLIP Price: $7.20 |
| 24 | 6ML-42643-10-00 | PLATE, CLAMP Price: $52.85 |
| 25 | 6ML-42644-10-00 | PLATE, CLAMP 2 Price: $95.95 |
| 26 | 90464-18011-00 | CLAMP Price: $3.75 |
| 27 | 90480-14029-00 | GROMMET Price: $5.55 |
| 28 | 90387-06M03-00 | COLLAR Price: $10.40 |
| 29 | 90119-06291-00 | BOLT, WITH WASHER Price: $4.20 |
