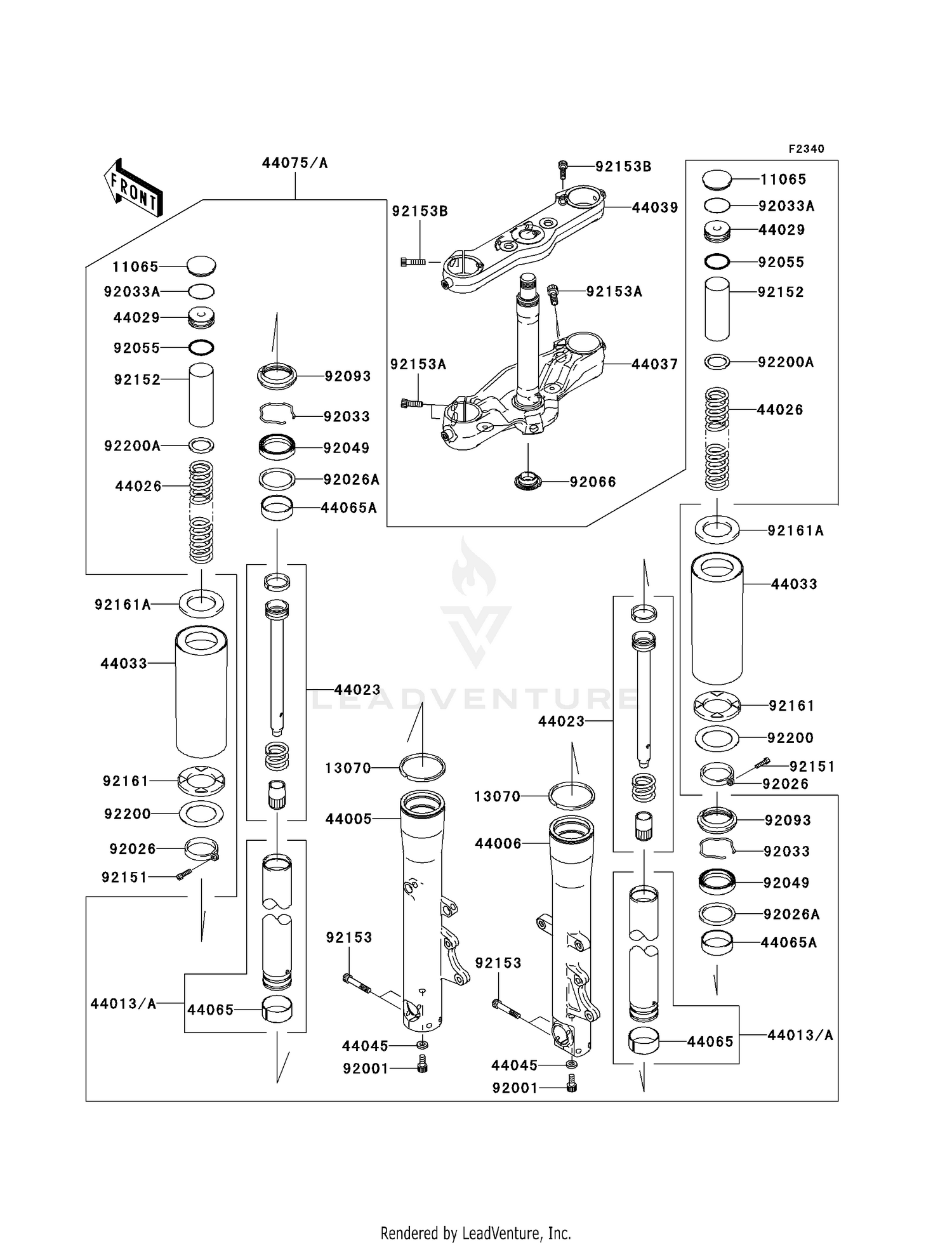

FRONT FORK
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 11065 | 11065-0034 | CAP Price: $13.60 |
| 13070 | 13070-0017 | GUIDE Price: $4.39 |
| 44005 | 44005-0008 | PIPE-LEFT FORK OUTER Price: $543.30 |
| 44006 | 44006-0009 | PIPE-RIGHT FORK OUTER Price: $569.23 |
| 44013 | 44013-0004 | PIPE-FORK INNER Price: $470.69 |
| 44023 | 44023-0007 | CYLINDER-SET-FORK Price: $151.20 |
| 44026 | 44026-0038 | SPRING-FRONT FORK Price: $87.88 |
| 44029 | 44029-0002 | SEAT-FORK SPRING Price: $60.34 |
| 44033 | 44033-0019 | COVER-FORK Price: $129.16 |
| 44037 | 44037-0042 | HOLDER-FORK UNDER This part replaces 44037-0001. Price: $573.42 |
| 44039 | 44039-0001 | HOLDER-FORK UPPER Price: $429.60 |
| 44045 | 44045-051 | GASKET,FORK CYLINDER BOLT Price: $6.16 |
| 44065 | 44065-0012 | BUSHING-FRONT FORK Price: $26.74 |
| 44065A | 44065-0013 | BUSHING-FRONT FORK Price: $25.51 |
| 44075 | 44075-0058 | DAMPER-SET-FORK This part replaces 44075-0042. Price: $1,656.77 |
| 92001 | 92001-1464 | BOLT,FORK CYLINDER Price: $6.22 |
| 92026 | 92026-0050 | SPACER Price: $11.95 |
| 92026A | 92026-0054 | SPACER Price: $21.44 |
| 92033 | 92033-0026 | RING-SNAP Price: $8.42 |
| 92033A | 92033-0027 | RING-SNAP Price: $8.82 |
| 92049 | 92049-0044 | SEAL-OIL Price: $29.22 |
| 92055 | 92055-0055 | RING-O Price: $4.22 |
| 92066 | 92066-0032 | PLUG Price: $11.66 |
| 92093 | 92093-0023 | SEAL,FORK OUTER TUBE Price: $27.10 |
| 92151 | 92151-1356 | BOLT,SOCKET,4X16 Price: $2.46 |
| 92152 | 92152-0094 | COLLAR Price: $33.04 |
| 92153 | 92153-0499 | BOLT Price: $9.51 |
| 92153A | 92153-0711 | BOLT,SOCKET Price: $4.43 |
| 92153B | 92153-0712 | BOLT,SOCKET,8X30 Price: $3.94 |
| 92161 | 92161-0086 | DAMPER Price: $19.47 |
| 92161A | 92161-0087 | DAMPER Price: $32.27 |
| 92200 | 92200-0132 | WASHER Price: $8.90 |
