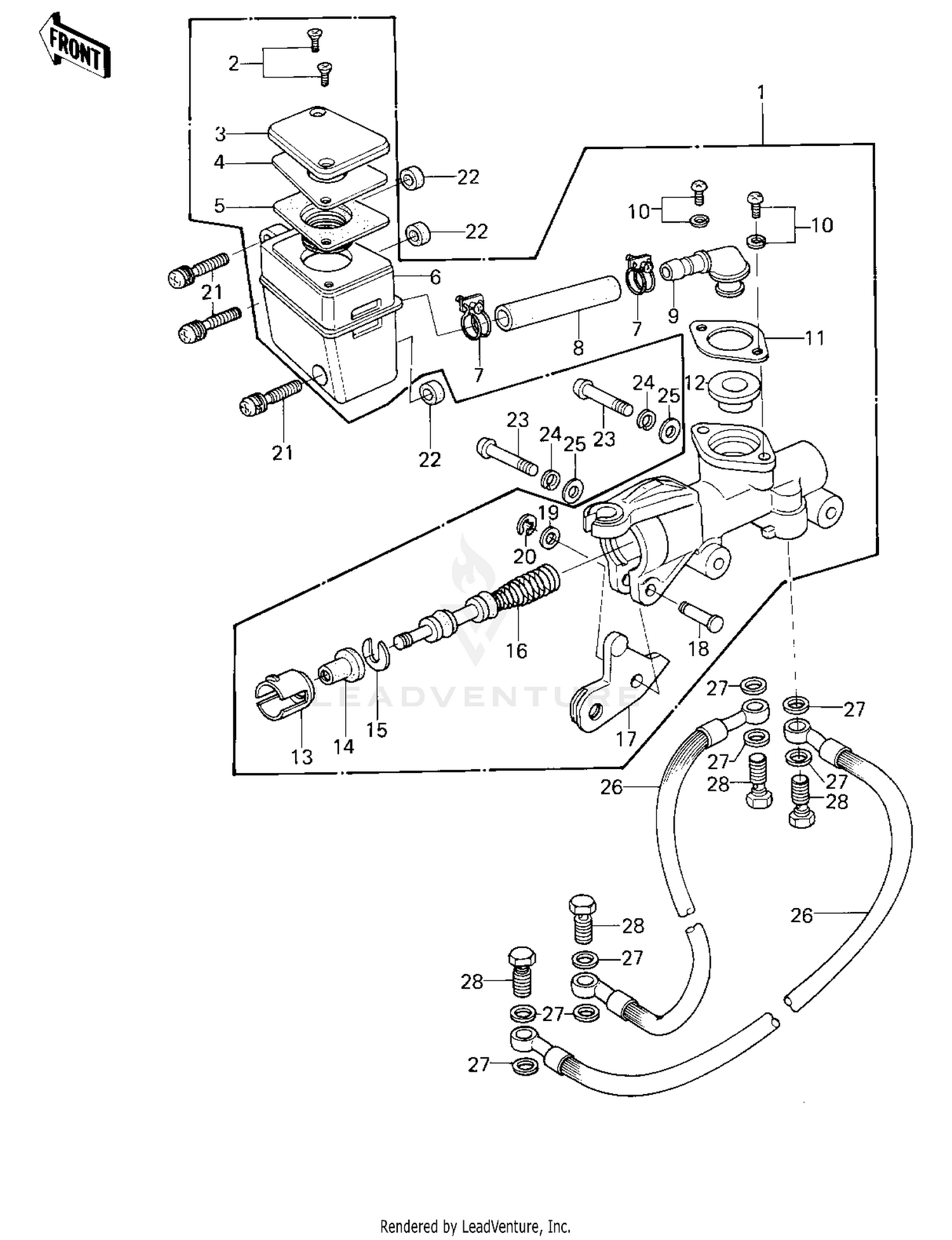

| Ref | Part Number | Description |
|---|
| 1 |
43015-1012 |
CYLINDER ASSY,MASTER, Price: $345.97 |
| 2 |
92001-1055 |
SCREW,COUNTERSUNK HED Price: $5.84 |
| 3 |
43026-1004 |
CAP,BRAKE Price: $42.60 |
| 4 |
43027-1003 |
PLATE,DIAPHRAGM Price: $16.34 |
| 5 |
43028-1003 |
DIAPHRAGM Price: $22.91 |
| 6 |
43078-1005 |
RESERVOIR Price: $146.05 |
| 7 |
92033-1007 |
CLAMP Price: $8.92 |
| 8 |
43059-1009 |
HOSE,BRAKE Price: $11.93 |
| 9 |
13159-1003 |
CONNECTOR Price: $62.39 |
| 10 |
92001-1081 |
BOLT,PLATE FITTING Price: $0.90 |
| 11 |
13169-1081 |
PLATE Price: $11.78 |
| 12 |
43049-1005 |
DUST SEAL Price: $14.50 |
| 13 |
14008-1007 |
LINER,PISTON Price: $9.81 |
| 14 |
49016-1010 |
DUST COVER Price: $13.20 |
| 15 |
43022-1001 |
STOPER,PISTON Price: $4.71 |
| 16 |
43020-1008 |
PISTON ASSY Price: $102.97 |
| 17 |
43001-1016 |
LEVER,BRAKE Price: $21.53 |
| 18 |
92043-1017 |
PIN,BRAKE LEVER FITT Price: $6.23 |
| 19 |
92022-1042 |
WASHER,BRAKE LEVER FT Price: $2.87 |
| 20 |
92033-1006 |
CIRCLIP Price: $2.42 |
| 21 |
92009-1031 |
SCREW,PAN HEAD,6X28 Price: $3.52 |
| 22 |
92075-1038 |
DAMPER RUBBER Price: $3.22 |
| 23 |
220AA0645 |
SCREW-PAN HEAD,6X45 This part replaces 220B0645. Price: $1.71 |
| 24 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 25 |
411AA0600 |
WASHER-PLAIN,6MM This part replaces 411B0600. Price: $2.92 |
| 26 |
43059-033 |
HOSE,CALIPER BRAKE Price: $139.66 |
| 27 |
49091-0001 |
WASHER-SEAL,10.1X14.5X1.5 This part replaces 43067-001. Price: $2.15 |
