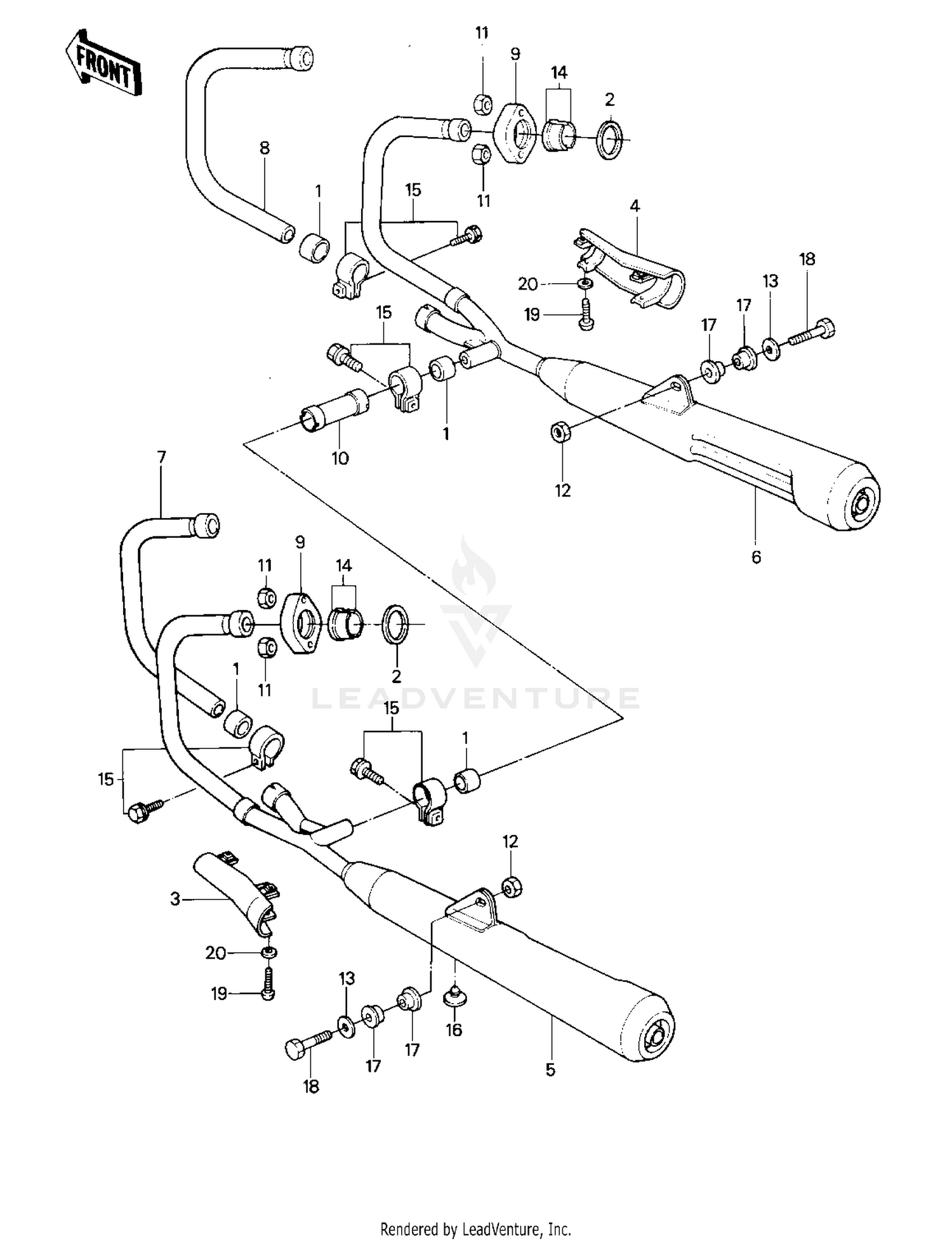

| Ref | Part Number | Description |
|---|
| 1 |
11060-1068 |
GASKET,MANIFOLD EXHAU Price: $28.82 |
| 2 |
18067-018 |
GASKET,EXHAUST PIPE HOLDER This part replaces 11009-1906. Price: $6.93 |
| 3 |
14025-1355 |
COVER,MUFFLER,LH Price: $91.10 |
| 4 |
14025-1356 |
COVER,MUFFLER,RH Price: $91.10 |
| 7 |
18088-1143 |
PIPE-EXHAUST,LH This part replaces 18049-1188. Price: $193.23 |
| 8 |
18088-1145 |
PIPE-EXHAUST,RH This part replaces 18049-1189. Price: $193.23 |
| 9 |
18069-1015 |
HOLDER-EXHAUST PIPE Price: $37.87 |
| 12 |
92210-1184 |
NUT,LOCK,10MM This part replaces 92019-021. Price: $6.11 |
| 13 |
92022-289 |
WASHER Price: $16.33 |
| 14 |
92027-1300 |
COLLAR,EXHAUST PIPE Price: $7.58 |
| 16 |
92075-015 |
DAMPER Price: $5.00 |
| 17 |
92092-010 |
BUSHING,MUFFLER FITT Price: $16.18 |
| 18 |
112N1055 |
BOLT-UPSET This part replaces 113N1055. Price: $10.35 |
