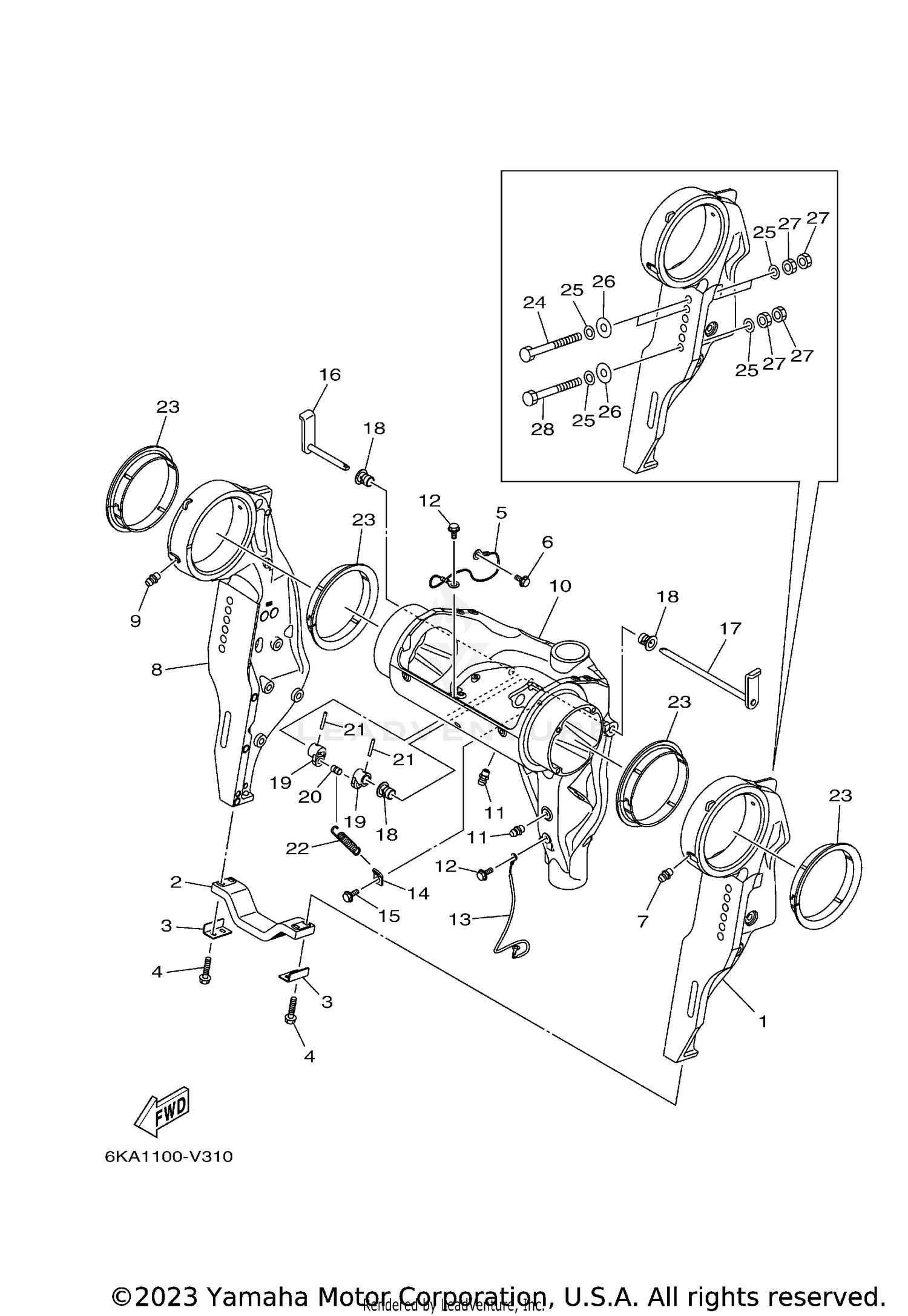

| Ref | Part Number | Description |
|---|
| 2 |
6G5-45251-02-00 |
ANODE Price: $29.40 |
| 3 |
6G5-44526-00-00 |
PLATE Price: $9.10 |
| 4 |
97E95-06525-00 |
BOLT, HEXAGON W/W Price: $1.00 |
| 5 |
6E5-82147-00-00 |
WIRE, LEAD 5 This part replaces 6U0-82127-00-00. Price: $10.70 |
| 6 |
97E95-06510-00 |
BOLT, HEXAGON W/W Price: $0.80 |
| 7 |
93700-06002-00 |
NIPPLE, GREASE Price: $8.55 |
| 9 |
93700-06002-00 |
NIPPLE, GREASE Price: $8.55 |
| 11 |
93700-06002-00 |
NIPPLE, GREASE Price: $8.55 |
| 12 |
97E95-06510-00 |
BOLT, HEXAGON W/W Price: $0.80 |
| 13 |
6KA-82147-00-00 |
WIRE, LEAD 5 Price: $16.70 |
| 14 |
6G5-43144-00-00 |
HOOK, SPRING Price: $7.15 |
| 15 |
97D95-06010-00 |
BOLT, HEXAGON DEEP Price: $0.70 |
| 16 |
6KA-43181-00-00 |
LEVER, TILT STOP 1 Price: $61.65 |
| 17 |
6KA-43185-00-00 |
LEVER, TILT STOP 2 Price: $91.95 |
| 18 |
90386-10M16-00 |
BUSH Price: $5.55 |
| 19 |
6G5-43148-00-00 |
COLLAR, DISTANCE Price: $9.45 |
| 20 |
90249-06M19-00 |
PIN Price: $9.10 |
| 21 |
91690-30020-00 |
PIN, SPRING Price: $3.55 |
| 22 |
90506-16010-00 |
SPRING, TENSION Price: $6.65 |
| 23 |
6GR-43333-00-00 |
BUSH. , SWIVEL BRACK Price: $8.55 |
| 24 |
90101-12067-00 |
BOLT (150MM) Price: $33.50 |
| 25 |
90201-13M01-00 |
WASHER, PLATE Price: $2.25 |
| 26 |
90201-12426-00 |
WASHER, PLATE Price: $2.25 |
| 27 |
95380-12600-00 |
NUT Price: $10.25 |
