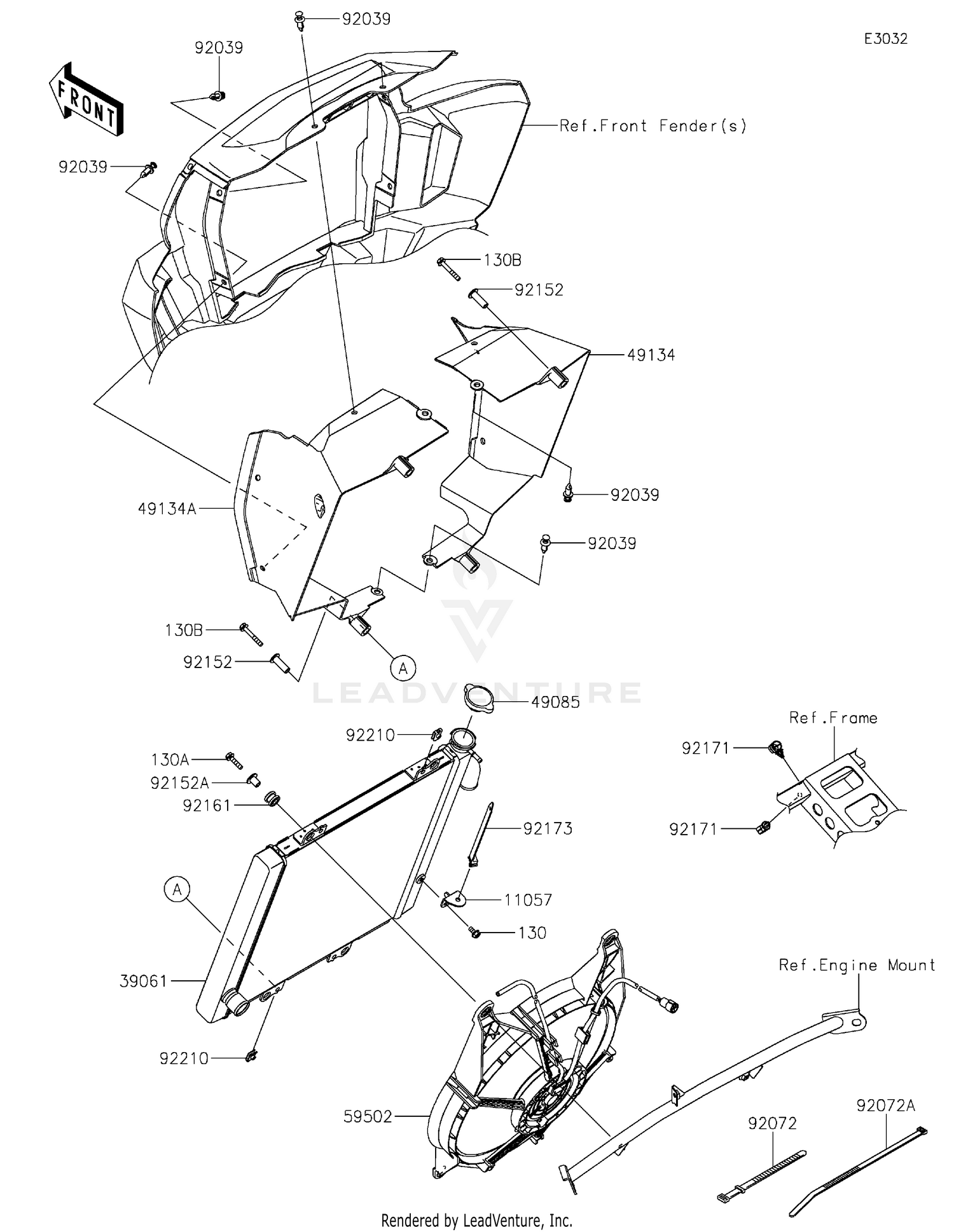

Radiator
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 130 | 130BA0612 | BOLT-FLANGED,6X12 Price: $1.72 |
| 130A | 130BA0625 | BOLT-FLANGED,6X25 Price: $1.20 |
| 11057 | 11057-2564 | BRACKET Price: $4.52 |
| 39061 | 39061-0957 | RADIATOR-ASSY,WITH CAP This part replaces 39061-0786. Price: $739.61 |
| 49085 | 49085-0005 | CAP-ASSY-PRESSURE Price: $45.60 |
| 49134 | 49134-0001 | SHROUD,RH Price: $15.84 |
| 49134A | 49134-0002 | SHROUD,LH Price: $16.07 |
| 59502 | 59502-0644 | FAN-ASSY This part replaces 59502-0628. Price: $386.90 |
| 92039 | 92039-0776 | RIVET Price: $1.19 |
| 92072 | 92072-056 | BAND,L=186 Price: $5.00 |
| 92072A | 92072-3509 | BAND,L=292.1 Price: $2.12 |
| 92152 | 92152-1215 | COLLAR Price: $7.36 |
| 92152A | 92152-1512 | COLLAR Price: $8.56 |
| 92161 | 92161-1349 | DAMPER Price: $4.68 |
| 92171 | 92171-1415 | CLAMP,13MM DIA. Price: $2.03 |
| 92173 | 92173-1980 | CLAMP Price: $2.80 |
| 92210 | 92210-0754 | NUT Price: $2.02 |
