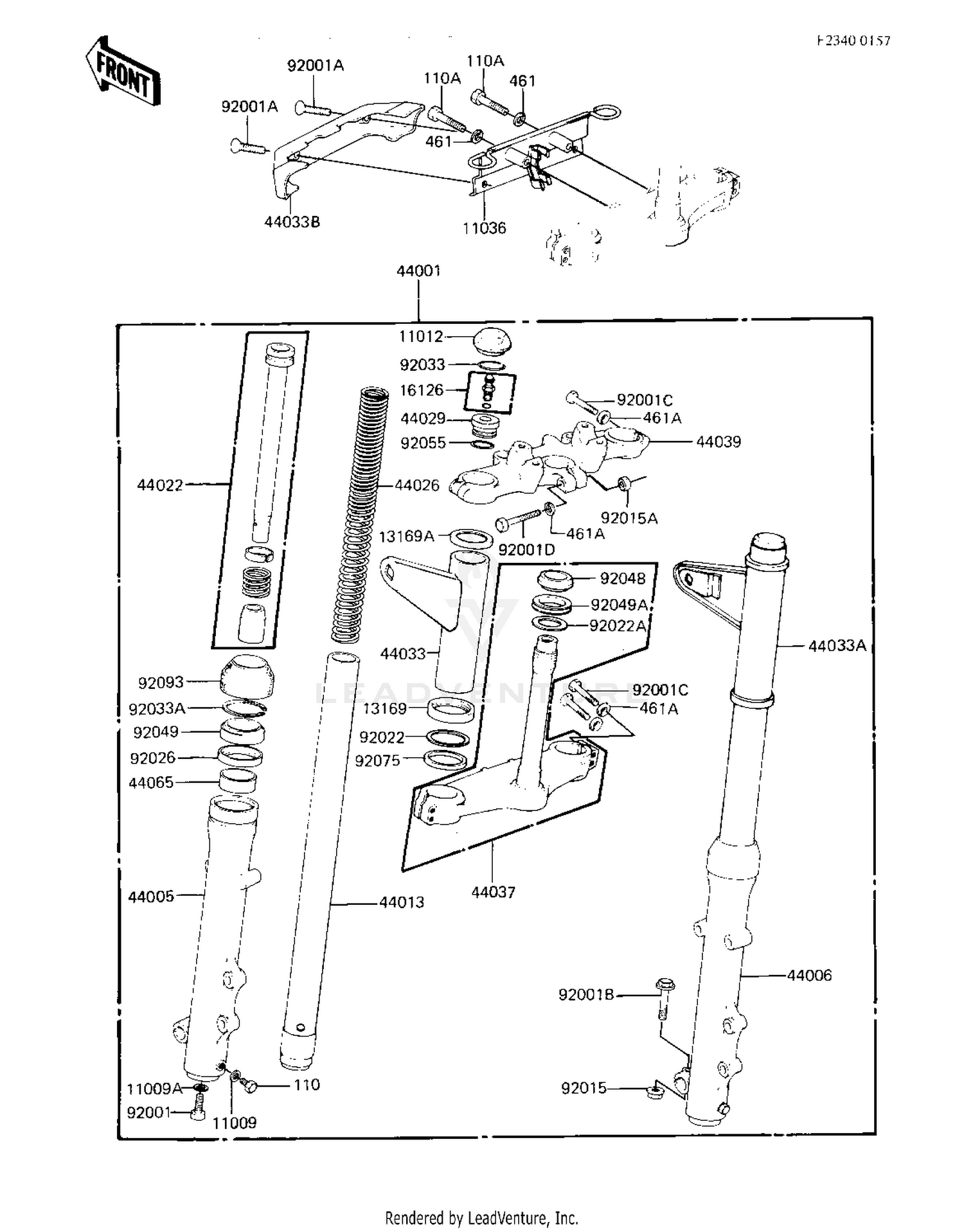

| Ref | Part Number | Description |
|---|
| 110 |
110B0608 |
BOLT HEX HEAD 6X8 Price: $0.34 |
| 110A |
112BB0640 |
BOLT-UPSET This part replaces 110C0640. Price: $4.83 |
| 461 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 11009 |
44045-052 |
GASKET,DRAIN PLUG This part replaces 44045-047. Price: $6.10 |
| 11009A |
44045-051 |
GASKET,FORK CYLINDER BOLT Price: $6.16 |
| 11012 |
11012-1564 |
CAP,FORK TOP This part replaces 11012-1151. Price: $7.55 |
| 11036 |
11036-1210 |
BRACKET-A Price: $50.64 |
| 13169 |
13169-1134 |
GUIDE,FORK COVER,LOW Price: $12.33 |
| 13169A |
13169-1135 |
GUIDE,FORK COVER,UPPE Price: $9.03 |
| 16126 |
16126-1025 |
VALVE ASSY,AIR Price: $38.91 |
| 44001 |
44001-1428 |
FORK-FRONT Price: $1,203.87 |
| 44005 |
44005-1119 |
PIPE-LEFT FORK OUTER Price: $213.90 |
| 44006 |
44006-1119 |
PIPE-RIGHT FORK OUTER Price: $213.90 |
| 44013 |
44013-1044 |
PIPE-FORK INNER Price: $380.54 |
| 44022 |
44022-1051 |
CYLINDER-FORK Price: $157.18 |
| 44026 |
44026-1077 |
SPRING,FORK INNER Price: $67.83 |
| 44029 |
44029-1019 |
SEAT,FORK SPRING Price: $12.03 |
| 44033 |
44033-1058 |
COVER-FORK,LH,BLACK Price: $245.54 |
| 44033A |
44033-1059 |
COVER-FORK,RH,BLACK Price: $223.29 |
| 44033B |
44033-1073 |
COVER-FORK Price: $50.17 |
| 44037 |
44037-1013 |
STEM,STEERING Price: $879.71 |
| 44039 |
44039-1011 |
HEAD,STEERING STEM Price: $388.32 |
| 44065 |
44065-1021 |
BUSHING-FRONT FORK Price: $24.74 |
| 92001 |
44041-078 |
BOLT,FORK CYLINDER Price: $9.89 |
| 92001A |
222AB0518 |
SCREW-CSK-RD-CROS This part replaces 222C0518. Price: $4.67 |
| 92001B |
92001-1579 |
BOLT,FLANGED,8X45 Price: $5.59 |
| 92001C |
92001-1739 |
BOLT,8X40 Price: $7.79 |
| 92001D |
92001-1740 |
BOLT,8X55 Price: $8.63 |
| 92015 |
92015-1022 |
NUT-8MM Price: $0.48 |
| 92015A |
92015-1235 |
NUT,8MM Price: $3.15 |
| 92022 |
92022-1111 |
WASHER,FORK COVER Price: $11.44 |
| 92022A |
92022-231 |
WASHER,30.5X50X0.6 Price: $4.69 |
| 92026 |
92026-1038 |
SPACER,FORK Price: $9.58 |
| 92033 |
92033-1023 |
RING-SNAP Price: $4.87 |
| 92033A |
92033-1193 |
RING-SNAP,FORK This part replaces 92033-1055. Price: $6.33 |
| 92048 |
92048-0033 |
RACE,STEERING STEM BEARING This part replaces 92047-012. Price: $14.60 |
| 92049 |
92049-1226 |
SEAL-OIL,FORK This part replaces 92049-1063. Price: $22.14 |
| 92049A |
92056-003 |
SEAL-OIL,STEERING STEM Price: $8.86 |
| 92075 |
92075-1137 |
DAMPER RUBBER,FORK Price: $8.72 |
| 92093 |
92093-1047 |
SEAL,DUST Price: $47.10 |
