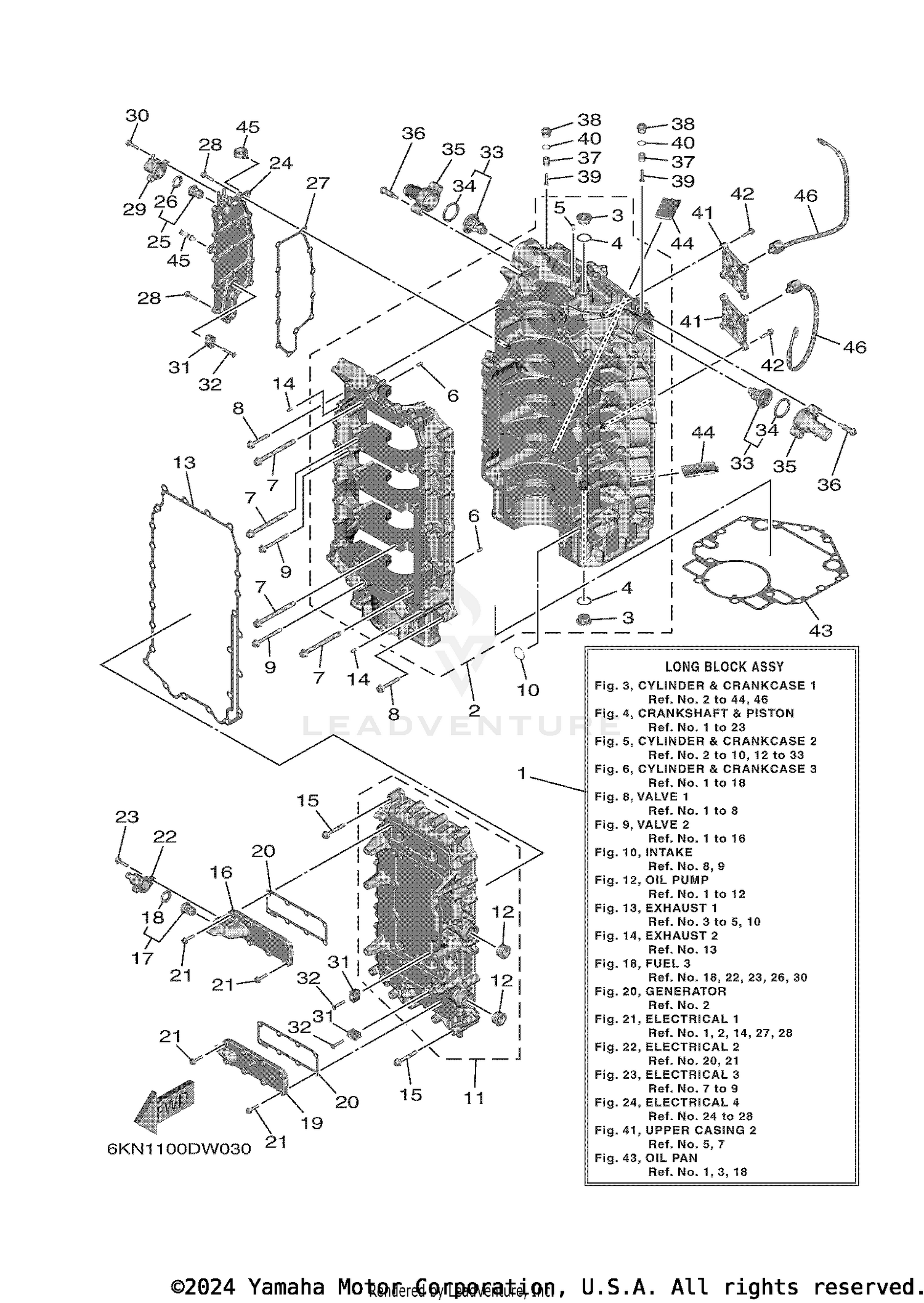

| Ref | Part Number | Description |
|---|
| 1 |
6KN-11000-00-00 |
LONG BLOCK ASSY Price: $20,337.70 |
| 2 |
6KN-15109-00-9S |
CRANKCASE ASSY Price: $17,797.05 |
| 3 |
90340-24001-00 |
PLUG, STRAIGHT SCREW Price: $45.35 |
| 4 |
90430-24239-00 |
GASKET Price: $4.15 |
| 5 |
93606-12019-00 |
PIN, DOWEL Price: $4.60 |
| 6 |
93606-12019-00 |
PIN, DOWEL Price: $4.60 |
| 7 |
6P2-15187-00-00 |
BOLT Price: $7.20 |
| 8 |
90105-08175-00 |
BOLT, FLANGE Price: $6.40 |
| 9 |
90105-08220-00 |
BOLT, FLANGE Price: $7.05 |
| 10 |
93210-26658-00 |
O-RING Price: $8.49 |
| 11 |
6KN-15411-01-9S |
COVER, CRANKCASE 1 Price: $1,073.10 |
| 12 |
90340-27001-00 |
PLUG, STRAIGHT SCREW Price: $19.99 |
| 14 |
93606-12019-00 |
PIN, DOWEL Price: $4.60 |
| 15 |
90105-08175-00 |
BOLT, FLANGE Price: $6.40 |
| 16 |
6GR-15414-01-9S |
COVER 1 Price: $208.90 |
| 17 |
6H3-12411-20-00 |
THERMOSTAT Price: $174.75 |
| 18 |
6H3-12412-10-00 |
SEAL, THERMOSTAT Price: $4.45 |
| 19 |
6GR-15423-00-9S |
COVER 2 Price: $177.45 |
| 20 |
6GR-1131B-00-00 |
GASKET, COVER Price: $16.50 |
| 21 |
90105-06037-00 |
BOLT, FLANGE Price: $3.20 |
| 22 |
6KN-12417-00-9S |
HOUSING, THERMOSTA Price: $86.50 |
| 23 |
90105-06037-00 |
BOLT, FLANGE Price: $3.20 |
| 24 |
6GR-15413-01-9S |
COVER Price: $221.95 |
| 25 |
66M-12411-01-00 |
THERMOSTAT Price: $45.60 |
| 26 |
688-12412-00-00 |
SEAL, THERMOSTAT Price: $5.65 |
| 27 |
6GR-15353-00-00 |
GASKET, DRAIN Price: $16.05 |
| 28 |
90105-06037-00 |
BOLT, FLANGE Price: $3.20 |
| 29 |
6GR-1241B-00-9S |
COVER, THERMOSTAT 2 Price: $79.15 |
| 30 |
90105-06037-00 |
BOLT, FLANGE Price: $3.20 |
| 31 |
6AW-1132P-00-00 |
ANODE 5 Price: $31.80 |
| 32 |
98780-06530-00 |
SCREW, FLAT HEAD This part replaces 90151-06069-00. Price: $6.49 |
| 33 |
6GR-12411-00-00 |
THERMOSTAT Price: $112.10 |
| 34 |
6GR-12412-00-00 |
SEAL, THERMOSTAT Price: $7.10 |
| 35 |
6GR-12413-00-00 |
COVER, THERMOSTAT Price: $48.90 |
| 36 |
90109-06286-00 |
BOLT Price: $4.90 |
| 37 |
6G8-11325-00-00 |
ANODE Price: $3.60 |
| 38 |
6G8-11197-B0-00 |
PLUG, BLIND This part replaces 6G8-11197-A0-00. Price: $15.99 |
| 39 |
98980-05025-00 |
SCREW, BIND Price: $1.40 |
| 40 |
93210-13M63-00 |
O-RING Price: $4.75 |
| 41 |
6GR-1135A-00-00 |
BRACKET Price: $42.25 |
| 42 |
90105-06037-00 |
BOLT, FLANGE Price: $3.20 |
| 43 |
6GR-11351-01-00 |
GASKET, CYLINDER Price: $263.80 |
| 44 |
6GR-14664-01-00 |
GROMMET, WATER SHU Price: $6.70 |
| 45 |
90464-20181-00 |
CLAMP Price: $4.72 |
