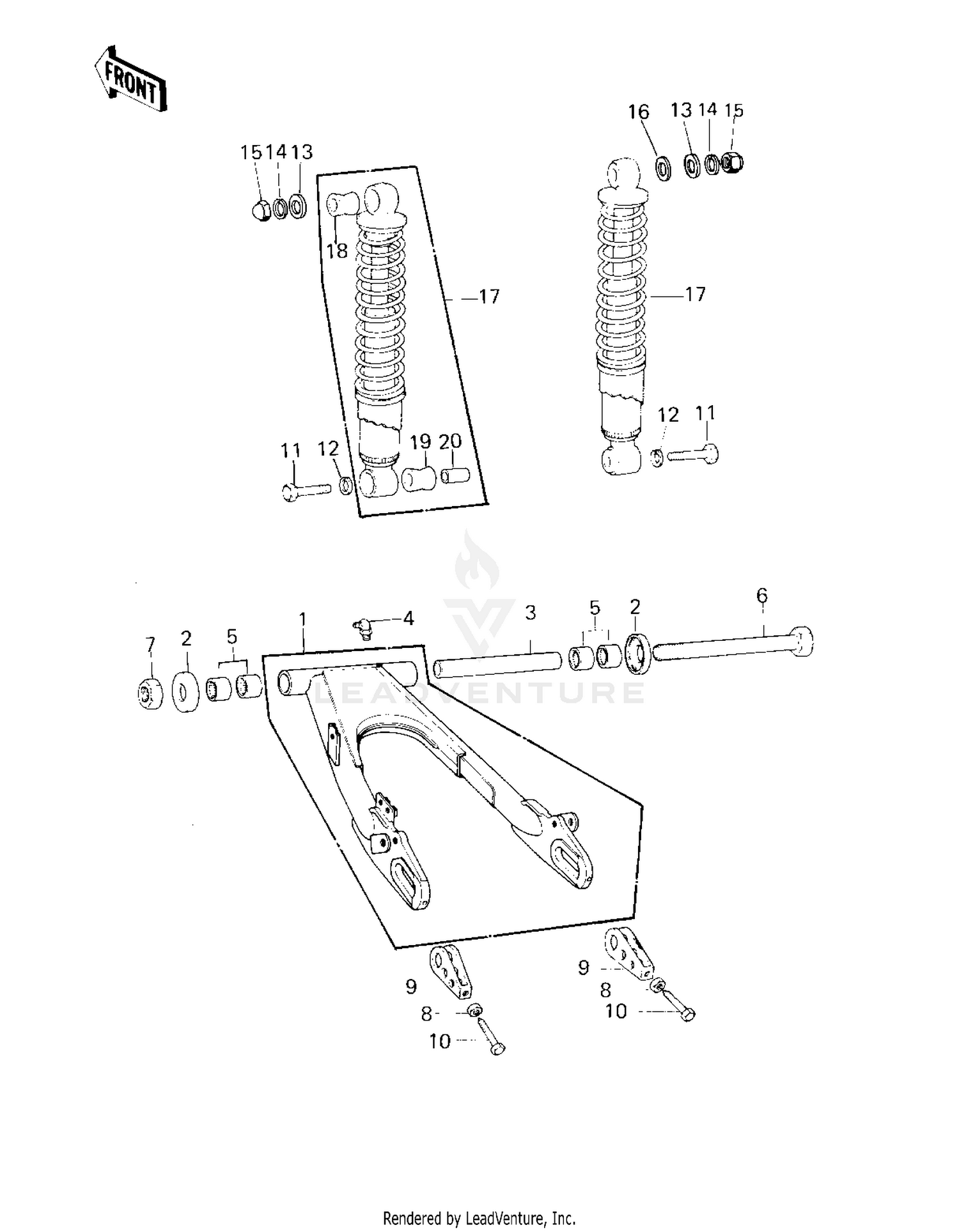

| Ref | Part Number | Description |
|---|
| 1 |
33001-1040 |
SWING ARM Price: $280.89 |
| 2 |
33035-009 |
CAP,SWING ARM Price: $17.85 |
| 3 |
42036-1014 |
SLEEVE,SWING ARM Price: $59.15 |
| 4 |
92005-002 |
GREASE NIPPLE Price: $8.07 |
| 5 |
92046-1115 |
BEARING-NEEDLE,HK2216 Price: $20.02 |
| 6 |
33032-047 |
SHAFT,SWING ARM PIVOT Price: $55.37 |
| 7 |
92019-012 |
NUT-SELF LOCKING Price: $25.70 |
| 8 |
315AA1000 |
NUT-HEX-FINE,10MM This part replaces 315B1000. Price: $0.59 |
| 9 |
33040-066 |
ADJUSTER,CHAIN Price: $30.91 |
| 10 |
92001-143 |
BOLT-CHN ADJUST 10MM Price: $19.74 |
| 11 |
112N1035 |
BOLT-UPSET This part replaces 113N1035. Price: $9.83 |
| 12 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 13 |
411AA1000 |
WASHER-PLAIN,10MM This part replaces 411B1000. Price: $0.96 |
| 14 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 15 |
92020-003 |
NUT,CAP,10MM Price: $6.52 |
| 16 |
92022-1022 |
WASHER,PLAIN Price: $5.24 |
| 17 |
45014-1042 |
SHOCK ABSBR RR Price: $415.58 |
| 18 |
45017-015 |
BUSHING,SHCK ABS RUB Price: $10.00 |
| 19 |
45017-012 |
DAMPER,SHOCKABSORBER Price: $14.90 |
