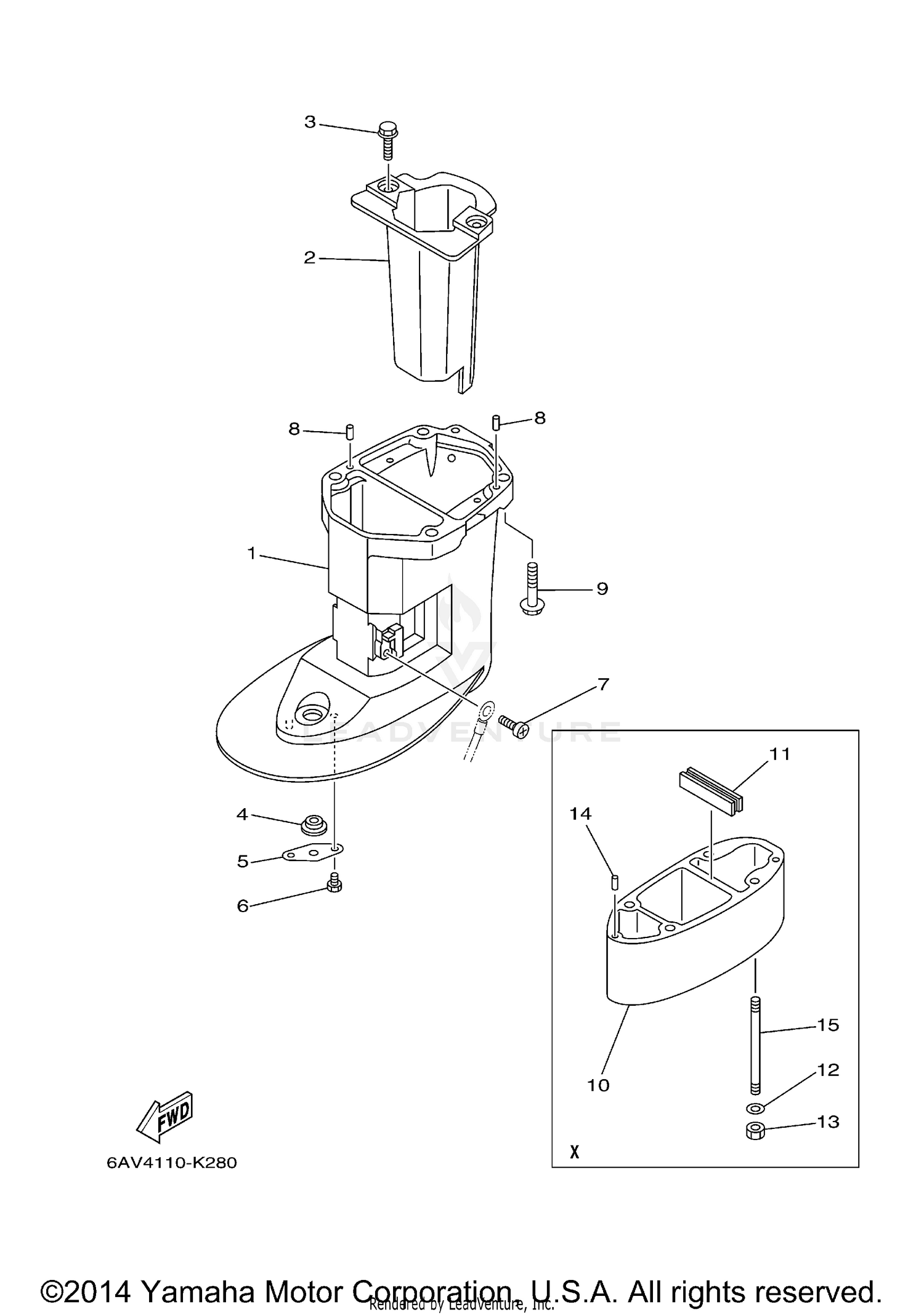

UPPER CASING
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6AU-45111-10-8D | CASING, UPPER This part replaces 6AU-45111-10-4D. Price: $355.25 |
| 2 | 6AU-14711-00-CA | MUFFLER 1 Price: $136.55 |
| 3 | 97E75-06514-00 | BOLT, HEXAGON W/W This part replaces 97575-06514-00. Price: $1.00 |
| 4 | 90480-14M54-00 | GROMMET Price: $3.55 |
| 5 | 68T-45321-00-00 | PLATE Price: $6.25 |
| 6 | 97D95-06008-00 | BOLT, HEXAGON DEEP This part replaces 97095-06008-00. Price: $0.70 |
| 7 | 97885-05008-00 | SCREW, PAN HEAD Price: $2.85 |
| 8 | 93604-10M03-00 | PIN, DOWEL This part replaces 93604-12M07-00. Price: $5.20 |
| 9 | 97E75-08535-00 | BOLT, HEXAGON W/W This part replaces 97575-08535-00. Price: $3.75 |
