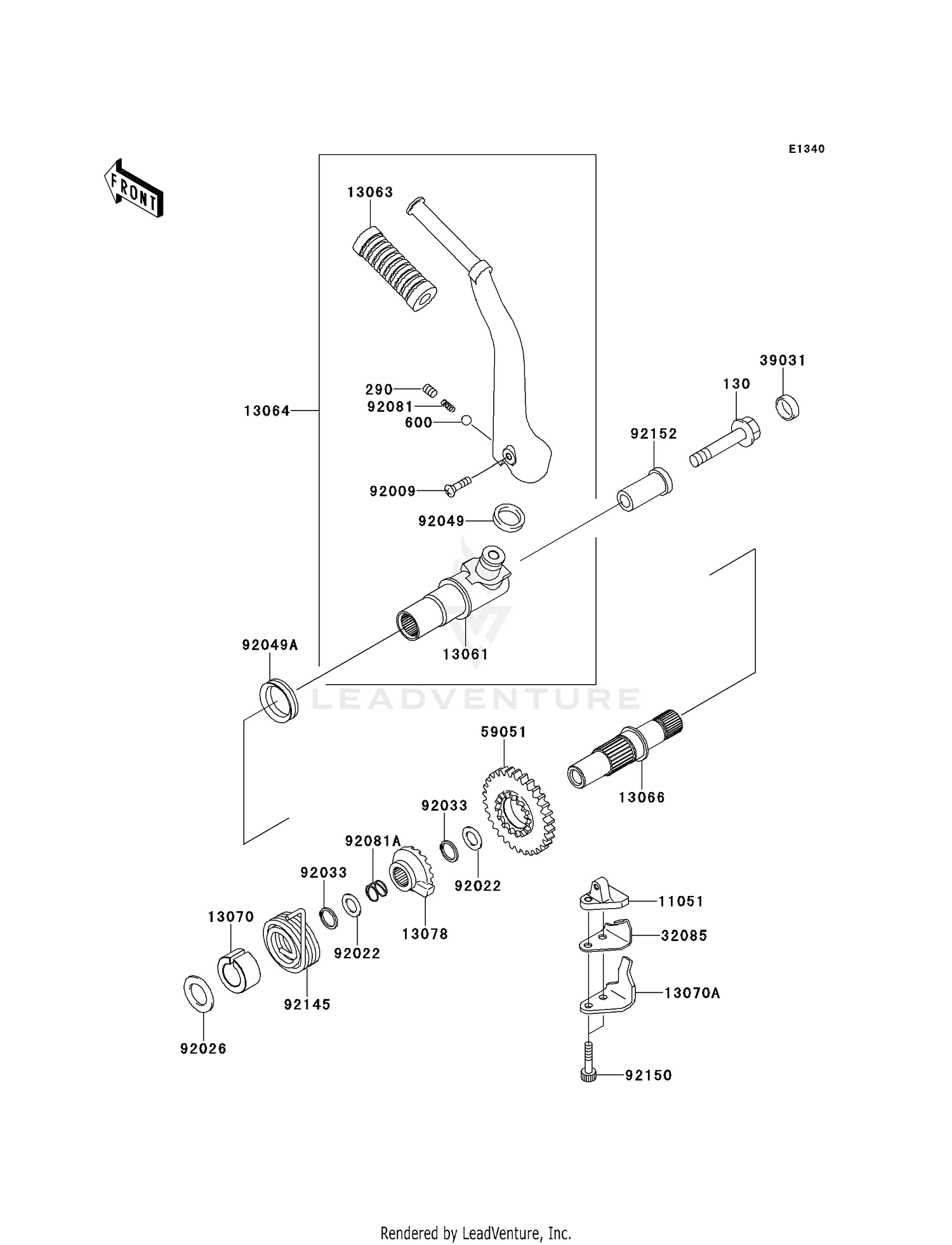

| Ref | Part Number | Description |
|---|
| 130 |
130CA1070 |
BOLT-FLANGED This part replaces 130T1070. Price: $2.70 |
| 290 |
290CA0812 |
SCREW-SET-SOCKET,8X12 This part replaces 290P0812. Price: $3.55 |
| 600 |
600A0800 |
BALL-STEEL,1/4 Price: $0.62 |
| 11051 |
11051-1210 |
BRACKET Price: $21.31 |
| 13061 |
13061-1728 |
BOSS,KICK PEDAL Price: $69.69 |
| 13063 |
92161-2388 |
DAMPER,KICK PEDAL This part replaces 13063-004. Price: $10.94 |
| 13064 |
13064-1197 |
LEVER-ASSY-KICK,PEDAL This part replaces 13064-1192. Price: $185.56 |
| 13066 |
13066-1102 |
SHAFT-KICK Price: $120.57 |
| 13070 |
13070-1334 |
GUIDE,RETURN SPRING Price: $7.90 |
| 13070A |
13070-1335 |
GUIDE Price: $9.94 |
| 13078 |
13078-1051 |
RATCHET Price: $54.31 |
| 32085 |
32085-1488 |
STOPPER Price: $26.30 |
| 39031 |
39031-1061 |
CAP-END Price: $8.68 |
| 59051 |
59051-1376 |
GEAR-SPUR,KICK SHAFT Price: $125.40 |
| 92009 |
92172-1088 |
SCREW,6X30 This part replaces 92009-1590. Price: $4.67 |
| 92022 |
92022-159 |
WASHER,25.3X30X0.5 Price: $8.58 |
| 92026 |
92026-1537 |
SPACER,KICK GUIDE Price: $2.46 |
| 92033 |
92033-026 |
RING-SNAP,24MM Price: $8.79 |
| 92049 |
92049-1406 |
SEAL-OIL Price: $5.59 |
| 92049A |
92049-1505 |
SEAL-OIL Price: $9.07 |
| 92081 |
92081-020 |
SPRING,KICK PEDAL Price: $4.26 |
| 92081A |
92081-097 |
SPRING Price: $11.80 |
| 92145 |
92145-1219 |
SPRING,KICK RETURN Price: $16.18 |
| 92150 |
92154-0505 |
BOLT,SOCKET,6X40 This part replaces 92150-1653. Price: $1.63 |
