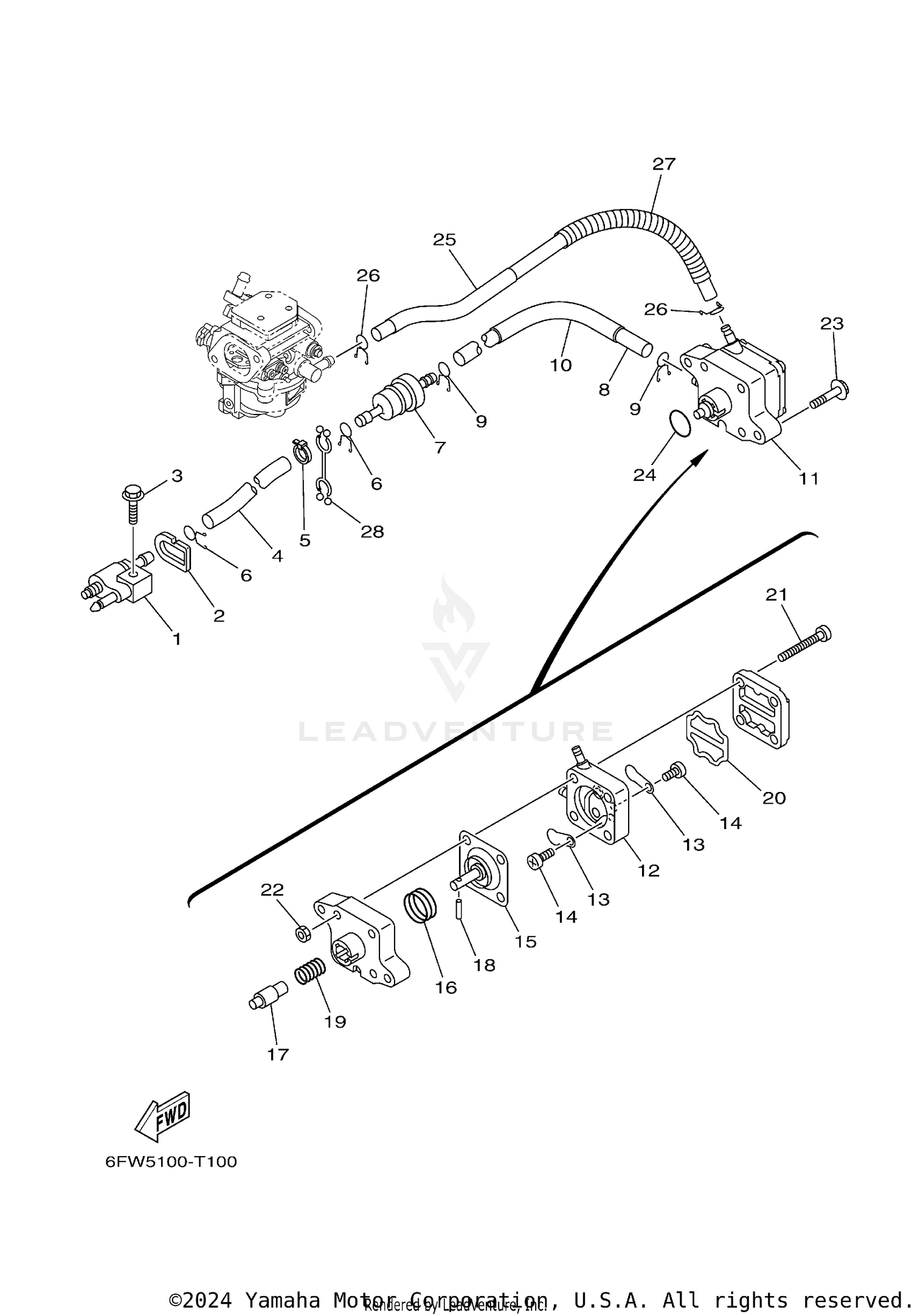

FUEL
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6G1-24304-11-00 | FUEL PIPE JOINT COMP. 1 This part replaces 6G1-24304-10-00. Price: $35.20 |
| 2 | 61N-24329-01-00 | SEAL Price: $7.30 |
| 3 | 97E95-06525-00 | BOLT, HEXAGON W/W Price: $1.00 |
| 4 | 90445-10052-00 | HOSE (L295) Price: $15.35 |
| 5 | 90465-10098-00 | CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 6 | 90467-09M09-00 | CLIP Price: $1.15 |
| 7 | 68T-24251-01-00 | STRAINER 1 Price: $24.40 |
| 8 | 90445-10051-00 | HOSE (L170) Price: $6.40 |
| 9 | 90467-09M09-00 | CLIP Price: $1.15 |
| 10 | 90445-16010-00 | HOSE (L140) Price: $6.15 |
| 11 | 68T-24410-02-00 | FUEL PUMP ASSY This part replaces 68T-24410-01-00. Price: $63.25 |
| 12 | 66M-24413-01-00 | BODY 2 Price: $15.95 |
| 13 | 62Y-24421-01-00 | VALVE, CHECK This part replaces 6A0-24421-01-00. Price: $15.30 |
| 14 | 6E7-14325-00-00 | SCREW, PAN HEAD Price: $5.00 |
| 15 | 66M-24411-02-00 | DIAPHRAGM This part replaces 66M-24411-01-00. Price: $91.20 |
| 16 | 66M-24423-00-00 | SPRING, DIAPHRAGM Price: $7.85 |
| 17 | 66M-13131-00-00 | PLUNGER Price: $37.45 |
| 18 | 66M-24374-00-00 | PIN Price: $6.15 |
| 19 | 66M-24454-00-00 | SPRING Price: $7.15 |
| 21 | 66M-24444-00-00 | SCREW Price: $5.35 |
| 22 | 95303-04600-00 | NUT This part replaces 95380-04600-00. Price: $4.75 |
| 23 | 97E95-06630-00 | BOLT, HEXAGON W/W Price: $1.10 |
| 24 | 93210-20M65-00 | O-RING Price: $5.50 |
| 25 | 6AU-24311-10-00 | PIPE, FUEL 1 Price: $28.40 |
| 26 | 90467-09M09-00 | CLIP Price: $1.15 |
| 27 | 90447-13014-00 | TUBE Price: $2.40 |
