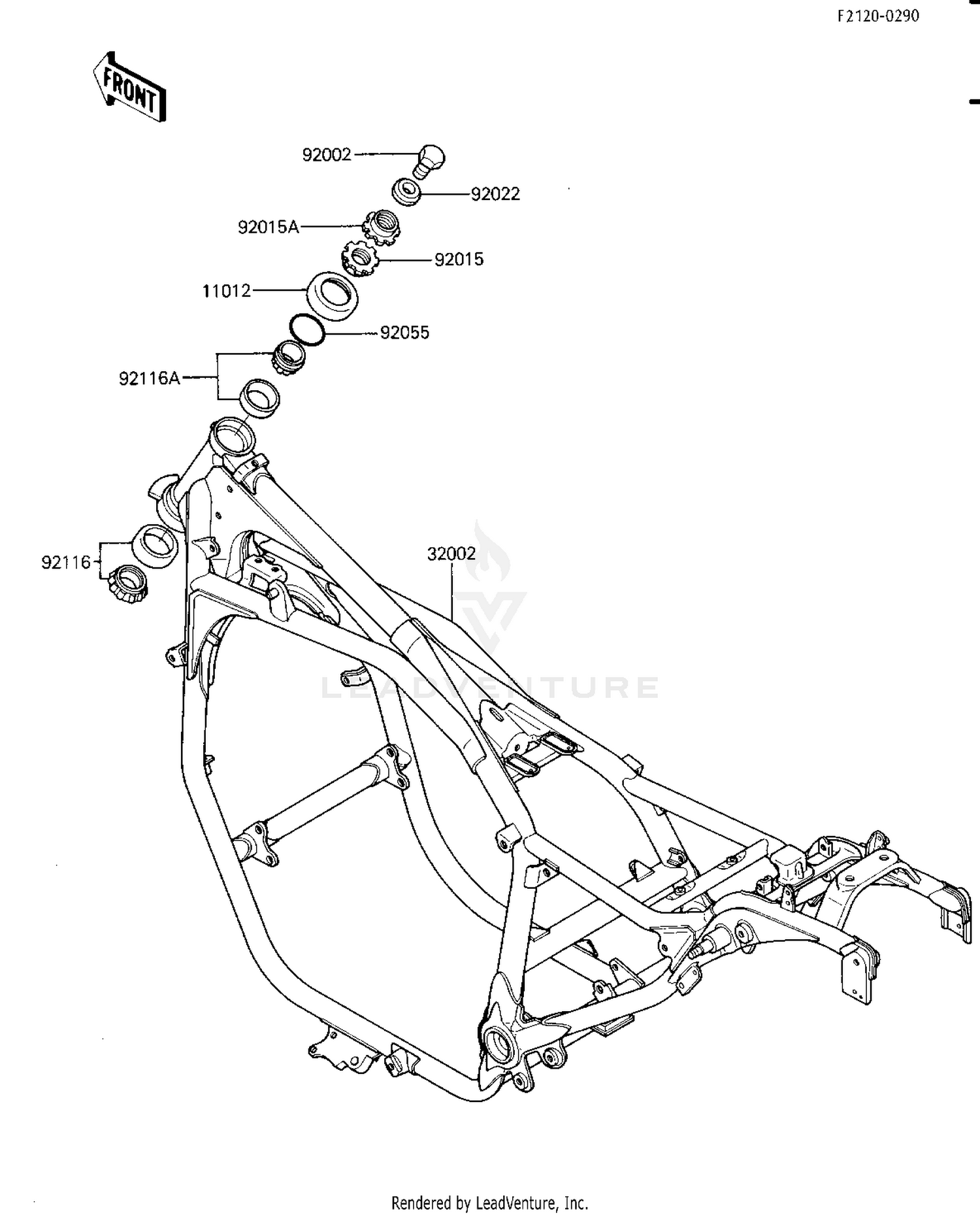

FRAME
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 11012 | 46098-017 | CAP,STEERING STEM Price: $6.16 |
| 32002 | 32002-1880 | FRAME-COMP Price: $2,033.24 |
| 92002 | 92150-1672 | BOLT,14X25 This part replaces 92002-1611. Price: $14.23 |
| 92015 | 92015-1377 | NUT,25MM,T=10 Price: $27.29 |
| 92015A | 92015-1378 | NUT,25MM,T=6 Price: $20.96 |
| 92022 | 92200-1140 | WASHER Price: $11.50 |
| 92055 | 92055-1160 | RING-O,24.7MM Price: $4.69 |
| 92116 | 92116-1009 | BEARING-ROLLER,HR320/28XJ Price: $36.32 |
