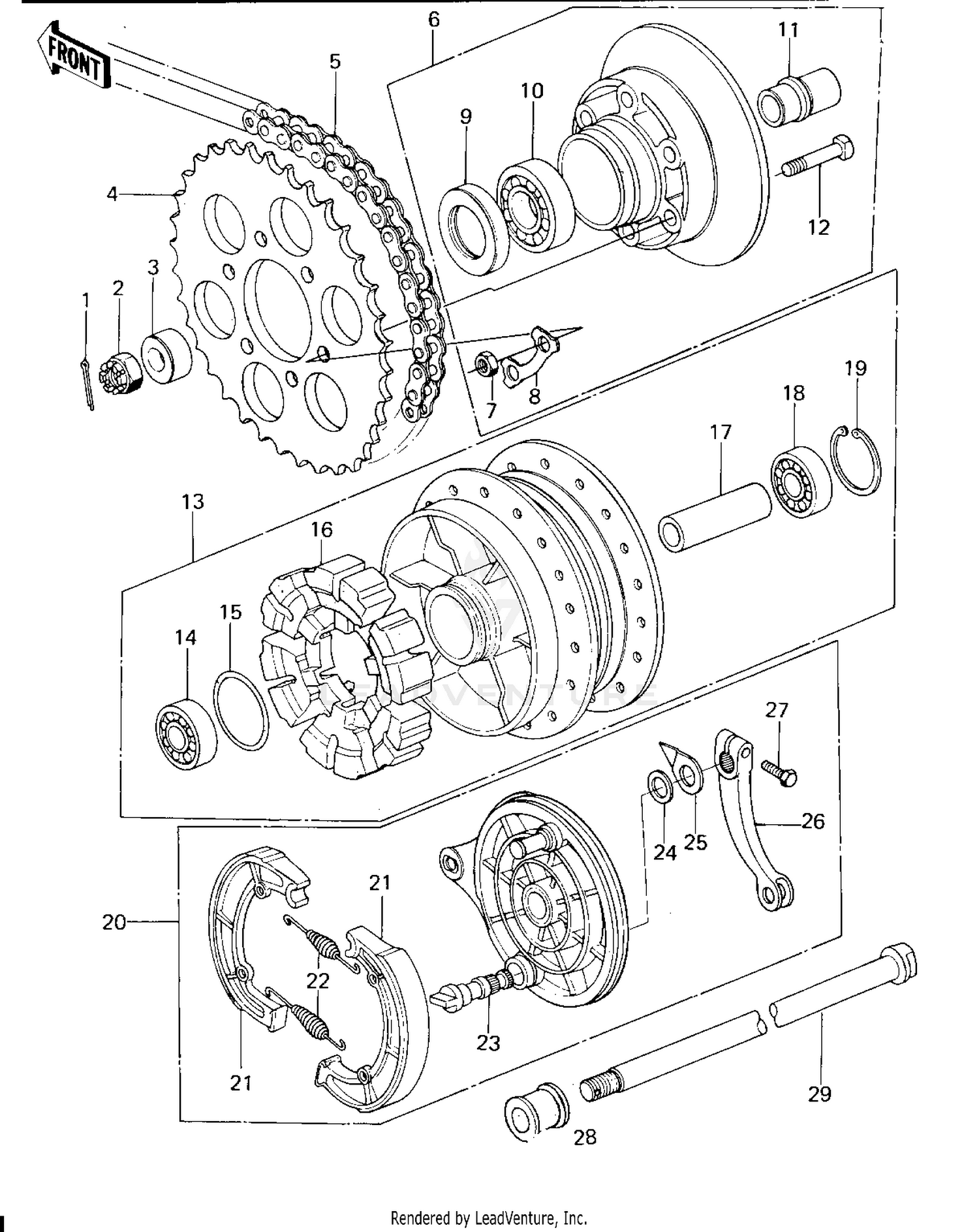

| Ref | Part Number | Description |
|---|
| 1 |
550AA4035 |
PIN-COTTER,4.0X35 This part replaces 550D4035. Price: $2.17 |
| 2 |
92015-1951 |
NUT,CASTLE,16MM This part replaces 92015-055. Price: $11.50 |
| 4 |
42041-165 |
REAR SPROCKET,42T Price: $106.78 |
| 6 |
42008-032 |
COUPLING ASSY,REAR HB Price: $171.97 |
| 7 |
42045-005 |
NUT 10MM Price: $7.98 |
| 8 |
92088-007 |
WASHER LOCK Price: $13.51 |
| 9 |
92050-076 |
OIL,SEAL,#38629 Price: $27.87 |
| 10 |
601B6305 |
BEARING-BALL,#6305C3 Price: $25.78 |
| 11 |
42036-026 |
SLEEVE,REAR HUB COUPL Price: $60.95 |
| 12 |
92003-087 |
BOLT-REAR SPROCKET Price: $10.11 |
| 13 |
42005-051 |
DRUM ASSY,REAR BRAKE Price: $438.76 |
| 14 |
601B6303 |
BEARING-BALL,#6303C3 Price: $8.29 |
| 15 |
671B2555 |
O RING,55MM Price: $6.22 |
| 16 |
42014-026 |
DAMPER,REAR HUB SHOCK Price: $94.66 |
| 17 |
42010-033 |
SPACER,REAR HUB BRG Price: $30.88 |
| 18 |
601B6303U |
BEARING-BALL Price: $26.36 |
| 19 |
92033-1042 |
RING-SNAP,47MM Price: $4.22 |
| 20 |
41035-1056 |
PANEL-ASY,RR BRK Price: $359.81 |
| 21 |
41048-1070 |
SHOE-BRAKE This part replaces 42019-012. Price: $51.67 |
| 22 |
41049-012 |
SPRING,BRAKE SHOE Price: $9.49 |
| 23 |
41050-017 |
CAM SHAFT,BRAKE Price: $35.39 |
| 24 |
41051-003 |
DUST SHIELD-BRAKE CAM Price: $4.26 |
| 25 |
41085-004 |
INDICATOR,BRAKE SHOE Price: $14.51 |
| 26 |
41053-1072 |
LEVER-BRAKE CAM This part replaces 42029-039. Price: $65.77 |
| 27 |
114G0828 |
BOLT HEX HEAD 8X28 Price: $5.21 |
