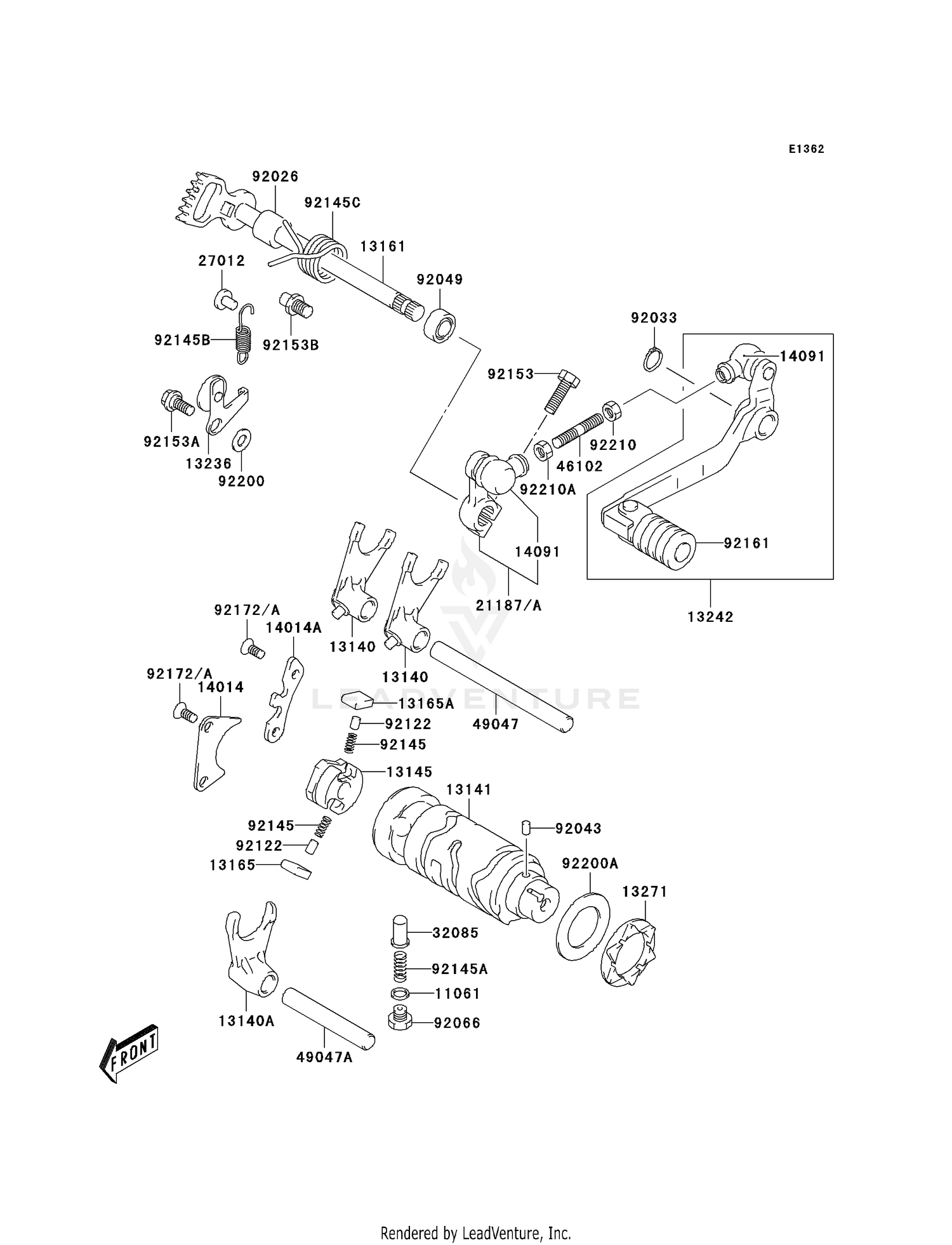

GEAR CHANGE DRUM/SHIFT FORK(S)
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 11061 | 11061-S006 | GASKET,13.8X18.8X0.4 Price: $1.09 |
| 13140 | 13140-S003 | FORK-SHIFT Price: $69.06 |
| 13140A | 13140-S004 | FORK-SHIFT Price: $63.10 |
| 13141 | 13141-S003 | DRUM-CHANGE Price: $100.17 |
| 13145 | 13145-S002 | CAM-CHANGE DRUM Price: $25.84 |
| 13161 | 13161-S002 | LEVER-COMP-CHANGE SHA Price: $54.99 |
| 13165 | 13165-S003 | PAWL Price: $8.65 |
| 13165A | 13165-S004 | PAWL Price: $7.90 |
| 13236 | 13236-S002 | LEVER-COMP Price: $10.92 |
| 13242 | 13242-S011 | LEVER-ASSY-CHANGE This part replaces 13242-S001. Price: $57.53 |
| 13271 | 13271-S021 | PLATE,GEAR SHIFT CAM Price: $18.77 |
| 14014 | 14014-S002 | PLATE-POSITION Price: $6.47 |
| 14014A | 14014-S003 | PLATE-POSITION Price: $11.41 |
| 14091 | 14091-S200 | COVER This part replaces 14091-S064. Price: $6.91 |
| 21187A | 21187-S008 | ARM-ASSY This part replaces 21187-S005. Price: $52.17 |
| 27012 | 27012-S002 | HOOK Price: $1.84 |
| 32085 | 32085-S004 | STOPPER Price: $11.41 |
| 46102 | 46102-S003 | ROD Price: $6.87 |
| 49047 | 49047-S001 | ROD-SHIFT,L:109 Price: $16.59 |
| 49047A | 49047-S002 | ROD-SHIFT Price: $21.58 |
| 92026 | 92026-S037 | SPACER,12X20X15.3 Price: $4.10 |
| 92033 | 92033-S081 | RING-SNAP This part replaces 92033-S023. Price: $2.40 |
| 92043 | 92043-S020 | PIN Price: $2.34 |
| 92049 | 92049-S074 | SEAL-OIL,12X22X9 This part replaces 92049-S020. Price: $5.75 |
| 92066 | 92066-S002 | PLUG This part replaces 92066-S016. Price: $4.69 |
| 92122 | 92122-S005 | ROLLER,5X8 Price: $1.90 |
| 92145 | 92145-S037 | SPRING Price: $1.90 |
| 92145A | 92145-S039 | SPRING Price: $1.90 |
| 92145B | 92145-S043 | SPRING Price: $2.79 |
| 92145C | 92145-S044 | SPRING Price: $5.66 |
| 92153 | 92153-S543 | BOLT This part replaces 92153-S127. Price: $1.92 |
| 92153A | 92153-S136 | BOLT,6X14.6 Price: $4.03 |
| 92153B | 92153-S139 | BOLT Price: $5.66 |
| 92161 | 92161-S057 | DAMPER,GEAR SHIFT PED Price: $6.47 |
| 92172A | 92172-S112 | SCREW Price: $2.70 |
| 92200 | 92200-S051 | WASHER Price: $2.18 |
| 92200A | 92200-S064 | WASHER,25X40X1.0 Price: $3.73 |
| 92210 | 92210-S068 | NUT This part replaces 92210-S093. Price: $1.92 |
