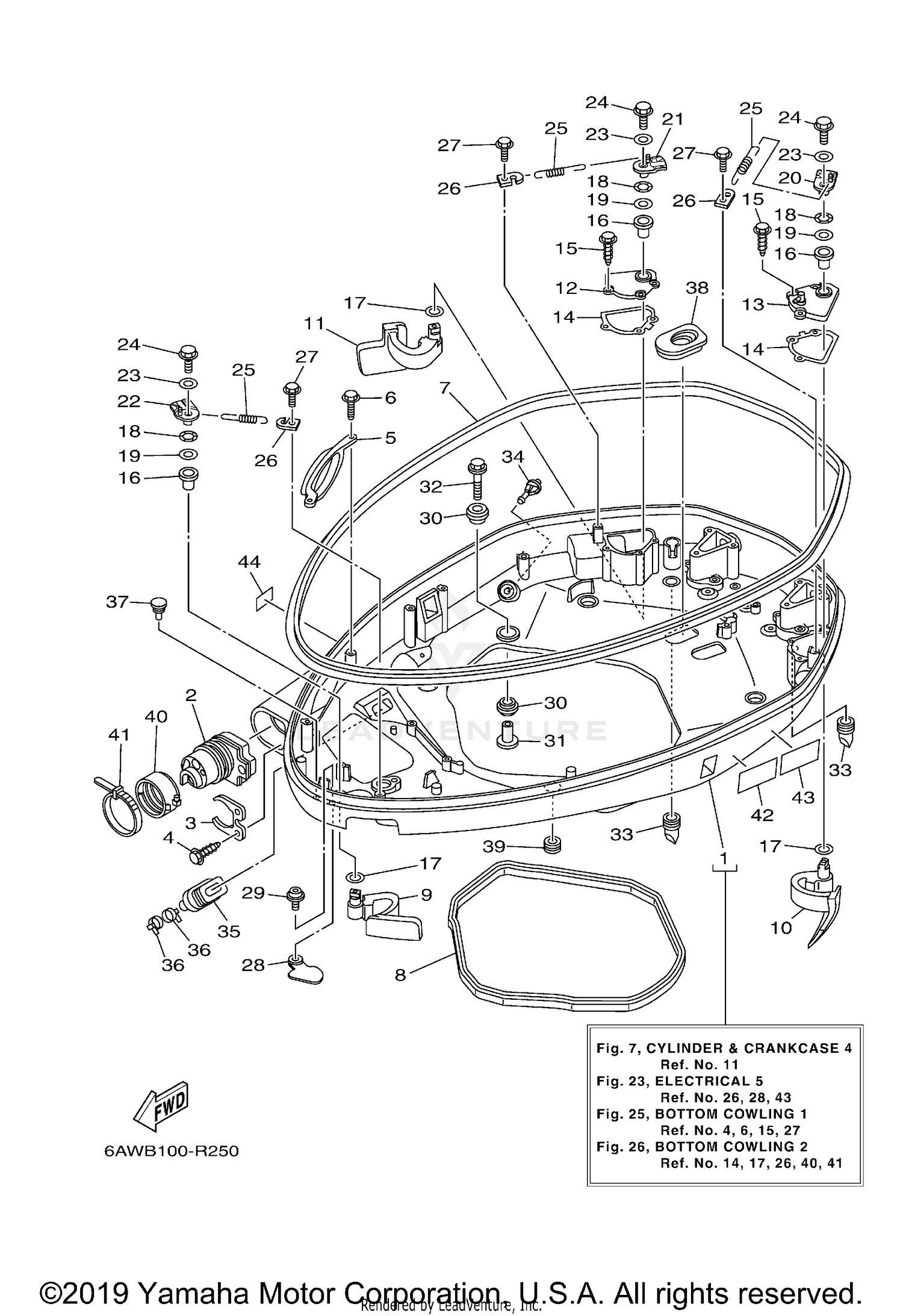

| Ref | Part Number | Description |
|---|
| 1 |
6AW-42710-02-8D |
BOTTOM COWLING ASSY Price: $1,208.05 |
| 2 |
6AW-42725-02-00 |
GROMMET This part replaces 6AW-42725-01-00. Price: $35.65 |
| 3 |
6AW-42761-00-00 |
STOPPER Price: $24.60 |
| 4 |
90109-06M86-00 |
BOLT Price: $1.81 |
| 5 |
6AW-42735-00-00 |
PROTECTOR Price: $28.00 |
| 6 |
90109-06M86-00 |
BOLT Price: $1.81 |
| 7 |
6AW-42615-00-00 |
SEAL Price: $99.70 |
| 8 |
63P-42716-01-00 |
RUBBER SEAL 1 This part replaces 63P-42716-00-00. Price: $66.05 |
| 9 |
6AW-42815-00-8D |
LEVER, CLAMP 1 Price: $100.40 |
| 10 |
6AW-42816-01-8D |
LEVER, CLAMP 2 Price: $81.55 |
| 11 |
6AW-42817-01-8D |
LEVER, CLAMP 3 Price: $81.55 |
| 12 |
6AW-42828-00-9S |
PLATE, CLAMP Price: $71.40 |
| 13 |
6AW-42829-00-9S |
PLATE, CLAMP 2 Price: $95.45 |
| 14 |
6AW-42722-00-00 |
GASKET 2 Price: $15.55 |
| 15 |
90109-06M81-00 |
BOLT Price: $2.70 |
| 16 |
90381-15002-00 |
BUSH, SOLID Price: $5.55 |
| 17 |
90202-15M37-00 |
WASHER, PLATE Price: $6.40 |
| 18 |
90206-15M18-00 |
WASHER, WAVE Price: $5.95 |
| 19 |
90201-156J2-00 |
WASHER, PLATE Price: $9.49 |
| 20 |
6AW-42818-01-00 |
LEVER, CLAMP 4 Price: $91.05 |
| 21 |
6AW-42819-01-00 |
LEVER, CLAMP 5 Price: $91.05 |
| 22 |
6AW-4281A-01-00 |
LEVER, CLAMP 6 Price: $105.35 |
| 23 |
90201-06M30-00 |
WASHER, PLATE Price: $2.55 |
| 24 |
90105-06155-00 |
BOLT, FLANGE Price: $4.90 |
| 25 |
90506-22001-00 |
SPRING, TENSION Price: $7.90 |
| 26 |
66T-43144-00-00 |
HOOK, SPRING Price: $6.25 |
| 27 |
90109-06M86-00 |
BOLT Price: $1.81 |
| 28 |
6AW-42851-00-00 |
COVER, CLAMP Price: $17.50 |
| 29 |
90111-06094-00 |
BOLT,HEX. SOCKET BUTTON Price: $4.65 |
| 30 |
90480-22M81-00 |
GROMMET Price: $4.80 |
| 31 |
90387-08M37-00 |
COLLAR Price: $11.40 |
| 32 |
90119-08187-00 |
BOLT, WITH WASHER This part replaces 90119-08M22-00. Price: $3.49 |
| 33 |
61A-42717-00-00 |
RUBBER, SEAL 2 Price: $17.60 |
| 34 |
6P2-44391-00-00 |
NIPPLE, HOSE Price: $6.75 |
| 35 |
6H1-42726-22-00 |
GROMMET This part replaces 6H1-42726-21-00. Price: $6.70 |
| 36 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 37 |
6H4-42748-01-00 |
GROMMET This part replaces 6H4-42748-00-00. Price: $1.55 |
| 38 |
6AW-42726-00-00 |
GROMMET Price: $18.00 |
| 39 |
90480-16007-00 |
GROMMET Price: $4.75 |
| 42 |
6EE-42794-41-00 |
LABEL, WARNING (GENERAL) This part replaces 6EE-42794-40-00. Price: $17.80 |
| 43 |
6EE-42794-51-00 |
LABEL, WARNING (GENERAL) This part replaces 6EE-42794-50-00. Price: $21.55 |
