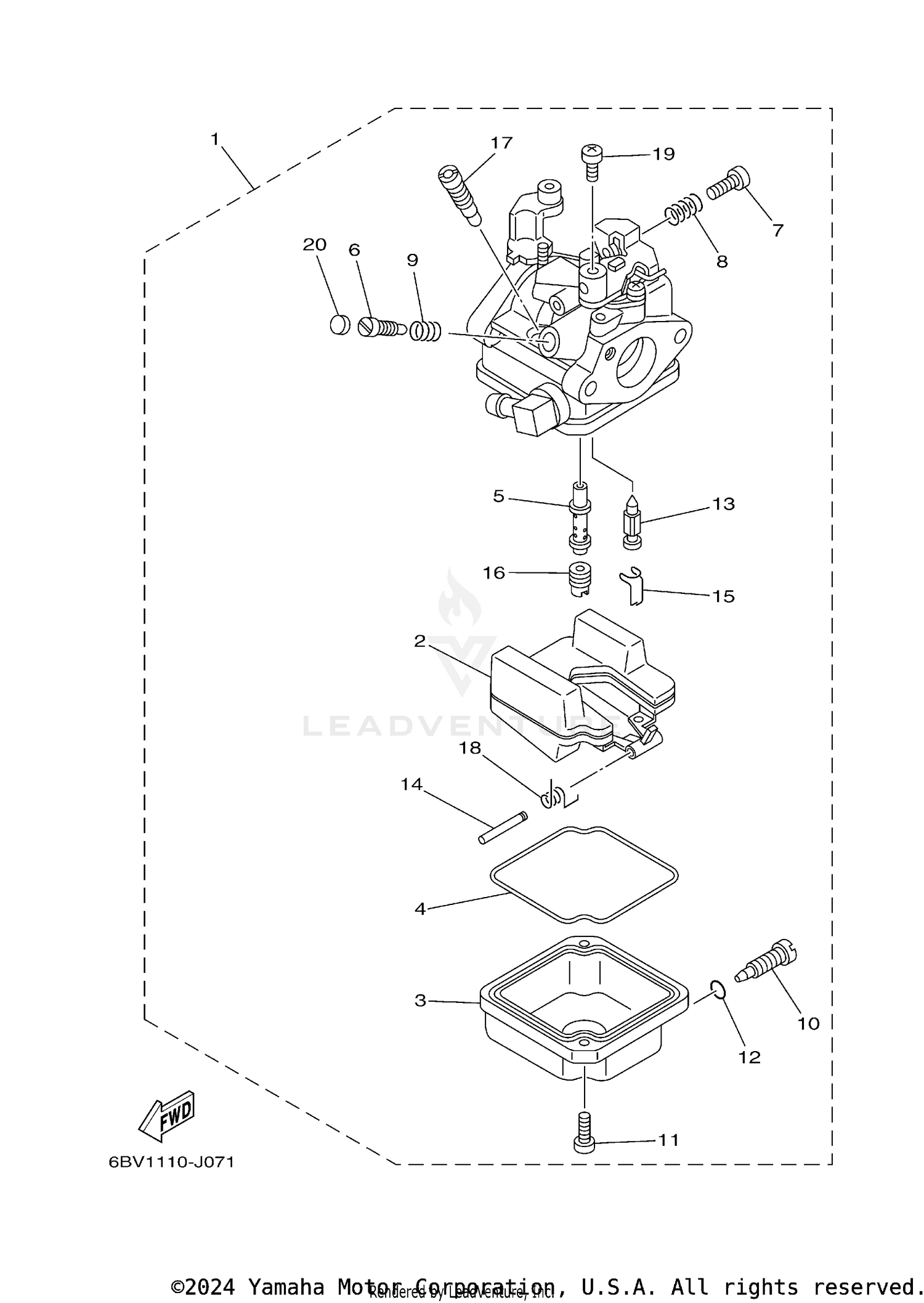

CARBURETOR
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6BX-14301-09-00 | CARBURETOR ASSY 1 This part replaces 6BX-14301-12-00. Price: $458.99 |
| 2 | 6BX-14985-00-00 | FLOAT Price: $66.05 |
| 3 | 6BX-14980-00-00 | BODY, FLOAT CHAMBER Price: $85.60 |
| 4 | 6BX-14984-00-00 | GASKET, FLOAT CHAMBER Price: $13.70 |
| 5 | 6BX-14947-01-00 | JET, NEEDLE Price: $49.65 |
| 6 | 6BX-14923-11-00 | SCREW, PILOT Price: $30.55 |
| 7 | 6BX-14523-00-00 | SCREW, STOP Price: $30.05 |
| 8 | 6BX-14555-00-00 | SPRING Price: $4.60 |
| 9 | 6BX-14935-00-00 | SPRING Price: $11.40 |
| 10 | 6BX-14991-00-00 | SCREW Price: $22.25 |
| 11 | 6BX-14592-00-00 | SCREW Price: $6.15 |
| 12 | 67F-14398-10-00 | O-RING Price: $5.55 |
| 13 | 6BX-14546-00-00 | VALVE, NEEDLE Price: $65.80 |
| 14 | 6BX-14548-00-00 | PIN, FLOAT ARM Price: $6.15 |
| 15 | 6BX-14937-00-00 | CLIP Price: $10.90 |
| 16 | 6BX-14943-17-00 | JET, MAIN (#75) Price: $25.00 |
| 17 | 6BX-14948-04-00 | JET (#42) Price: $40.70 |
| 18 | 6BX-14556-00-00 | SPRING Price: $11.40 |
| 19 | 98580-04006-00 | SCREW, PAN HEAD Price: $3.20 |
