| Ref | Part Number | Description |
|---|
| 10 |
520000949 |
Snow Guard Price: $82.99 |
| 20 |
293150101 |
Pop Rivet 3/16” This part replaces 293150101. Price: $2.09 |
| 30 |
517124300 |
Washer Price: $0.19 |
| 40 |
516008738 |
BRP Logo 48mm Price: $16.99 |
| 120 |
120CB0610 |
BOLT-SOCKET,6X10 Price: $2.49 |
| 220 |
520000829 |
Radiator Trim Price: $21.99 |
| 400 |
520000881 |
Red, RH Rear Reflector Price: $17.49 |
| 410 |
520000880 |
Red, LH Rear Reflector Price: $17.49 |
| 461 |
461DA0600 |
WASHER-SPRING,6MM Price: $0.71 |
| 1000 |
520000718 |
Yellow, RH Front Reflector Price: $16.49 |
| 1010 |
520000719 |
Yellow, LH Front Reflector Price: $16.49 |
| 1400a |
529000004 |
SCREWDRIVER - Call your local BRP dealership Price: $7.99 |
| 1400b |
529000046 |
Set Key, 16/21 mm Price: $14.49 |
| 1400c |
529000002 |
FORK WRENCH, 10/13 MM - Call your local BRP dealership Price: $8.99 |
| 1600 |
520000894 |
Tool Kit Rack Price: $14.99 |
| 1610 |
520000528 |
Latch Price: $7.89 |
| 2300 |
516006908 |
Warning Decal Price: $0.01 |
| 2400 |
516005587 |
RH Warning Decal, Safety Price: $0.01 |
| 3600a1 |
511000768 |
Support Price: $31.99 |
| 3600a2 |
511000521 |
Hitch Plate Welded Price: $16.99 |
| 3600a3 |
511001451 |
Lock Pin This part replaces 511000520. Price: $9.69 |
| 3600a4 |
371800200 |
Cotter Pin Price: $0.55 |
| 3600a5 |
516004568 |
WARNING DECAL, SECURITY - Call your local BRP dealership Price: $0.01 |
| 3600b |
205484546 |
Socket Head Screw M8 X 45 Price: $8.19 |
| 3600c |
233281466 |
Elastic Flange Nut M8 Price: $1.09 |
| 6000 |
293150101 |
Pop Rivet 3/16” This part replaces 293150101. Price: $2.09 |
| 6000 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. Price: $1.19 |

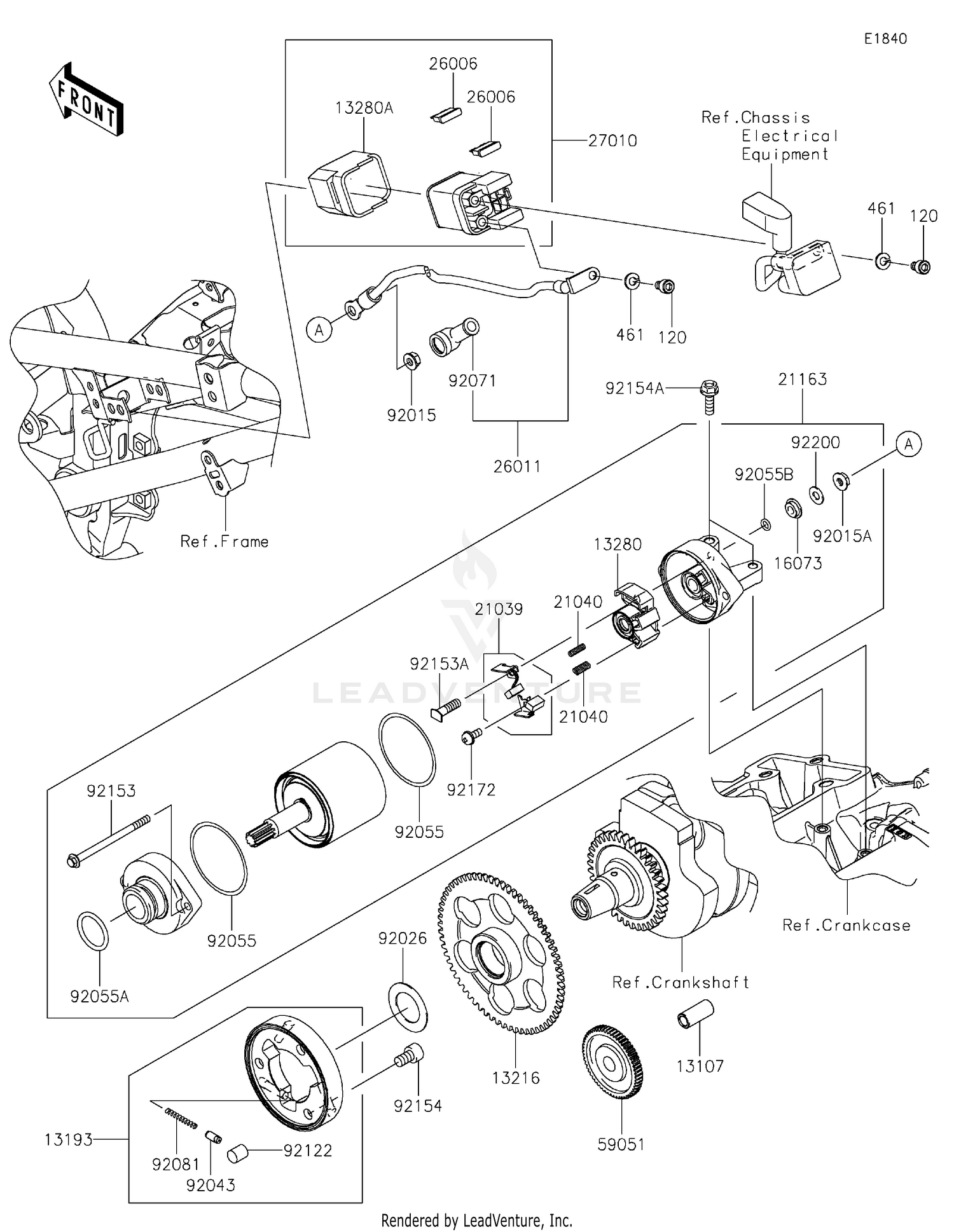

| 13107 |
13107-0743 |
SHAFT,7.8X12X26.5 Price: $12.32 |
| 13193 |
13193-1002 |
CLUTCH-ASSY-ONEWAY Price: $116.39 |
| 13216 |
13216-0880 |
GEAR-COMP,ONEWAY CLUTCH,65T Price: $139.82 |
| 13280 |
13280-0261 |
HOLDER Price: $16.72 |
| 13280A |
13280-0301 |
HOLDER Price: $14.08 |
| 16073 |
16073-0053 |
INSULATOR Price: $11.93 |
| 21039 |
21039-0005 |
BRUSH,CARBON SET Price: $68.25 |
| 21040 |
21040-0003 |
SPRING-BRUSH Price: $9.79 |
| 21163 |
21163-0717 |
STARTER-ELECTRIC Price: $497.28 |
| 26006 |
26006-1006 |
FUSE,BLADE,30A,GREEN Price: $4.96 |
| 26011 |
26011-0958 |
WIRE-LEAD,STARTER Price: $71.76 |
| 27010 |
27010-0099 |
SWITCH,MAGNETIC Price: $135.59 |
| 59051 |
59051-0722 |
GEAR-SPUR,IDLER Price: $120.15 |
| 92015 |
92015-1367 |
NUT,FLANGED,6MM Price: $3.69 |
| 92015A |
92015-1476 |
NUT,STARTER MOTOR Price: $4.31 |
| 92026 |
92026-0846 |
SPACER,25.2X40X1.0 Price: $7.24 |
| 92043 |
92043-132 |
PIN Price: $6.22 |
| 92055 |
92055-0136 |
RING-O Price: $7.75 |
| 92055A |
92055-1276 |
RING-O Price: $9.91 |
| 92055B |
92055-1370 |
RING-O,4.5X2.0 Price: $4.69 |
| 92071 |
92071-0705 |
GROMMET Price: $6.89 |
| 92081 |
92081-159 |
SPRING,COIL Price: $3.89 |
| 92122 |
92122-006 |
ROLLER Price: $6.22 |
| 92153 |
92153-1851 |
BOLT,SET Price: $7.68 |
| 92153A |
92153-1866 |
BOLT Price: $4.65 |
| 92154 |
92154-0175 |
BOLT,SOCKET,8X13 Price: $2.12 |
| 92154A |
92154-0786 |
BOLT,FLANGED,6X20 Price: $3.02 |
| 92172 |
92172-0334 |
SCREW Price: $4.65 |
