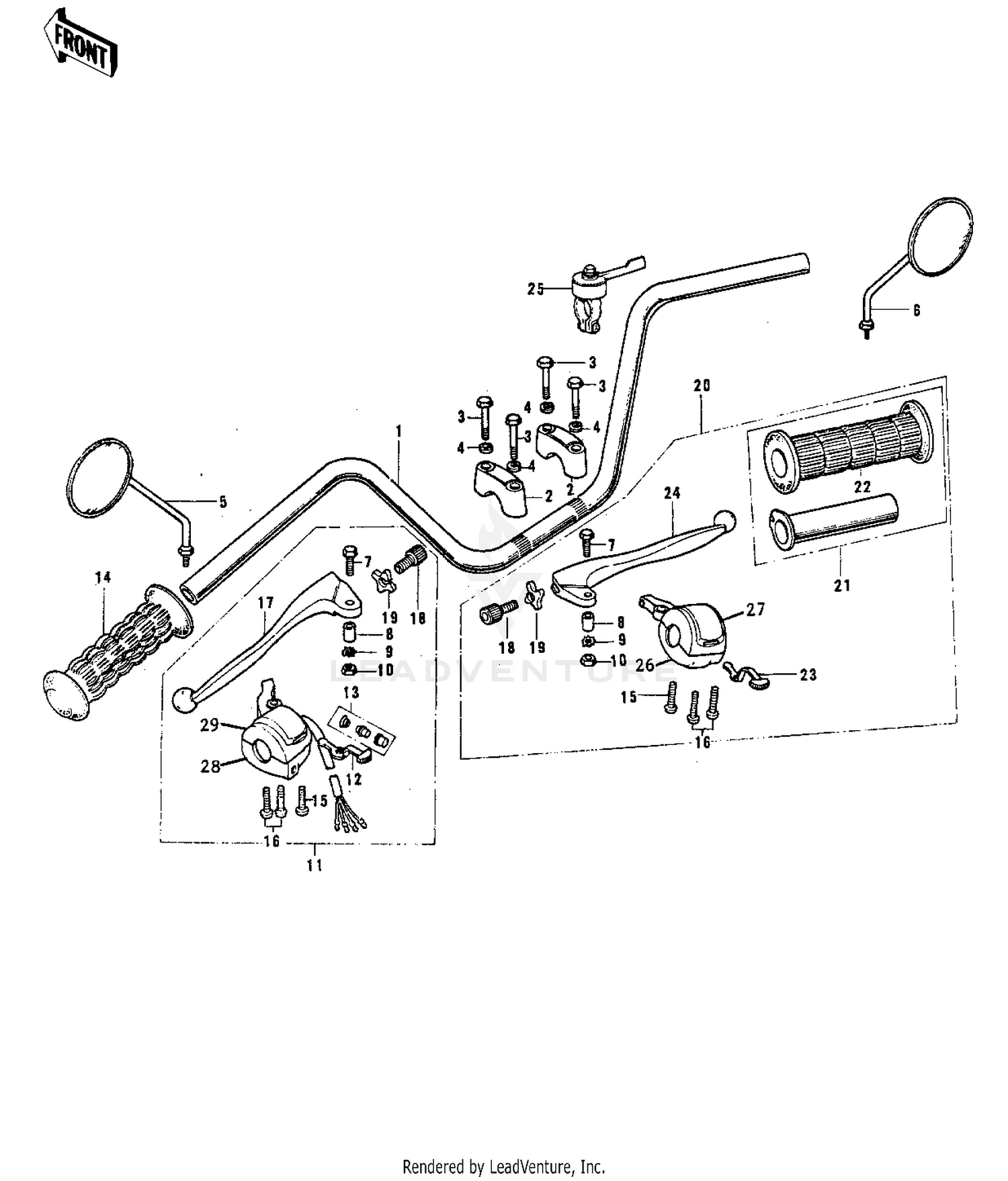

| Ref | Part Number | Description |
|---|
| 1 |
46003-033 |
HANDLEBAR Price: $54.86 |
| 2 |
46012-1252 |
HOLDER-HANDLE,UPP This part replaces 46012-004. Price: $13.44 |
| 3 |
92001-1405 |
BOLT 8X38 Price: $16.50 |
| 4 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 5 |
56003-016 |
REAR VIEW MIRROR LH Price: $83.98 |
| 7 |
92007-020 |
BOLT HEX HEAD 5X20 Price: $6.37 |
| 8 |
46059-011 |
COLLAR LEVER Price: $8.03 |
| 9 |
464EA0500 |
WASHER-TOOTHED This part replaces 464H0500. Price: $1.01 |
| 10 |
312AA0500 |
NUT-HEX,5MM This part replaces 312B0500. Price: $0.47 |
| 11 |
46074-093 |
GRIP ASSY,L.H Price: $59.58 |
| 12 |
46088-001 |
KNOB ASSY L.H SWITCH Price: $8.74 |
| 13 |
27010-1009 |
SWITCH ASSY,HORN BUTN This part replaces 46078-003. Price: $9.20 |
| 14 |
46075-020 |
RUBBER,L.H GRIP Price: $24.62 |
| 15 |
220AA0518 |
SCREW-PAN-CROS This part replaces 220B0518. Price: $4.96 |
| 16 |
220AA0520 |
SCREW-PAN-CROS This part replaces 220B0520. Price: $0.68 |
| 17 |
46092-015 |
LEVER-CLUTCH Price: $20.99 |
| 18 |
46055-010 |
SCREW,CABLE ADJUST Price: $28.86 |
| 19 |
92210-1131 |
NUT,CABLE ADJUST LOCK This part replaces 46056-001. Price: $5.55 |
| 20 |
46017-078 |
GRIP ASSY,R.H Price: $57.77 |
| 21 |
46019-024 |
GRIP ASSY,THROTTLE Price: $48.53 |
| 22 |
46061-015 |
RUBBER,R.H.GRIP Price: $23.82 |
| 23 |
46043-002 |
KNOB ASSY R.H SWITCH Price: $4.20 |
| 24 |
46058-004 |
LEVER FRONT BRAKE Price: $24.84 |
| 25 |
46109-011 |
LEVER ASSY,STARTER This part replaces 46109-013. Price: $32.82 |
| 26 |
46022-017 |
CASE,R.H LOWER Price: $32.31 |
| 27 |
46040-015 |
CASE,R.H. UPPER Price: $12.48 |
| 28 |
46077-026 |
CASE, L.H. LOWER Price: $32.31 |
