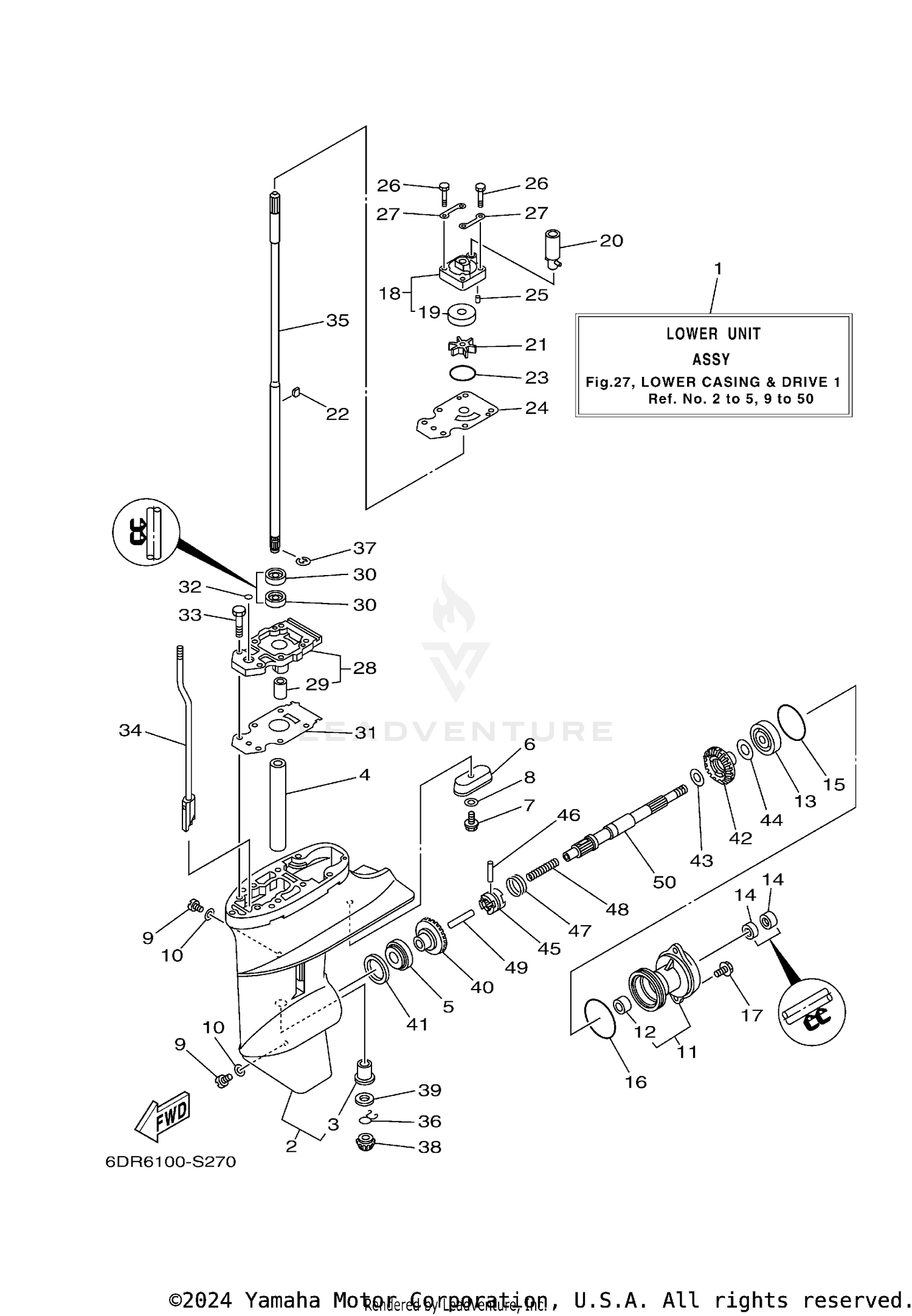

| Ref | Part Number | Description |
|---|
| 3 |
6G1-45317-09-00 |
BUSHING, DRIVE SHAFT Price: $21.95 |
| 4 |
90387-14M49-00 |
COLLAR Price: $14.90 |
| 5 |
93306-00423-00 |
BEARING This part replaces 93306-004U0-00. Price: $41.99 |
| 6 |
68T-45251-00-00 |
ANODE Price: $12.65 |
| 7 |
95D95-06016-00 |
BOLT, FLANGE DEEP Price: $0.95 |
| 8 |
92990-06300-00 |
WASHER, INTERNAL TOOTH Price: $2.70 |
| 9 |
90340-08002-00 |
PLUG, STRAIGHT SCREW Price: $12.75 |
| 10 |
90430-08003-00 |
GASKET Price: $1.55 |
| 12 |
6G1-45362-09-00 |
BUSHING Price: $21.95 |
| 13 |
93306-00423-00 |
BEARING This part replaces 93306-004U0-00. Price: $41.99 |
| 14 |
93101-15074-00 |
OIL SEAL Price: $8.10 |
| 15 |
93210-49046-00 |
O-RING Price: $8.49 |
| 16 |
93210-53679-00 |
O-RING This part replaces 93210-53M08-00. Price: $4.65 |
| 17 |
97E95-06516-00 |
BOLT, HEXAGON W/W Price: $4.20 |
| 18 |
63V-44301-00-00 |
WATER PUMP HOUSING COMP. Price: $40.35 |
| 19 |
63V-44322-00-00 |
INSERT, CARTRIDGE Price: $17.15 |
| 21 |
68T-44352-00-00 |
IMPELLER Price: $34.55 |
| 22 |
664-44338-00-00 |
KEY, WOODRUFF Price: $10.70 |
| 23 |
93210-44704-00 |
O-RING This part replaces 93210-44398-00. Price: $8.49 |
| 24 |
68T-44323-00-00 |
OUTER PLATE, CARTRIDGE Price: $7.00 |
| 25 |
93604-10M03-00 |
PIN, DOWEL This part replaces 93604-12M07-00. Price: $5.20 |
| 26 |
97D95-08045-00 |
BOLT, HEXAGON DEEP Price: $1.65 |
| 27 |
63V-44328-01-00 |
PLATE Price: $4.15 |
| 28 |
68T-45331-01-CA |
HOUSING, BEARING Price: $71.25 |
| 29 |
6G1-45316-09-00 |
BUSHING, DRIVE SHAFT Price: $22.90 |
| 30 |
93101-11M23-00 |
OIL SEAL Price: $7.15 |
| 31 |
68T-45315-A0-00 |
PACKING, LOWER CASING Price: $15.50 |
| 32 |
93210-06ME6-00 |
O-RING Price: $3.55 |
| 33 |
97095-08025-00 |
BOLT This part replaces 97080-08025-00. Price: $9.49 |
| 34 |
68T-44150-01-00 |
SHIFT CAM ASSY Price: $100.45 |
| 36 |
90467-09M05-00 |
CLIP Price: $4.15 |
| 37 |
99080-07600-00 |
CLIP This part replaces 99001-07600-00. Price: $3.55 |
| 38 |
68T-45551-00-00 |
PINION (13T) Price: $71.45 |
| 40 |
68T-45560-00-00 |
GEAR 1 (27T) Price: $173.50 |
| 42 |
68T-45571-00-00 |
GEAR 2 (27T) Price: $162.70 |
| 43 |
90201-15M89-00 |
WASHER, PLATE Price: $5.65 |
| 45 |
68T-45631-00-00 |
CLUTCH, DOG Price: $76.40 |
| 46 |
6G1-45632-00-00 |
PIN, CROSS Price: $13.50 |
| 47 |
654-45633-00-00 |
RING, CROSS PIN Price: $5.55 |
| 48 |
90501-140A1-00 |
SPRING, COMPRESSION Price: $5.55 |
| 49 |
6G1-45635-00-00 |
PLUNGER, SHIFT Price: $9.45 |
