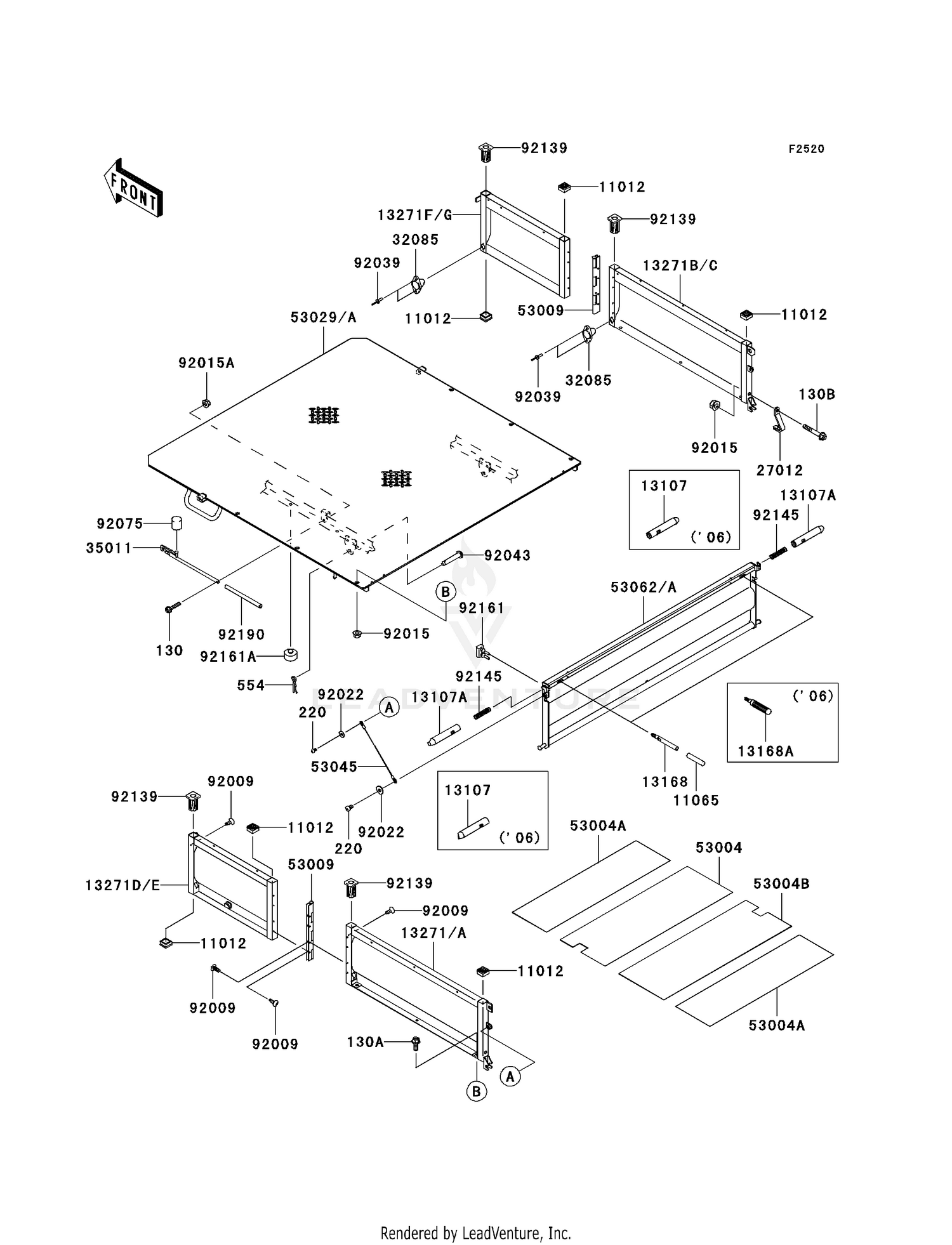

| Ref | Part Number | Description |
|---|
| 130 |
130BA0630 |
BOLT-FLANGED,6X30 Price: $1.46 |
| 130A |
130BB0820 |
BOLT-FLANGED,8X20 Price: $0.84 |
| 130B |
130BB0850 |
BOLT-FLANGED,8X50 Price: $4.73 |
| 220 |
220AB0610 |
SCREW-PAN-CROS,6X10 Price: $1.81 |
| 11012 |
11012-1784 |
CAP Price: $6.32 |
| 13107 |
13107-0001 |
SHAFT Price: $71.54 |
| 13168A |
13168-7501 |
LEVER Price: $22.02 |
| 13271 |
13271-7532-398 |
PLATE,SIDE,RR,LH,W.GR Price: $162.42 |
| 13271A |
13271-7532-467 |
PLATE,SIDE,RR,LH,A.RE Price: $162.42 |
| 13271B |
13271-7534-398 |
PLATE,SIDE,RR,RH,W.GR Price: $162.42 |
| 13271C |
13271-7534-467 |
PLATE,SIDE,RR,RH,A.RE Price: $162.42 |
| 13271D |
13271-7535-398 |
PLATE,SIDE,FR,LH,W.GR Price: $116.97 |
| 13271E |
13271-7535-467 |
PLATE,SIDE,FR,LH,A.RE Price: $116.97 |
| 13271F |
13271-7537-398 |
PLATE,SIDE,FR,RH,W.GR Price: $116.97 |
| 13271G |
13271-7537-467 |
PLATE,SIDE,FR,RH,A.RE Price: $116.97 |
| 27012 |
27012-0022 |
HOOK,TAIL GATE Price: $6.43 |
| 32085 |
32085-7501 |
STOPPER Price: $6.96 |
| 35011 |
35011-1648 |
STAY,CARRIER STOPPER Price: $28.90 |
| 53004 |
53004-1158 |
MAT Price: $121.71 |
| 53004A |
53004-1160 |
MAT Price: $107.03 |
| 53004B |
53004-7501 |
MAT Price: $111.97 |
| 53009 |
53009-7501 |
HINGE,CARRIER Price: $46.65 |
| 53029 |
53029-7512-398 |
CARRIER,W.GREEN Price: $860.03 |
| 53029A |
53029-7512-467 |
CARRIER,A.RED Price: $984.47 |
| 53045 |
53045-0031 |
HOOK-ASSY,TAIL GATE This part replaces 53045-0004. Price: $29.74 |
| 53062 |
53062-7503-398 |
GATE-TAIL,W.GREEN Price: $416.34 |
| 53062A |
53062-7503-467 |
GATE-TAIL,A.RED Price: $444.42 |
| 92009 |
92009-1166 |
SCREW,TAPPING,6X16 Price: $5.52 |
| 92015 |
92210-0004 |
NUT,FLANGED,8MM This part replaces 92015-1408. Price: $5.38 |
| 92015A |
92015-1675 |
NUT,LOCK,FLANGED,6MM Price: $4.31 |
| 92022 |
92022-1545 |
WASHER,7X18X1.2 Price: $1.03 |
| 92039 |
92039-1150 |
RIVET Price: $3.92 |
| 92043 |
92043-1428 |
PIN,12X65 Price: $10.09 |
| 92075 |
92075-1817 |
DAMPER Price: $6.22 |
| 92139 |
92139-7501 |
BUSHING,REAR SCREEN Price: $4.67 |
| 92145 |
92145-1215 |
SPRING,TENSIONER Price: $4.63 |
| 92161 |
92161-0258 |
DAMPER Price: $4.16 |
| 92161A |
92161-7510 |
DAMPER Price: $4.36 |
| 92190 |
92190-1401 |
TUBE,13X16X200 Price: $5.25 |
