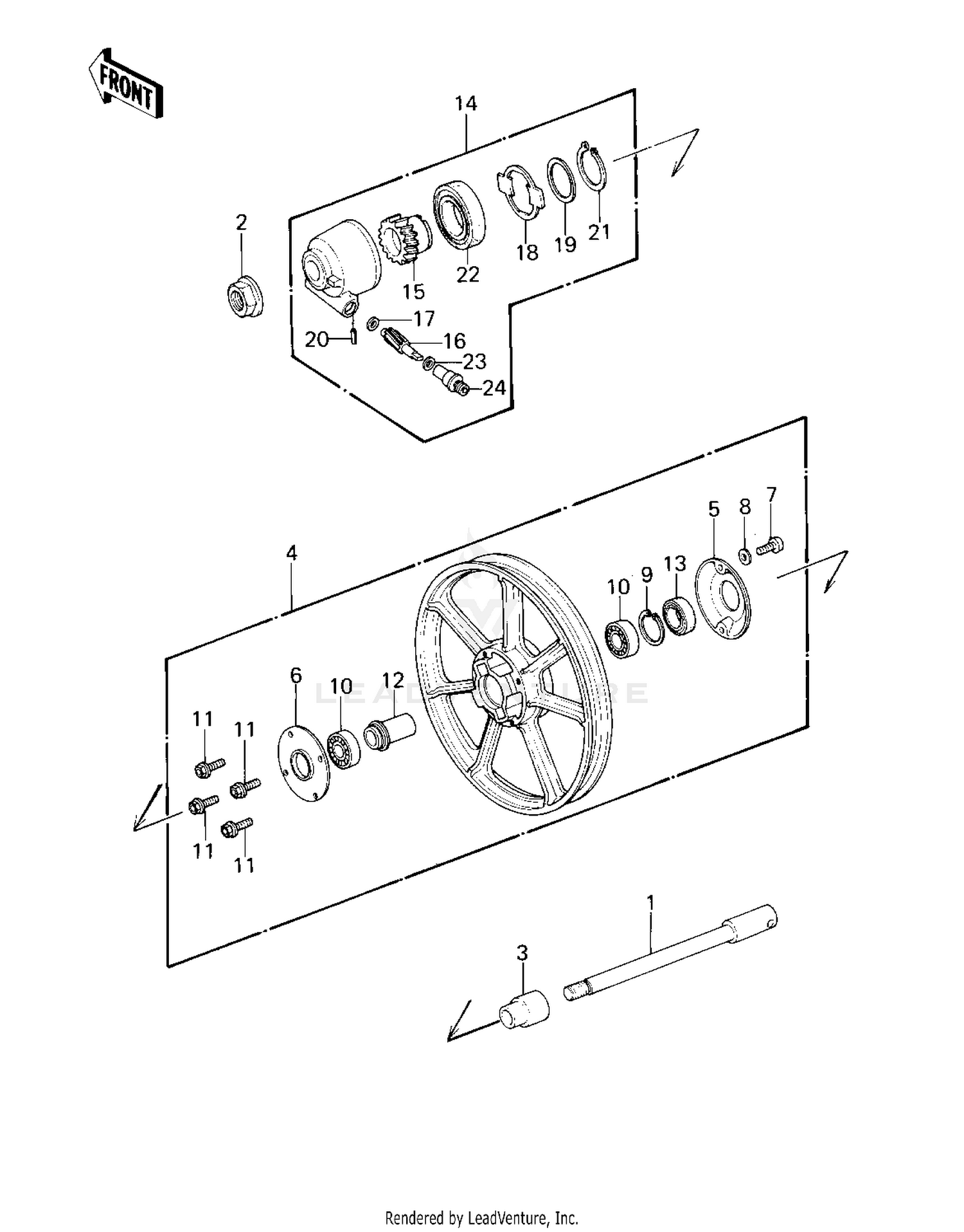

| Ref | Part Number | Description |
|---|
| 1 |
41068-1009 |
AXLE,FRONT,L=204M/M Price: $64.68 |
| 2 |
92015-1407 |
NUT,14MM Price: $9.91 |
| 3 |
92027-1085 |
COLLAR,FRONT AXLE Price: $32.10 |
| 4 |
41073-1041 |
SOLID WHEEL ASSY,FRNT Price: $737.46 |
| 5 |
14025-1042 |
COVER,DUST,R.H. Price: $10.53 |
| 6 |
14025-1043 |
COVER,DUST,L.H. Price: $34.59 |
| 7 |
220AA0514 |
SCREW-PAN-CROS,5X14 This part replaces 220B0514. Price: $4.43 |
| 8 |
410AA0500 |
WASHER-PLAIN-SMALL This part replaces 411B0500. Price: $0.47 |
| 9 |
92033-1041 |
RING-SNAP,42MM Price: $6.16 |
| 10 |
601B6302Z |
BEARING BALL #6302Z Price: $27.38 |
| 11 |
92001-1095 |
BOLT,FLANGED,8X28 Price: $6.57 |
| 12 |
92027-1171 |
COLLAR,FRONT WHEEL Price: $14.92 |
| 13 |
92052-011 |
OIL SEAL,WTC22427 Price: $25.75 |
| 14 |
41078-1005 |
GEAR BOX ASSY,METER Price: $178.85 |
| 15 |
41060-1015 |
GEAR,SPEEDOMETER,26T Price: $21.14 |
| 16 |
41060-1016 |
PINION,SPEEDOMETER,9T Price: $21.74 |
| 17 |
41063-001 |
WASHER,5.1X9X0.4 Price: $4.69 |
| 18 |
41064-1005 |
RECEIVER,SPEED GEAR Price: $11.21 |
| 19 |
41065-006 |
WASHER THRUST Price: $2.88 |
| 20 |
41082-001 |
PIN,SPRING Price: $3.92 |
| 21 |
480J2200 |
CIRCLIP-TYPE-C,22MM Price: $5.00 |
| 22 |
92049-1057 |
SEAL-OIL,BJN30427-C3 Price: $9.28 |
| 23 |
41063-001 |
WASHER,5.1X9X0.4 Price: $4.69 |
