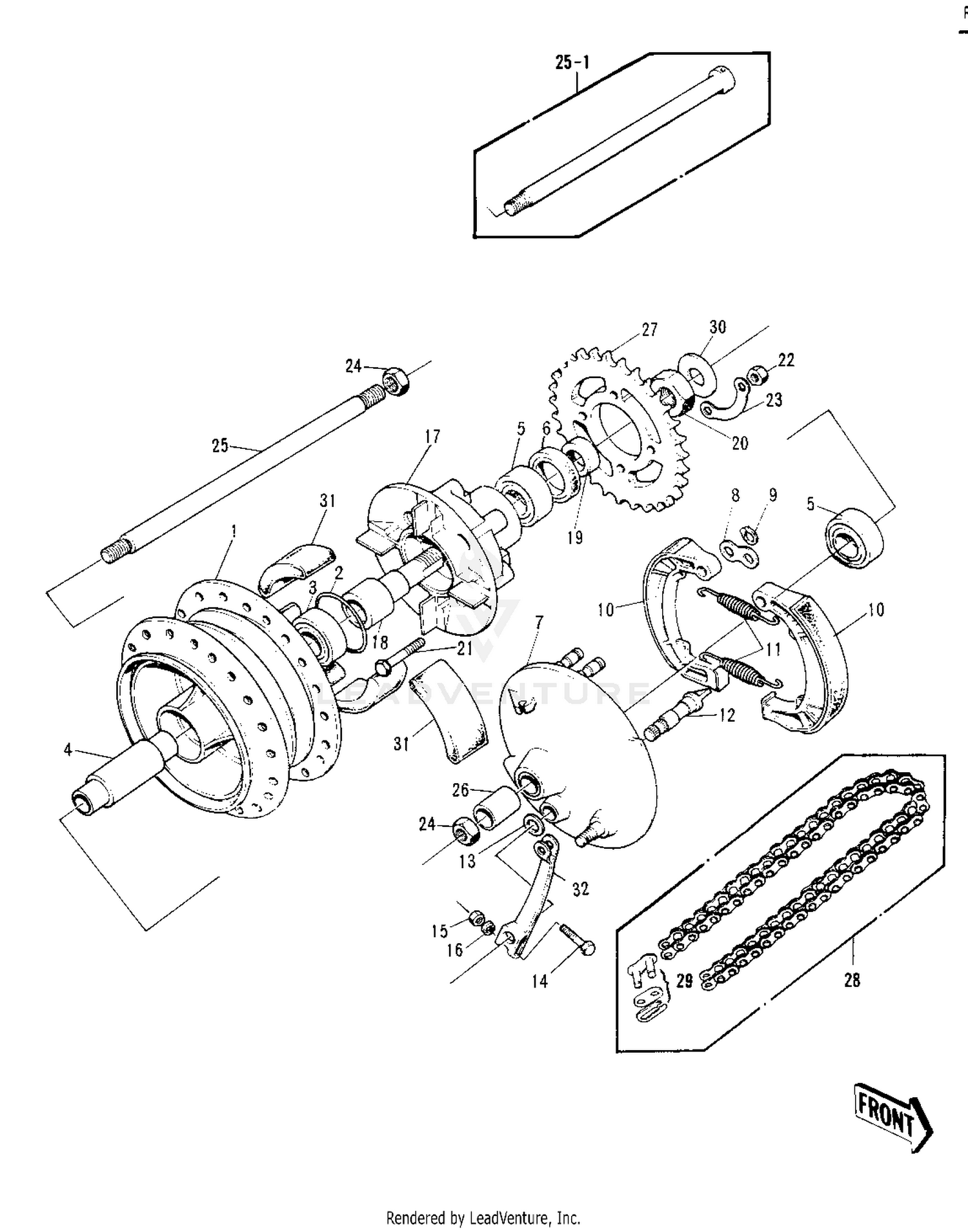

| Ref | Part Number | Description |
|---|
| 1 |
41034-5001 |
DRUM-ASSY,RR BRK Price: $488.30 |
| 2 |
671B2560 |
O RING,60MM Price: $6.91 |
| 3 |
601B6205 |
BEARING BALL #6205 Price: $19.57 |
| 4 |
42010-008 |
SPACER RR HUB BEARING Price: $8.15 |
| 5 |
601B6205Z |
BEARING BALL #6205Z Price: $23.16 |
| 6 |
92049-1287 |
SEAL-OIL This part replaces 92052-006. Price: $13.08 |
| 8 |
41045-007 |
WASHER,BRAKE SHOE Price: $5.21 |
| 9 |
480J1400 |
CIRCLIP-TYPE-C,14MM Price: $5.00 |
| 10 |
41048-1122 |
SHOE-BRAKE This part replaces 42019-003. Price: $47.81 |
| 11 |
41049-003 |
SPRING BRAKE SHOE Price: $3.66 |
| 12 |
42026-015 |
CAM SHAFT,REAR BRAKE Price: $39.41 |
| 13 |
41051-001 |
SEAL,BRAKE CAM Price: $4.26 |
| 14 |
112G0640 |
BOLT-UPSET,6X40 Price: $3.42 |
| 15 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 16 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 18 |
42036-006 |
SLEEVE REAR AXLE Price: $23.81 |
| 19 |
42037-006 |
COLLER RR AXLE SLEEVE Price: $25.85 |
| 20 |
42045-006 |
NUT SLEEVE Price: $11.06 |
| 21 |
92003-087 |
BOLT-REAR SPROCKET Price: $10.11 |
| 22 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 23 |
92088-005 |
WASHER SPROCKET LOCK Price: $6.24 |
| 26 |
42032-008 |
COLLAR REAR HUB R.H Price: $20.18 |
| 27 |
42041-102 |
REAR SPROCKET 43T Price: $120.97 |
| 29 |
92058-008 |
CHAIN JOINT 530 Price: $8.31 |
| 30 |
42046-009 |
WASHER,17.3X32X3.2 Price: $7.84 |
| 31 |
42014-008 |
DAMPER REAR HUB SHOCK Price: $45.04 |
