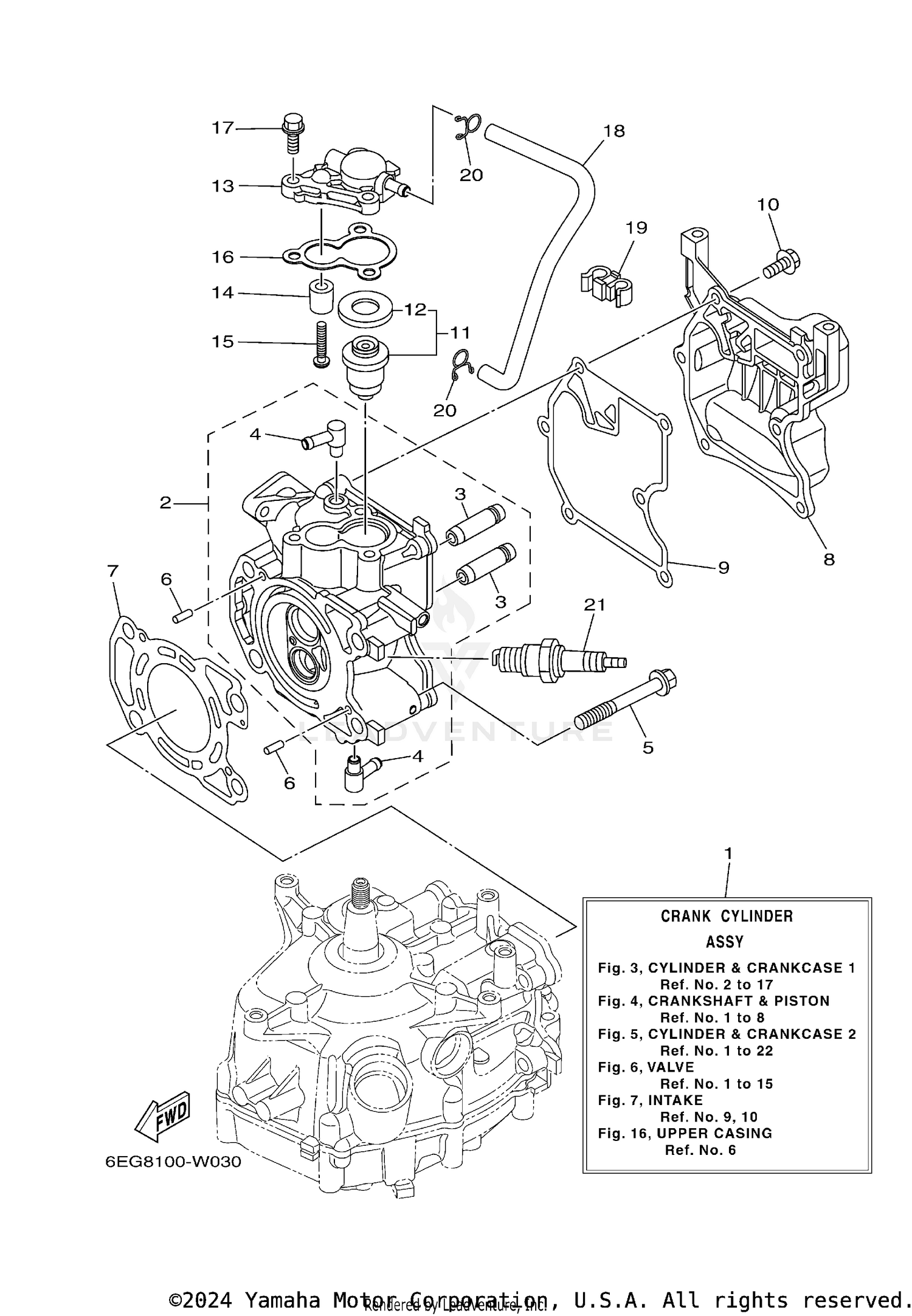

| Ref | Part Number | Description |
|---|
| 1 |
99999-04630-00 |
CRANK CYLINDER ASSY This part replaces 6EG-WE090-04-1S. Price: $588.99 |
| 2 |
6EG-WE110-00-1S |
CYLINDER HEAD ASSY Price: $197.90 |
| 3 |
6EE-E1133-10-00 |
GUIDE, VALVE 1 Price: $22.40 |
| 4 |
676-11372-00-00 |
NIPPLE, HOSE Price: $15.50 |
| 5 |
90105-08M36-00 |
BOLT, WASHER BASED Price: $7.49 |
| 6 |
93604-10M03-00 |
PIN, DOWEL This part replaces 93604-12M07-00. Price: $5.20 |
| 8 |
6EG-E1191-00-00 |
COVER, CYLINDER HEAD 1 Price: $62.25 |
| 10 |
90105-06039-00 |
BOLT, FLANGE Price: $3.35 |
| 11 |
66M-12411-01-00 |
THERMOSTAT Price: $45.60 |
| 12 |
688-12412-00-00 |
SEAL, THERMOSTAT Price: $5.65 |
| 13 |
6EG-E2413-00-1S |
COVER, THERMOSTAT Price: $37.60 |
| 14 |
6G8-11325-00-00 |
ANODE Price: $3.60 |
| 15 |
98580-05525-00 |
SCREW, PAN HEAD This part replaces 97880-05025-00. Price: $2.00 |
| 16 |
67D-12414-A0-00 |
GASKET, COVER Price: $6.30 |
| 17 |
90119-06MA2-00 |
BOLT, WITH WASHER Price: $3.20 |
| 18 |
90445-09808-00 |
HOSE (L240) Price: $7.15 |
| 19 |
90464-09013-00 |
CLAMP Price: $4.15 |
| 20 |
90467-09M09-00 |
CLIP Price: $1.15 |
