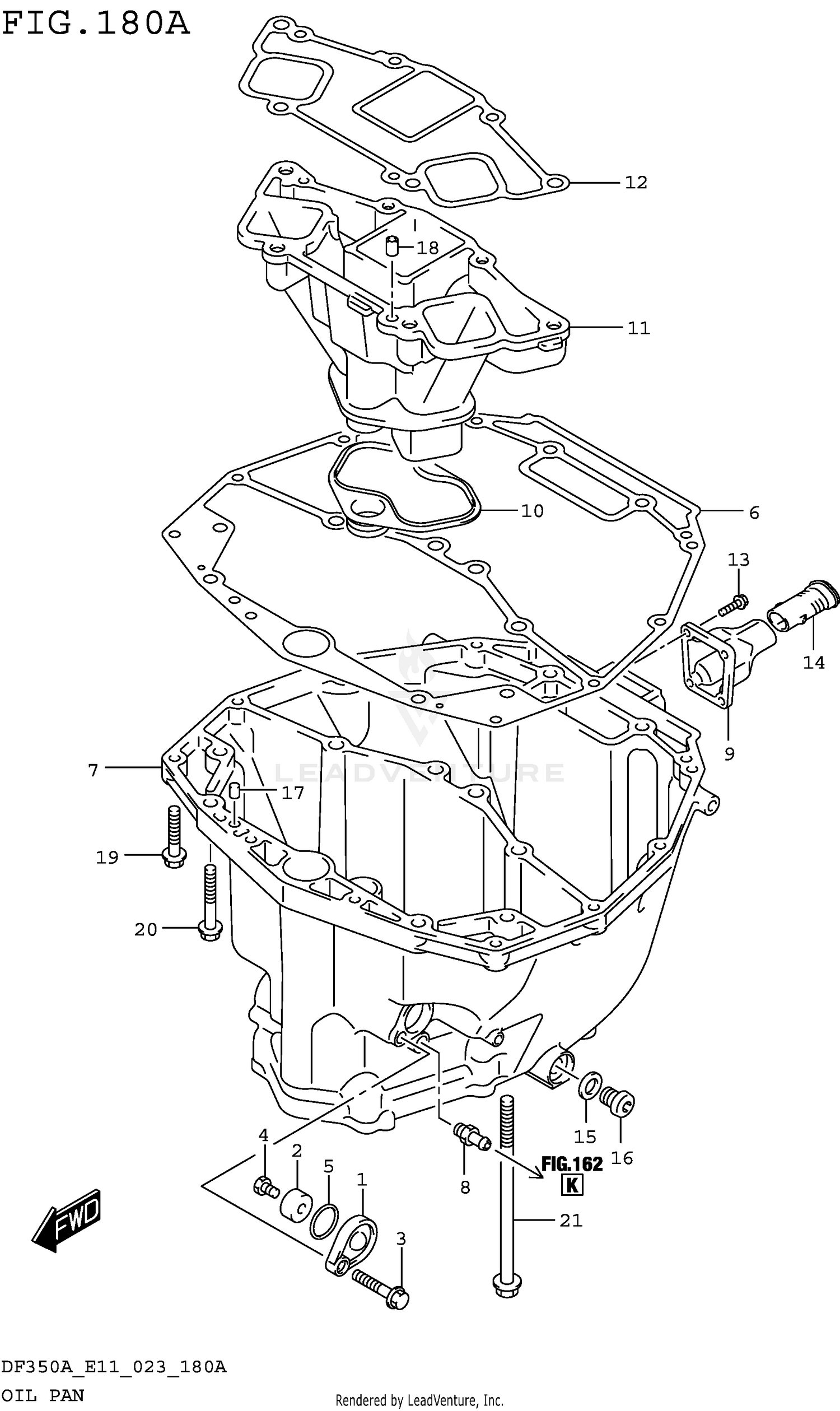

OIL PAN
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11261-93J10 | COVER PROTECTION ANODE Price: Call Us |
| 3 | 29103-93J30 | BOLT Price: Call Us |
| 4 | 09128-06094 | BOLT (6X14) Price: Call Us |
| 5 | 09280-22019 | O RING (D:1.9 ID:21.8) Price: Call Us |
| 6 | 11489-98L00 | GASKET OIL PAN Price: Call Us |
| 8 | 11591-98L00 | UNION OIL PAN Price: Call Us |
| 10 | 14154-93J02 | SEAL EXHAUST TUBE Price: Call Us |
| 11 | 14211-98L00 | TUBE EXHAUST Price: Call Us |
| 12 | 14212-98L00 | GASKET EXHAUST TUBE Price: Call Us |
| 13 | 29116-93J00 | BOLT (6X20) Price: Call Us |
| 14 | 11435-98L01 | PIPE EXHAUST RELEASE Price: Call Us |
| 15 | 09168-12012 | GASKET (12.5X20X2.5) Price: Call Us |
| 16 | 09248-12009 | PLUG (12X18.65) Price: Call Us |
| 17 | 09202-08006 | PIN (8X12) Price: Call Us |
| 18 | 09202-08006 | PIN (8X12) Price: Call Us |
| 19 | 09116-08128 | BOLT (8X40) Price: Call Us |
| 20 | 09116-10176 | BOLT (10X44) Price: Call Us |
