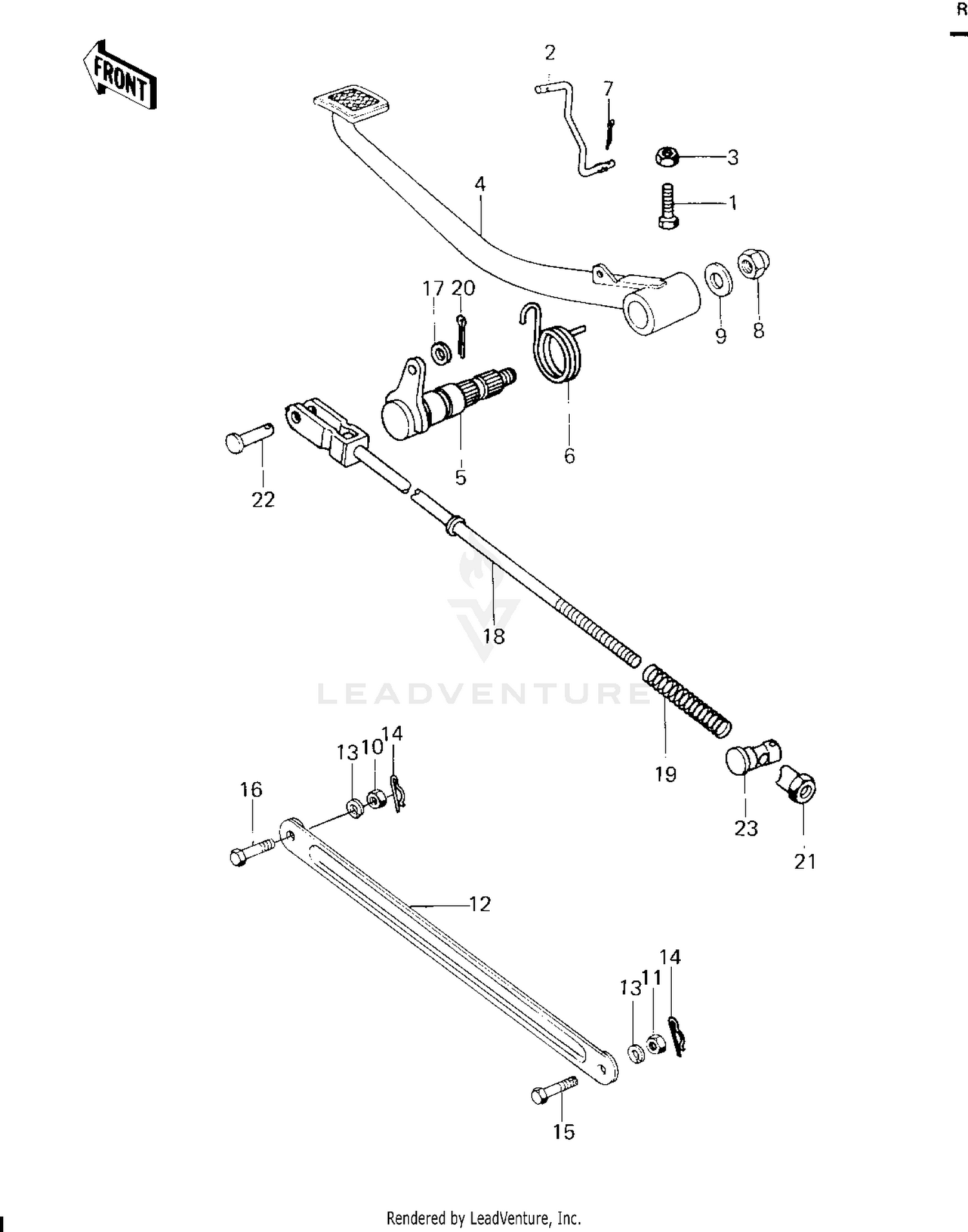

| Ref | Part Number | Description |
|---|
| 1 |
112BA0620 |
BOLT-UPSET This part replaces 112G0620. Price: $2.28 |
| 2 |
27012-1003 |
HOOK,BRAKE SWITCH Price: $5.26 |
| 3 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 4 |
43001-1009 |
PEDAL BRAKE Price: $200.73 |
| 5 |
43004-012 |
SHAFT,BRAKE PEDAL Price: $89.86 |
| 6 |
43005-022 |
SPRING,BRAKE PEDAL Price: $8.87 |
| 7 |
550D1610 |
PIN COTTER 1.6X10 Price: $2.93 |
| 8 |
92019-013 |
NUT,CAP AND LOCK,8MM Price: $14.88 |
| 9 |
92022-1561 |
WASHER,8.5X20X1.6 Price: $4.31 |
| 10 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 11 |
315AA1000 |
NUT-HEX-FINE,10MM This part replaces 315B1000. Price: $0.59 |
| 12 |
43007-027 |
TORQUE LINK-REAR BRK Price: $27.18 |
| 13 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 14 |
554DA0800 |
PIN-SNAP This part replaces 554A0800. Price: $1.36 |
| 15 |
92003-034 |
BOLT HEX HEAD 10MM Price: $13.21 |
| 16 |
92151-1876 |
BOLT,10X29 This part replaces 92003-096. Price: $10.72 |
| 17 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 18 |
43011-009 |
ROD-BRAKE Price: $23.31 |
| 19 |
43012-001 |
SPRING,BRAKE ROD Price: $4.65 |
| 20 |
550AA2015 |
PIN-COTTER,2.0X15 This part replaces 550D2015. Price: $1.12 |
| 21 |
92015-042 |
NUT,BRAKE ROD Price: $6.22 |
| 22 |
92043-064 |
PIN,6X17 Price: $4.69 |
