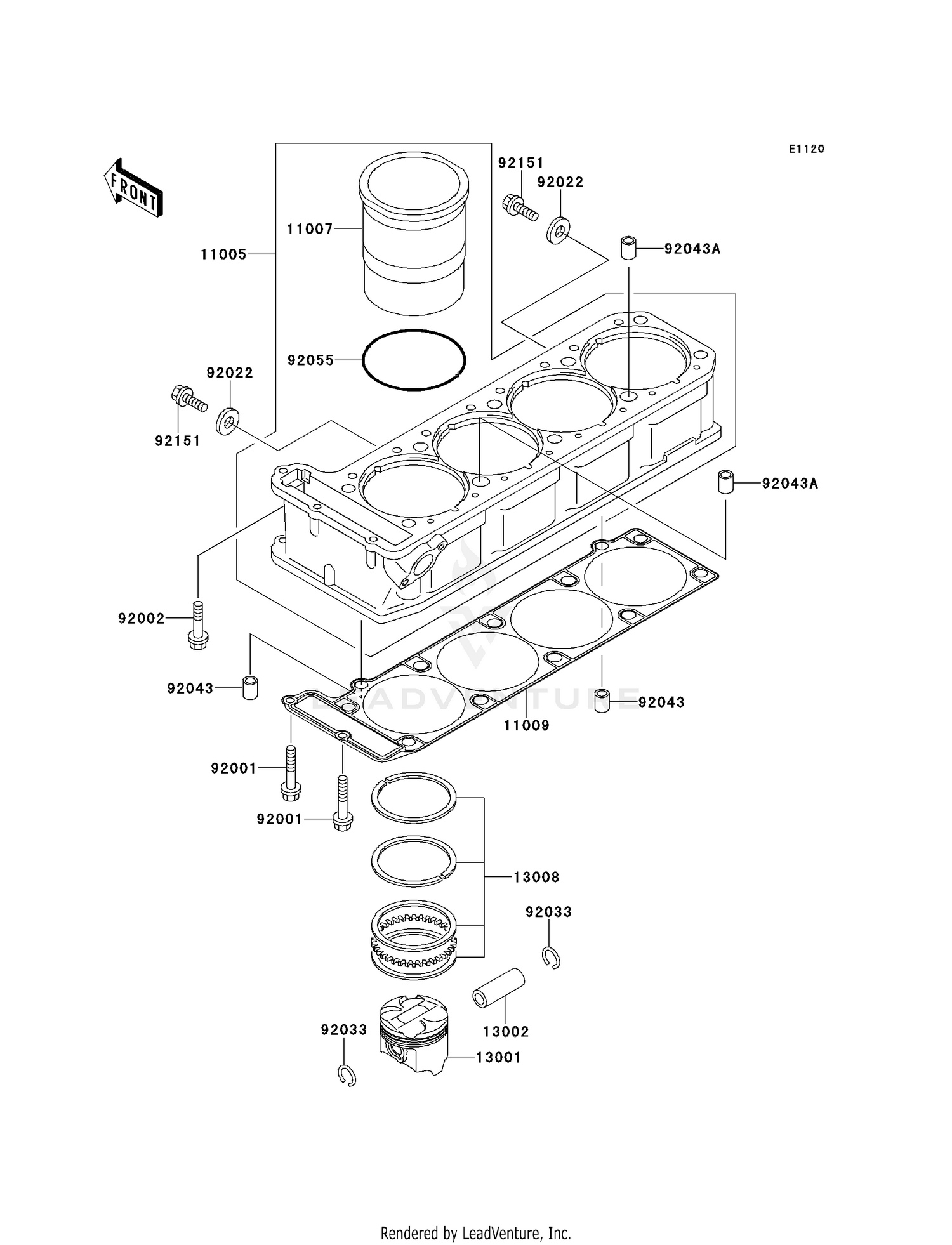

CYLINDER/PISTON(S)
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 11005 | 11005-1615 | CYLINDER-ENGINE Price: $1,120.56 |
| 11007 | 11007-1114 | LINER-CYLINDER Price: $157.86 |
| 11009 | 11009-1847 | GASKET,CYLINDER BASE Price: $35.90 |
| 13001 | 13001-1397 | PISTON-ENGINE Price: $142.53 |
| 13002 | 13002-1058 | PIN-PISTON Price: $28.34 |
| 13008 | 13008-1152 | RING-SET-PISTON Price: $76.81 |
| 92001 | 92001-1899 | BOLT,6X38 Price: $4.39 |
| 92002 | 92002-1138 | BOLT,6X30 Price: $4.34 |
| 92022 | 92022-304 | WASHER,6.2X11X1 Price: $3.65 |
| 92033 | 92033-1099 | RING-SNAP,20.5X1.2 Price: $0.62 |
| 92043 | 92043-1264 | PIN,8.2X10X14 Price: $0.64 |
| 92043A | 92043-1279 | PIN,11.5X14X14 Price: $5.00 |
| 92055 | 92055-1465 | RING-O,82.6X2.4 Price: $6.56 |
