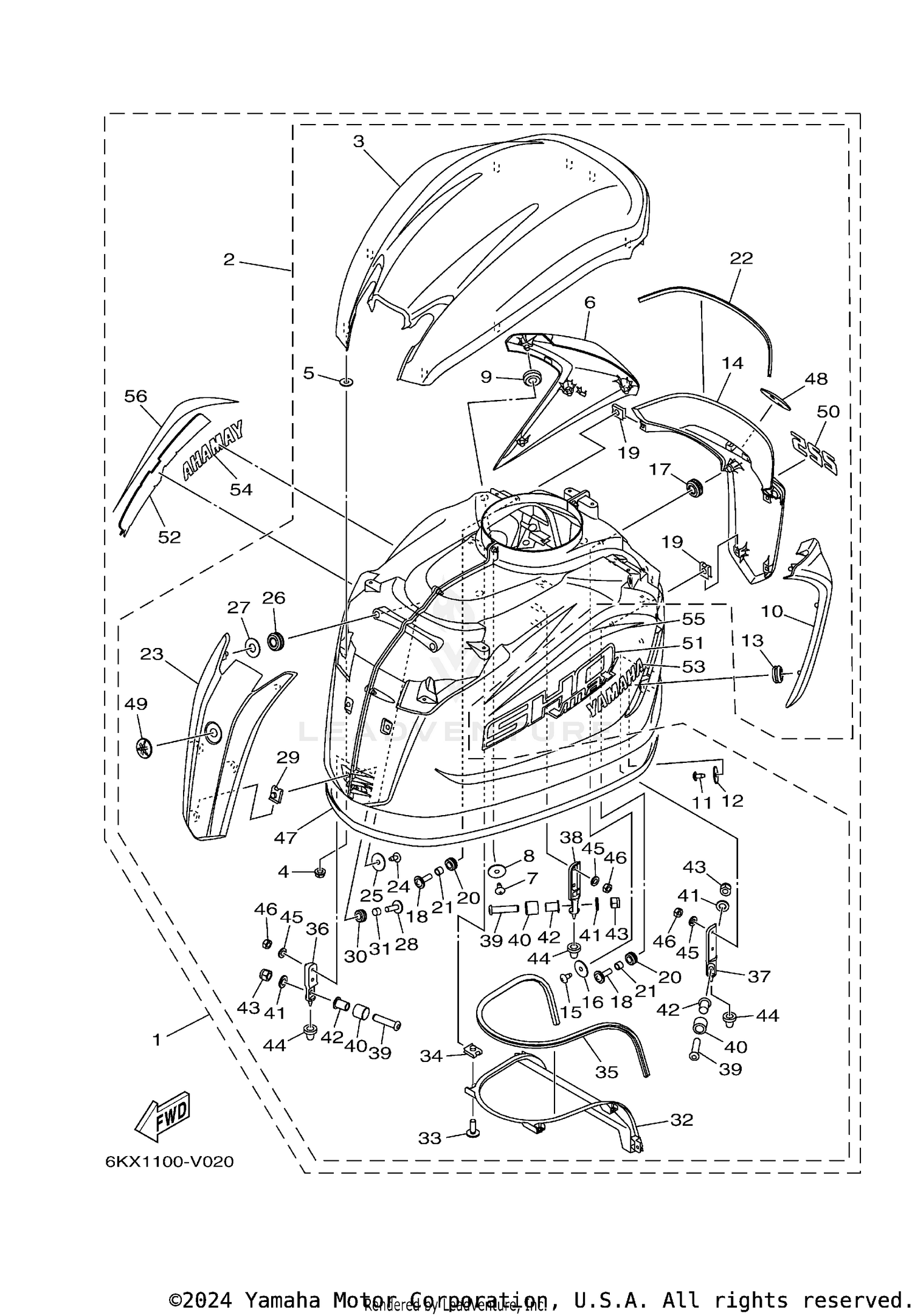

| Ref | Part Number | Description |
|---|
| 1 |
6KX-42610-01-00 |
TOP COWLING ASSY Price: $2,325.45 |
| 4 |
90179-06M28-00 |
NUT Price: $4.75 |
| 5 |
6CB-42545-00-00 |
WASHER, PLAIN Price: $4.50 |
| 7 |
97780-50012-00 |
SCREW, TAPPING(4HP) Price: $3.55 |
| 8 |
90201-053R1-00 |
WASHER, PLATE Price: $1.15 |
| 9 |
90480-16009-00 |
GROMMET Price: $6.75 |
| 11 |
97780-50012-00 |
SCREW, TAPPING(4HP) Price: $3.55 |
| 12 |
90201-053R1-00 |
WASHER, PLATE Price: $1.15 |
| 13 |
90480-16009-00 |
GROMMET Price: $6.75 |
| 15 |
97780-50012-00 |
SCREW, TAPPING(4HP) Price: $3.55 |
| 16 |
90201-053R1-00 |
WASHER, PLATE Price: $1.15 |
| 17 |
90480-16009-00 |
GROMMET Price: $6.75 |
| 18 |
90159-06053-00 |
SCREW, WITH WASHER Price: $4.60 |
| 19 |
90183-061A8-00 |
NUT, SPRING Price: $3.15 |
| 20 |
90480-13M24-00 |
GROMMET Price: $9.05 |
| 21 |
90387-06M43-00 |
COLLAR Price: $8.85 |
| 24 |
97780-50012-00 |
SCREW, TAPPING(4HP) Price: $3.55 |
| 25 |
90201-053R1-00 |
WASHER, PLATE Price: $1.15 |
| 26 |
90480-16009-00 |
GROMMET Price: $6.75 |
| 27 |
90201-106M5-00 |
WASHER, PLATE Price: $11.49 |
| 28 |
90159-06053-00 |
SCREW, WITH WASHER Price: $4.60 |
| 29 |
90183-061A8-00 |
NUT, SPRING Price: $3.15 |
| 30 |
90480-13M24-00 |
GROMMET Price: $9.05 |
| 31 |
90387-06M43-00 |
COLLAR Price: $8.85 |
| 33 |
90159-06053-00 |
SCREW, WITH WASHER Price: $4.60 |
| 34 |
90183-061A8-00 |
NUT, SPRING Price: $3.15 |
| 39 |
90111-08078-00 |
BOLT,HEX. SOCKET BUTTON Price: $7.05 |
| 40 |
90387-10094-00 |
COLLAR Price: $5.65 |
| 41 |
92990-08600-00 |
WASHER, PLATE Price: $2.70 |
| 42 |
90387-08M45-00 |
COLLAR Price: $4.72 |
| 43 |
95780-08300-00 |
NUT, FLANGE Price: $11.80 |
| 44 |
6AW-42663-01-00 |
DAMPER 2 Price: $2.30 |
| 45 |
92995-06100-00 |
WASHER, SPRING This part replaces 92990-06100-00. Price: $3.45 |
| 46 |
95380-06600-00 |
NUT, HEXAGON Price: $4.80 |
| 47 |
6CB-42628-00-00 |
SEAL Price: $182.40 |
| 48 |
6KN-42697-00-00 |
TUNING FORK MARK Price: $52.10 |
