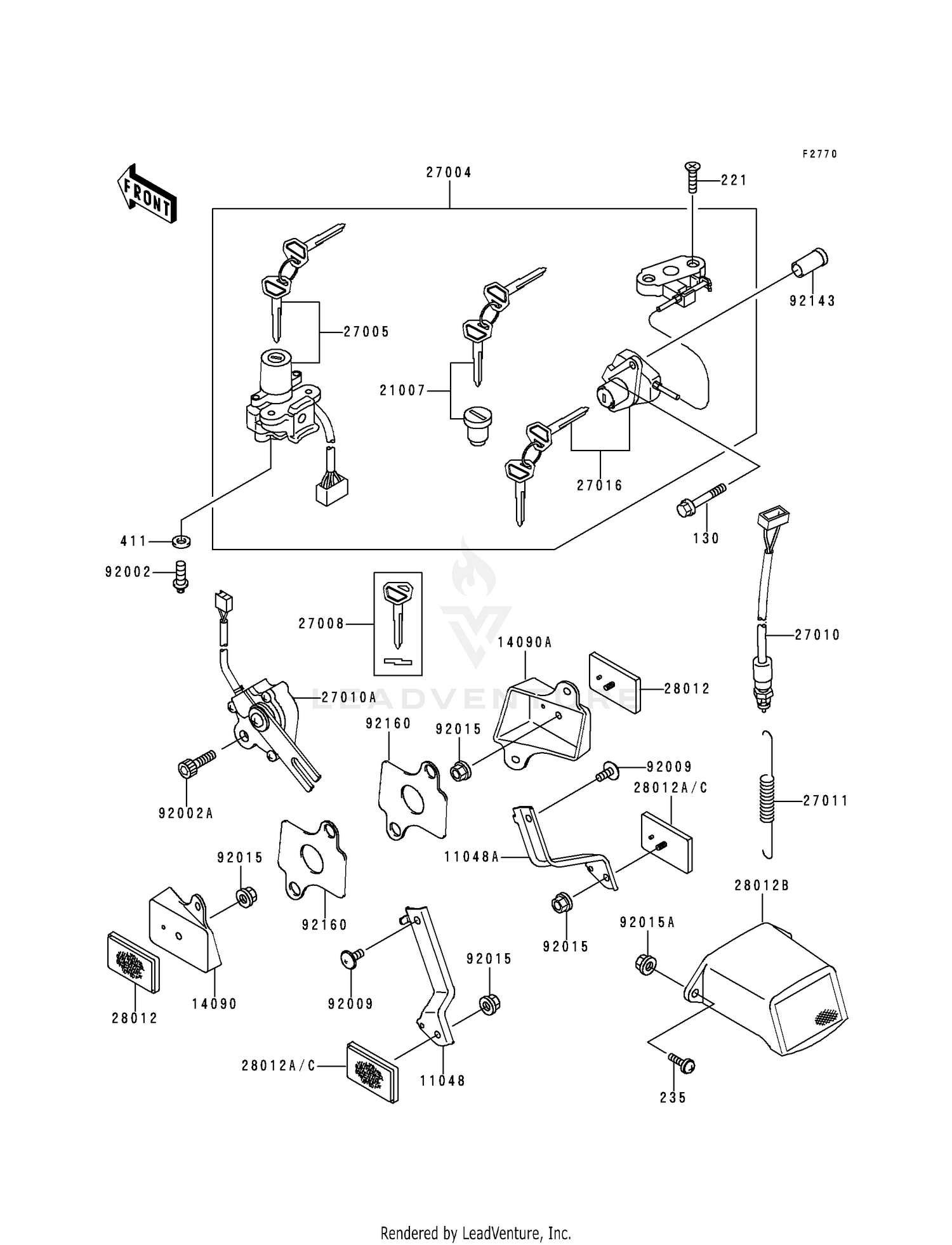

| Ref | Part Number | Description |
|---|
| 130 |
92002-1054 |
BOLT,6X55 This part replaces 130J0655. Price: $5.24 |
| 221 |
221AA0628 |
SCREW-CSK-CROS,6X28 This part replaces 221B0628. Price: $2.28 |
| 235 |
235C0620 |
SCREW-PAN-WP-CROS Price: $3.72 |
| 411 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 411E0600. Price: $1.31 |
| 11048 |
11048-1942 |
BRACKET,REFLECTOR,RR, Price: $17.79 |
| 11048A |
11048-1943 |
BRACKET,REFLECTOR,RR, Price: $18.79 |
| 14090 |
14090-1377 |
COVER,REFLECTOR,FR,LH Price: $18.12 |
| 14090A |
14090-1378 |
COVER,REFLECTOR,FR,RH Price: $18.12 |
| 21007 |
21007-5015 |
ROTOR,LOCK,TANK CAP This part replaces 21007-5035. Price: $59.11 |
| 27004 |
27004-5473 |
SWITCH-ASSY Price: $488.87 |
| 27005 |
27005-1180 |
SWITCH-ASSY-IGNITION Price: $259.52 |
| 27010 |
27010-1479 |
SWITCH,REAR BRAKE This part replaces 27010-1093. Price: $30.06 |
| 27010A |
27010-1463 |
SWITCH,SIDE STAND This part replaces 27010-1344. Price: $117.84 |
| 27011 |
27011-011 |
SPRING-BRAKE LAMP SW Price: $8.51 |
| 27016 |
27016-5219 |
LOCK-ASSY,SEAT Price: $84.12 |
| 28012 |
28012-1003 |
REFLECTOR-REFLEX Price: $22.09 |
| 28012A |
28012-1088 |
REFLECTOR-REFLEX This part replaces 28012-1054. Price: $22.46 |
| 28012B |
28012-1066 |
REFLECTOR-REFLEX,RR Price: $35.90 |
| 92002 |
92153-0967 |
BOLT,TORX,6X16 This part replaces 92002-1333. Price: $2.61 |
| 92002A |
92002-1582 |
BOLT,FLANGED,6X25 Price: $4.69 |
| 92009 |
92009-1662 |
SCREW,6X14 Price: $3.92 |
| 92015 |
92015-1259 |
NUT,FLANGED,5MM Price: $3.92 |
| 92015A |
92015-1367 |
NUT,FLANGED,6MM Price: $3.69 |
| 92143 |
92143-1764 |
COLLAR Price: $8.89 |
